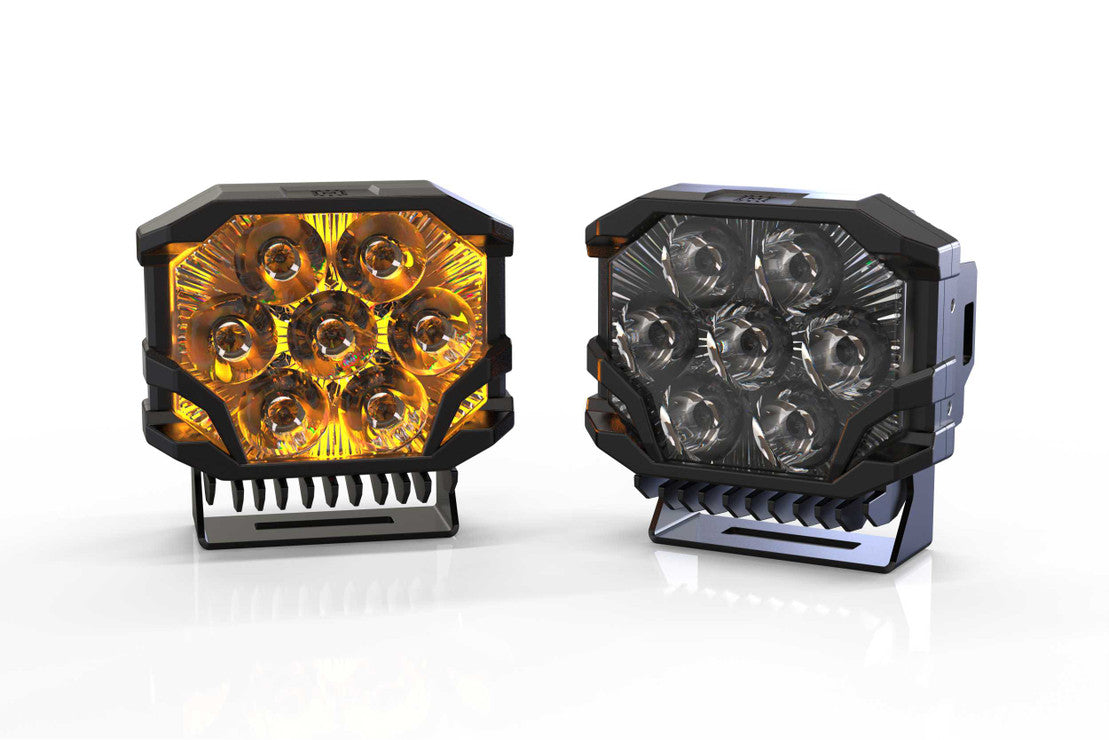

Universal Surface Mount BigBanger XL LED Light Pod

AutoLEDTech.com's universal Morimoto BigBanger extra large and extra bright LED light pod can be used for a wide variety of off-road applications as well as fog lights and are designed for easy bolt-on, plug & play installation on your vehicle. The ultra bright and rugged Morimoto BigBanger pods will easily outperform all other pods on the market including the Pro6, LP9, SS5, and the Rigid 360. They also feature an amber/orange dual-intensity backlight LEDs to illuminate the Bigbanger LED pods when the actual beams are not in use. The BigBanger LED Pod lights have a variety of beam patterns (Spot, Combo), colors (White, Yellow), and intensities (NCS, HXB) to choose from. The brackets are designed to be a simple, easy bolt-on installation for surface areas and locations on front or rear bumpers, roof racks, hoods, A-pillars, sides, fog lights, and other surfaces. The BigBanger LED pods can also be linked together to create a custom lightbar with your choice of beam patterns, output, and color combos! (See our BigBanger LED lightbars). We are so confident in this system, that it is backed by a limited lifetime warranty!

***PRODUCT LISTING IS FOR A SINGLE POD!***

Spot Beam: Maximum distance

Combo Beam: Maximum distance & width

See video or photos for info on beam patterns

Click here for the Universal mount Bigbanger LED pods installation guide

Vehicle Compatibility:

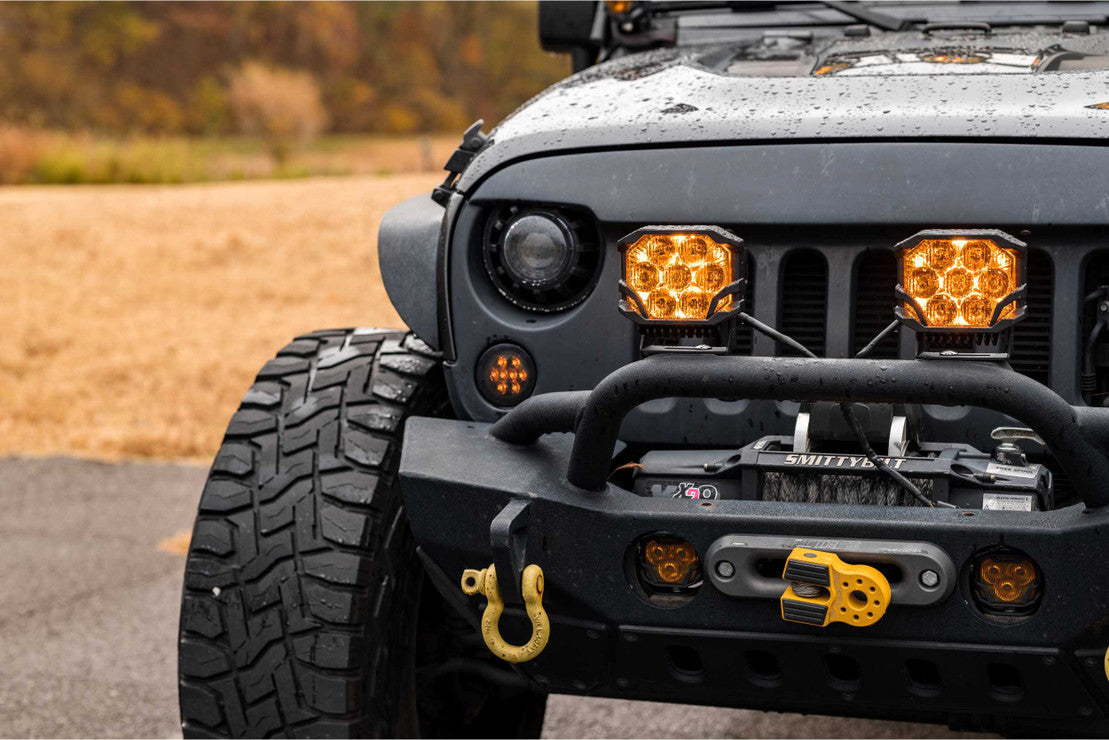

• Universal - fits any vehicle with a location to mount

Morimoto BigBanger LED Light Pods Demo Video:

 The brand new, patent-pending line of BigBanger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

Kit Includes:

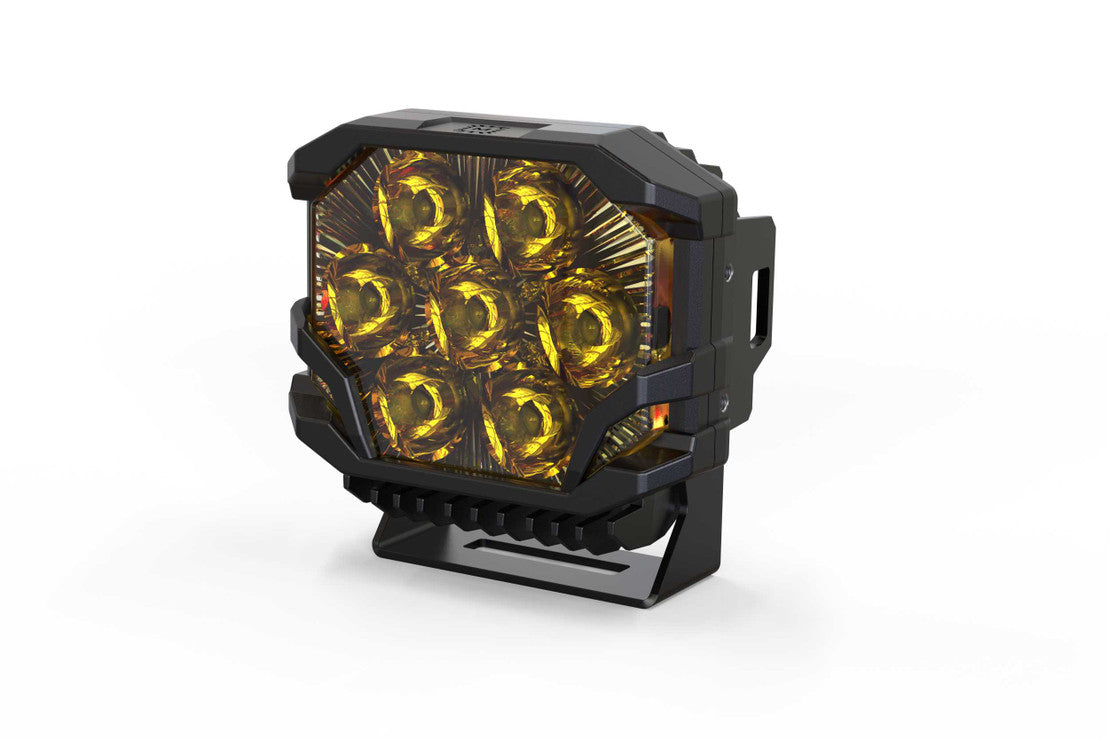

• LED POD: 1x (One Single) Morimoto BigBanger LED Pod Light

• MOUNT HARDWARE: 1 Set

• HARDWARE: Complete pack (stainless steel)

• OPTIONAL WIRING: 1 2-Pod Relay Wiring Harness or DT Connectors

• WARRANTY: Limited lifetime warranty

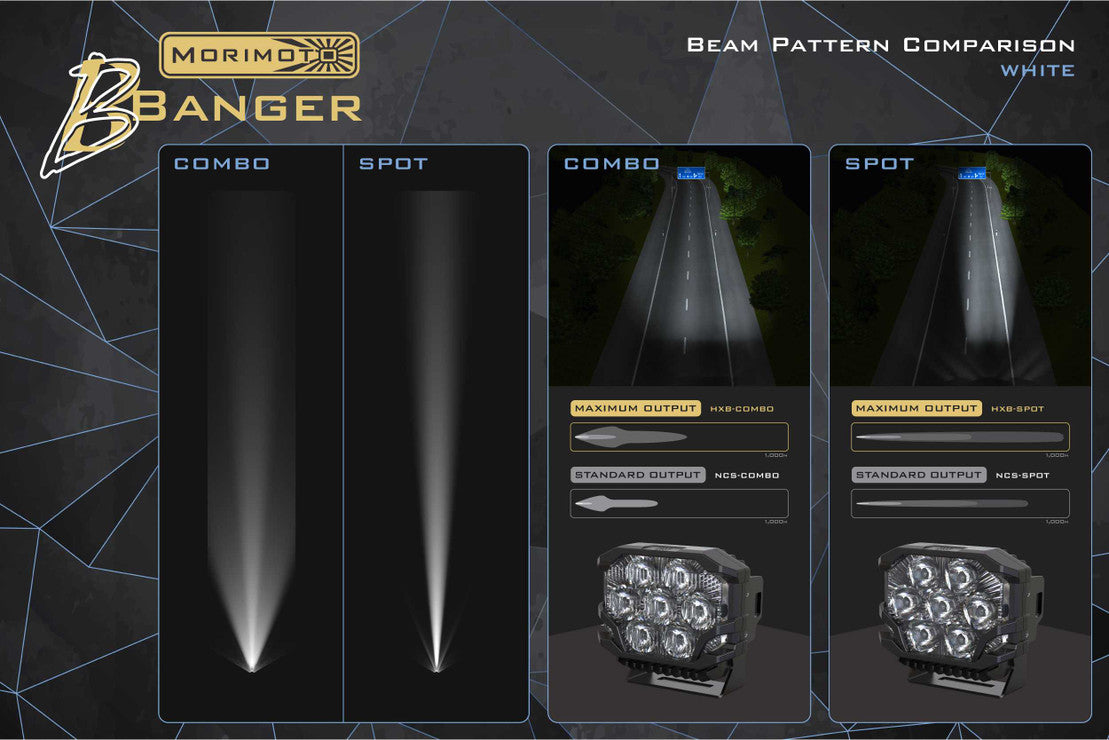

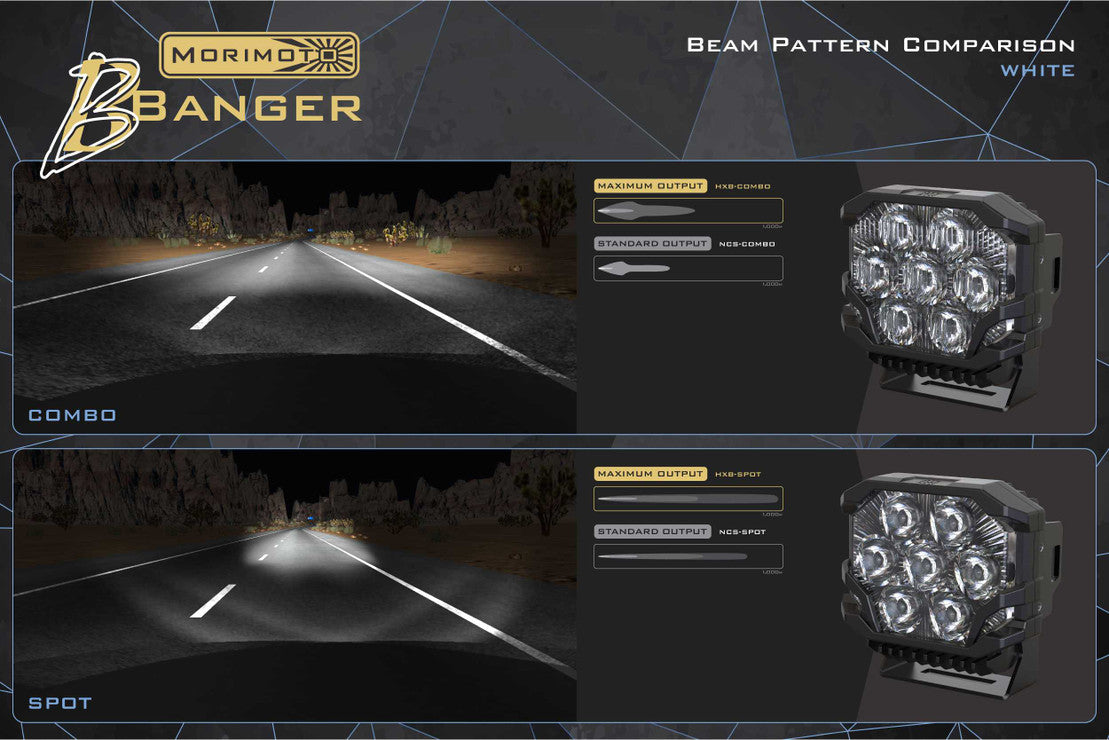

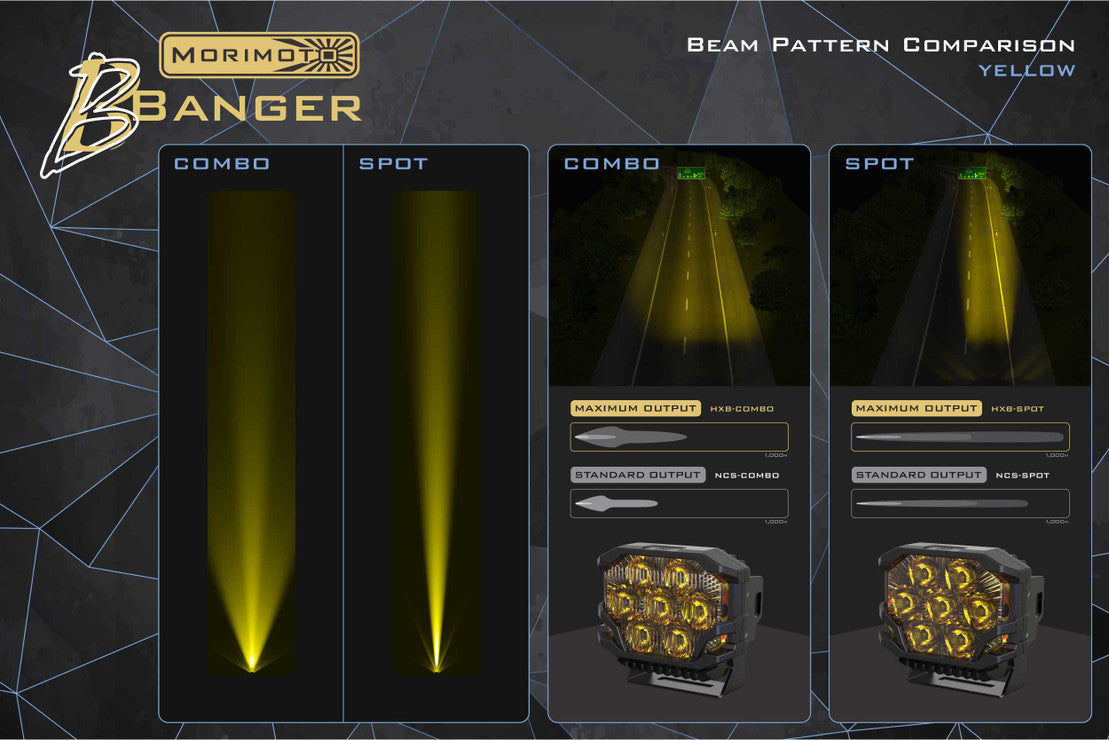

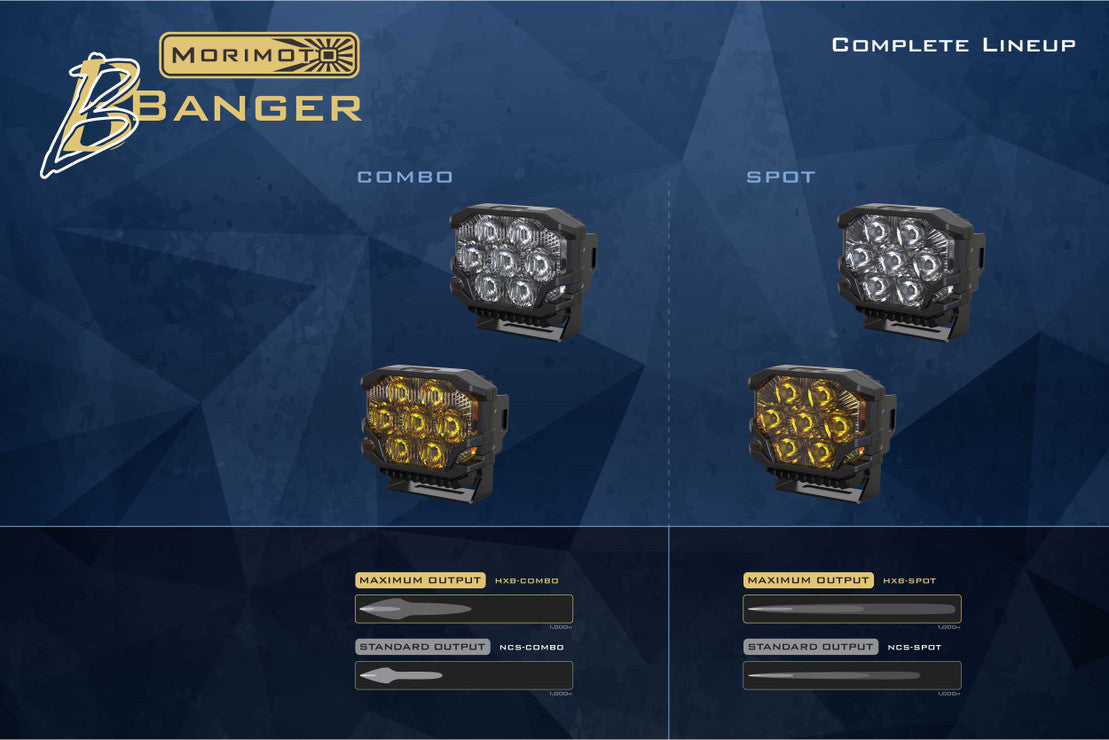

Beam Information:

HXB COMBO BEAM: Illuminates a clear path in every direction. The HXB Combo beam provides an unmatched blend of width and distance illumination making driving in the middle of nowhere far more comfortable. The powerful hot spot is complimented by a meaningful amount of both width and height, all perfectly tuned to produce a beam perfect for all-around visibility. INTENSITY (WHITE): 210,000 Cd (2,100 lux @ 10m) INTENSITY (YELLOW): 158,000 Cd (1,580 lux @ 10m) PEAK LUMENOSITY (RAW): 7,000lm

HXB SPOT BEAM: The BigBanger HXB spot is a true performance powerhouse for fast paced driving in the dark--and no matter the speed, you will never outrun its ability to penetrate up to 800 meters into the distance. Producing well-over a half million Candela, there is literally nothing else on the market that can compare to the BigBanger HXB spot. To put the power in perspective, our 4Banger HXB wide beam is the brightest pod on the market in its class, its highly impressive, and its only pushing 22,000CD. INTENSITY (WHITE): 535,000 Cd (5,350 lux @ 10m) INTENSITY (YELLOW): 400,000 Cd (4,000 lux @ 10m) PEAK LUMENOSITY (RAW): 7,000lm

NCS COMBO BEAM: Offering the same great beam pattern as the top-of-the-line HXB model, the NCS Combo will effectively illuminate the path ahead in every direction with a meaningful amount of intensity throughout. The Combo optics produce a strong hotspot, width, and vertical flood into a beam pattern that's highly useful for all around visibility. Powered with modern LEDs from Nichia, intensity wont disappoint either. INTENSITY (WHITE): 115,000 Cd (1,150 lux @ 10m) INTENSITY (YELLOW): 82,500 Cd (825 lux @ 10m) PEAK LUMENOSITY (RAW): 3,150lm

NCS SPOT BEAM: Illuminates a narrow field, but well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the BigBanger HXB Spot, the NCS model easily keeps pace with the best in the business and offers a lot of 'Banger for the buck. INTENSITY (WHITE): 425,000 Cd (4,250 lux @ 10m) INTENSITY (YELLOW): 290,000 Cd (2,900 lux @ 10m) PEAK LUMENOSITY (RAW): 3,150lm

Tech Specs:

• INTENSITY (WHITE): SEE STATS ABOVE
• INTENSITY (YELLOW): SEE STATS ABOVE
• PEAK LUMENOSITY (RAW): SEE STATS ABOVE
• INPUT VOLTAGE: 9-18V DC
• POWER: 77w (HXB) 36.5W (NCS), 3.8w (Backlight Low), 16.5w (Backlight High)
• CURRENT: HXB 4.75A @ 13.5V DC, NCS  2.7A @ 13.5V DC
• DIMENSIONS: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
• LIGHT SOURCE: HXB- 7x Osram HX Boost (Output) NCS- 7x Nichia NCSY131F or Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight)

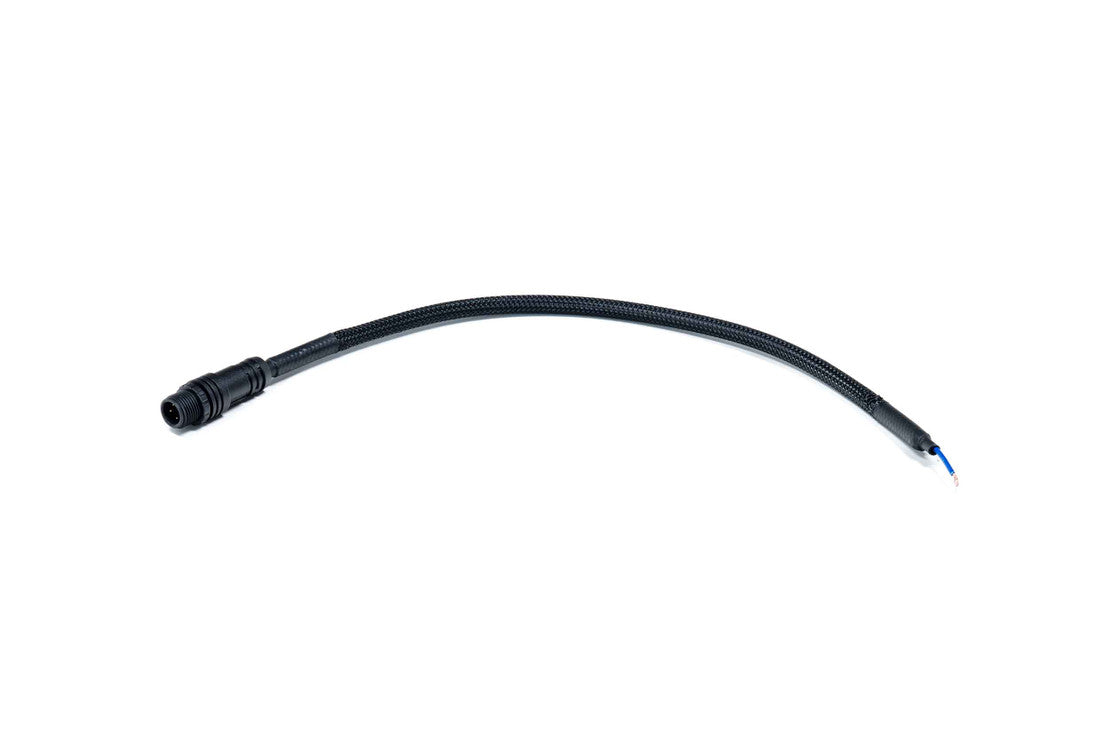

• INPUT: Integrated Deutsch DT 4-Pin w/ Pigtail
• MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP RATING: IP69K (Dust / High Pressure Water Resistant)

More Information:

OFF-ROAD REINVENTED: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The BigBanger continues that tradition. In fact, the introduction of our entire offroad lineup has been a real wake-up-call for the old players in the category to get back on their game. The brand new, patent-pending line of BigBanger off-road LED Pods were completely designed, engineered, and torture tested in the USA, and everything about them is truly next level.

VERSATILITY: The BigBanger can be mounted alone or linked together into a serious light bar. Each pod includes a universal mounting bracket for easy-install on any flat surface, like your steel bumper or the wide-variety of application-specific A-Pillar brackets we offer. The BangerBar links offer a turn-key way to bolt your Bangers together into a bespoke light bar, where you spec the color of the light. You spec the beam optics. You set the radius. And then you destroy the darkness. For more details on this, look for product listings dedicated to the BangerBars.

PERFORMANCE: Its big. Its heavy. Its expensive, but nothing else out there can compete. Out on the trail at night, the BigBanger will easily roast the Pro6, LP9, SS5, or the Rigid 360. Every element has been designed to maximize light output without compromise. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia and Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers, two beam patterns (spot or combo) and two colors (white or yellow output); there is a BigBanger to suit the most demanding performance needs.

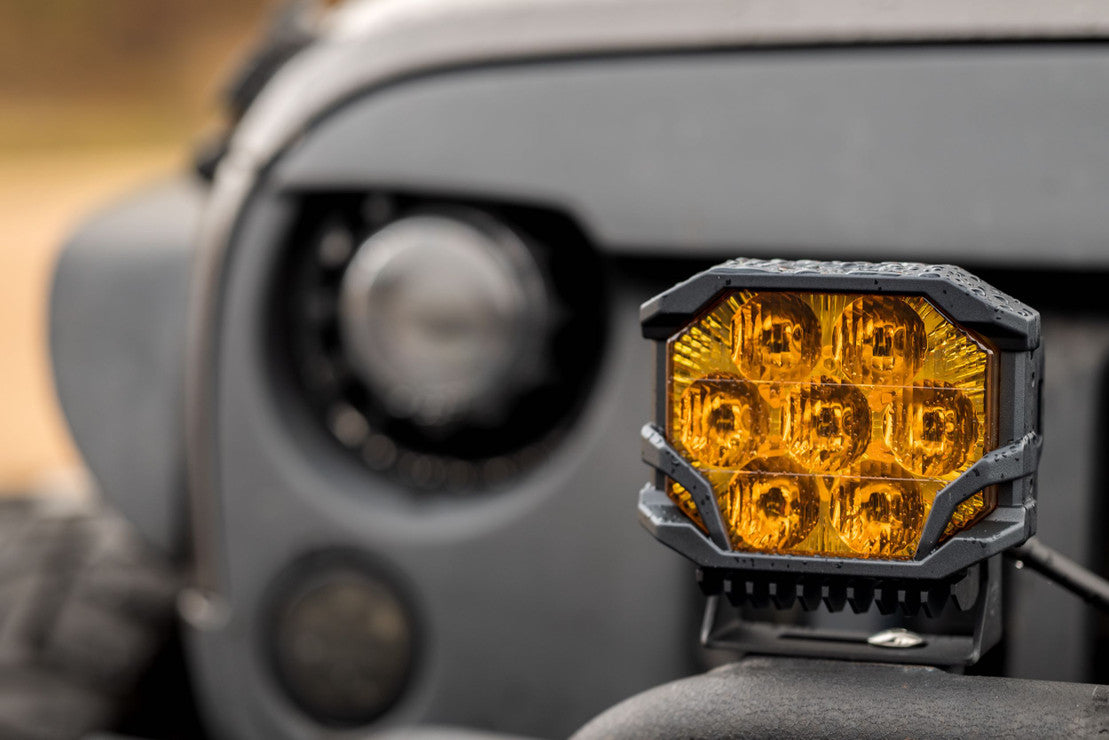

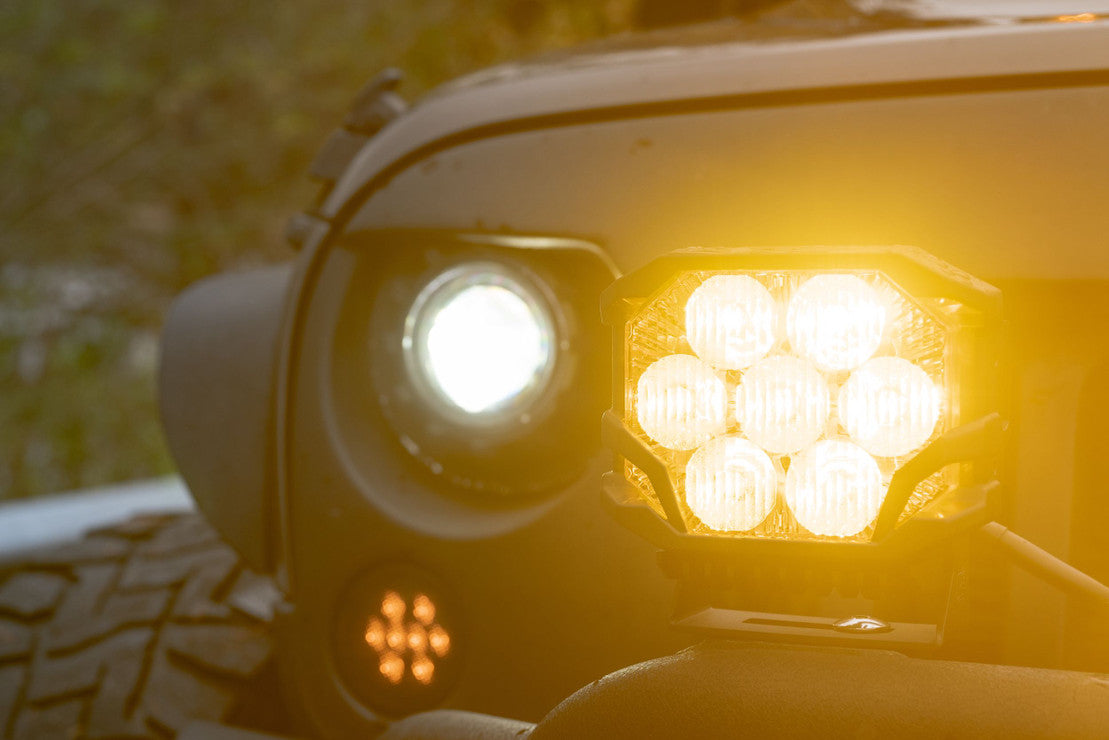

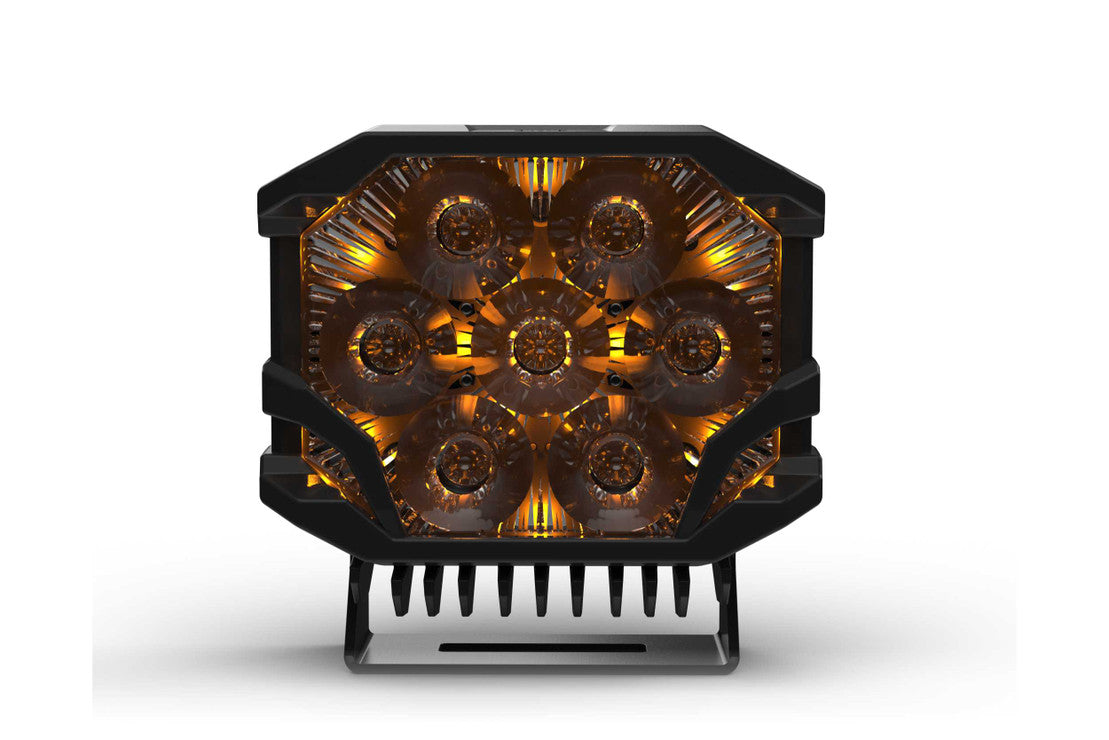

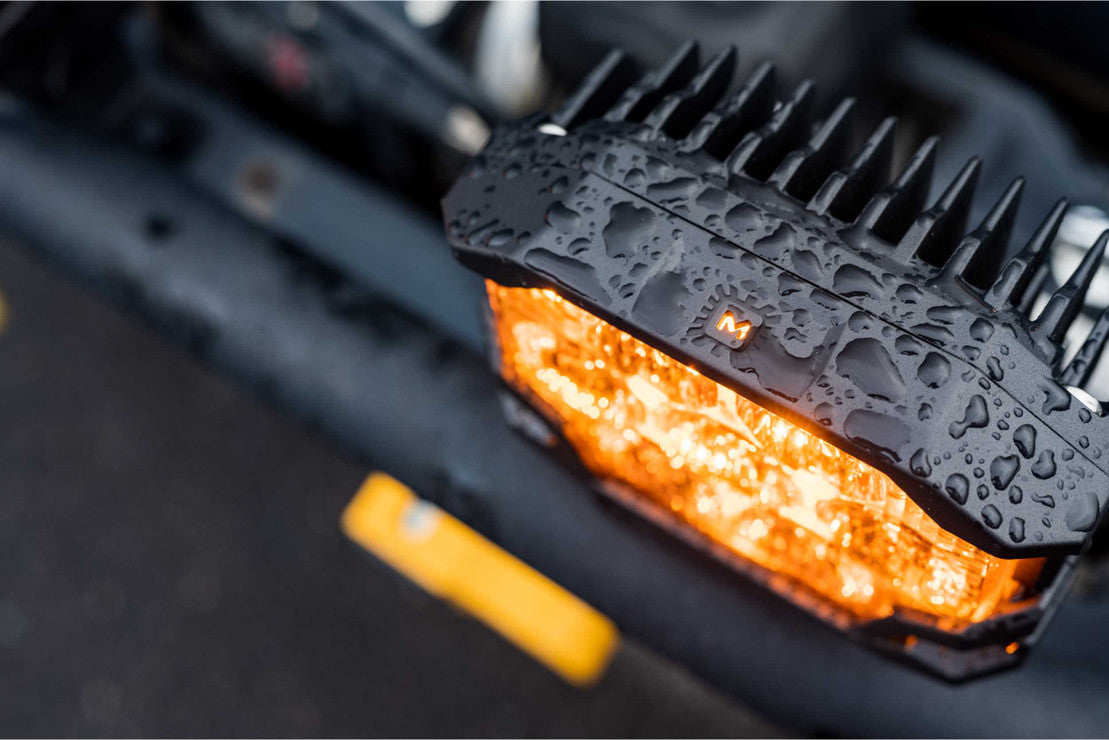

AMBER BACK LIGHT: Comes standard on all BigBanger Pods. While amber backlight does not produce any forward illumination, the daytime-setting is so bright that they will dim by 90% at night to avoid creating glare for oncoming traffic. The dual-intensity control for the backlight is integrated into our optional BigBanger-specific wire harness, which has been designed to control all modes on two pods.

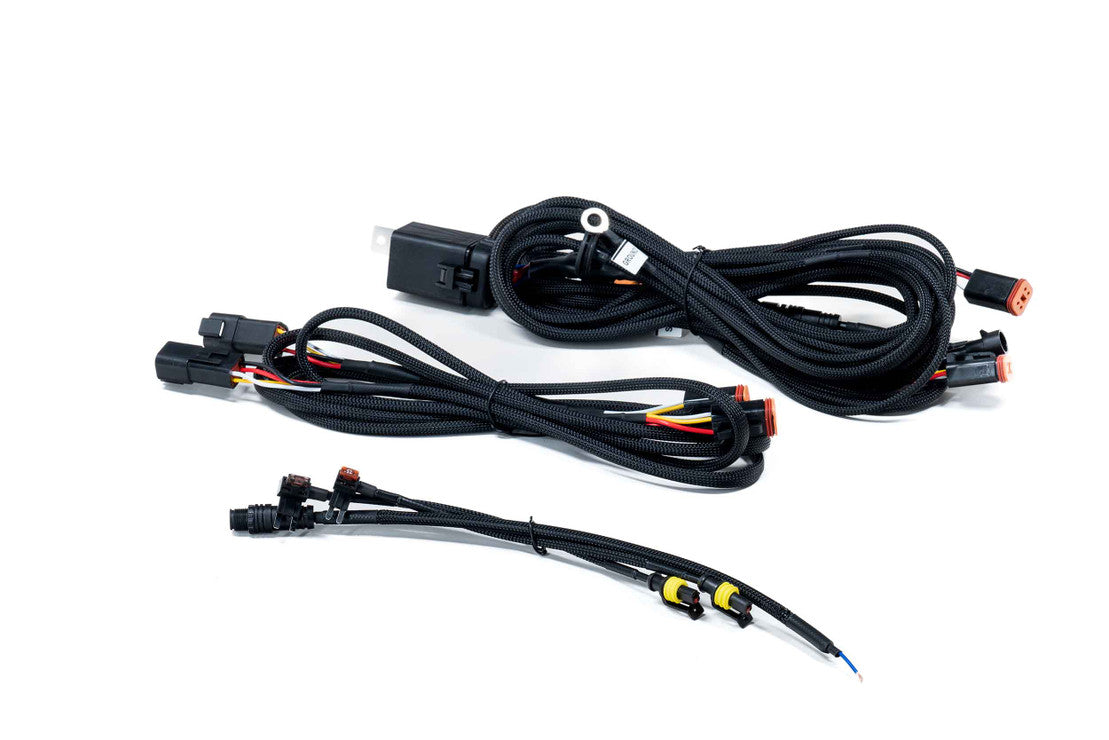

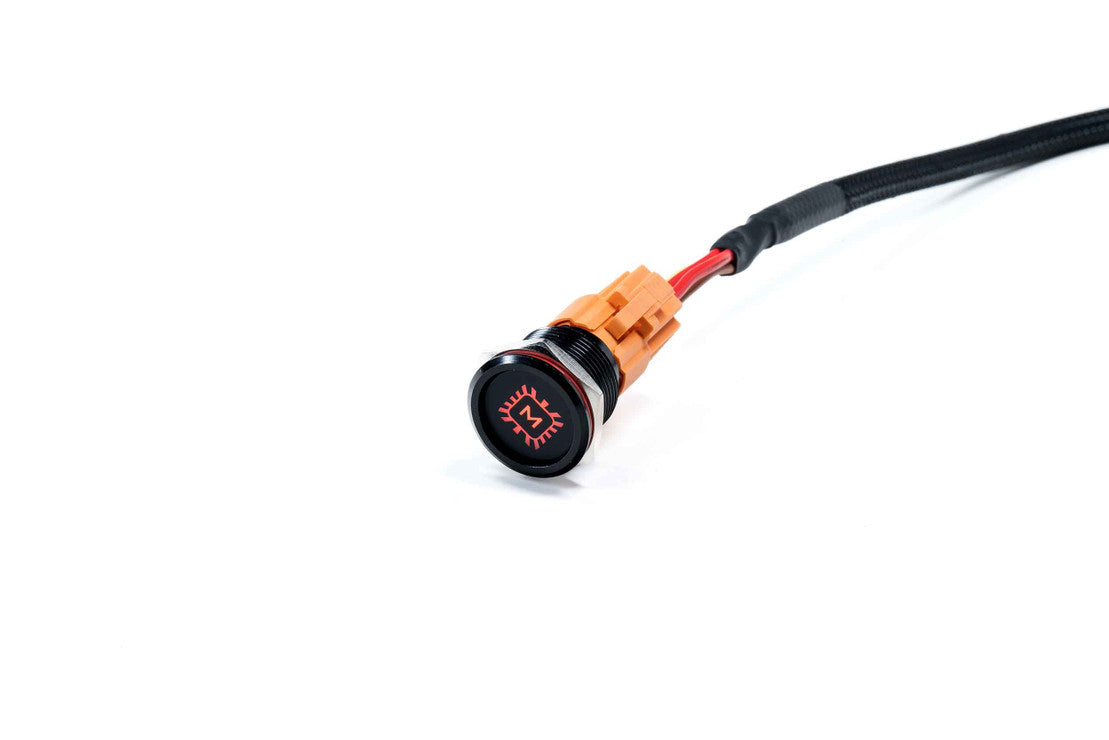

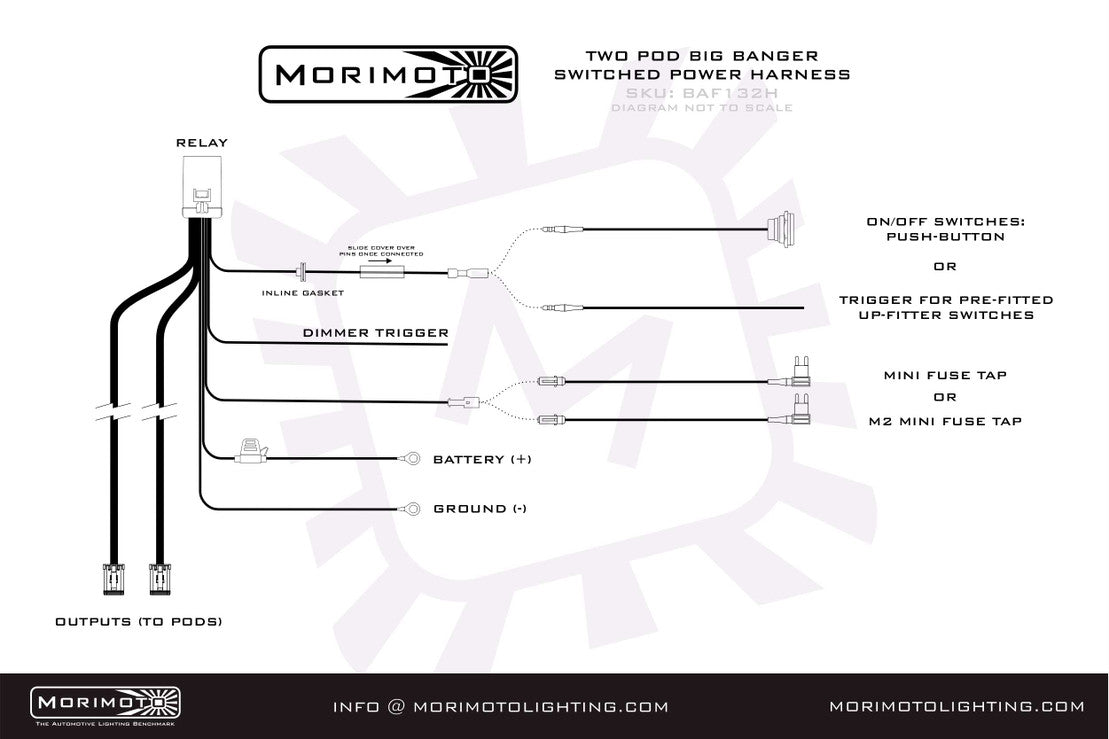

POWER UP: The Morimoto BigBanger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harnesses. This harness is designed to control the pods and their dual intensity backlight with ease. Not one component was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-4S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Amber-LED backlight.

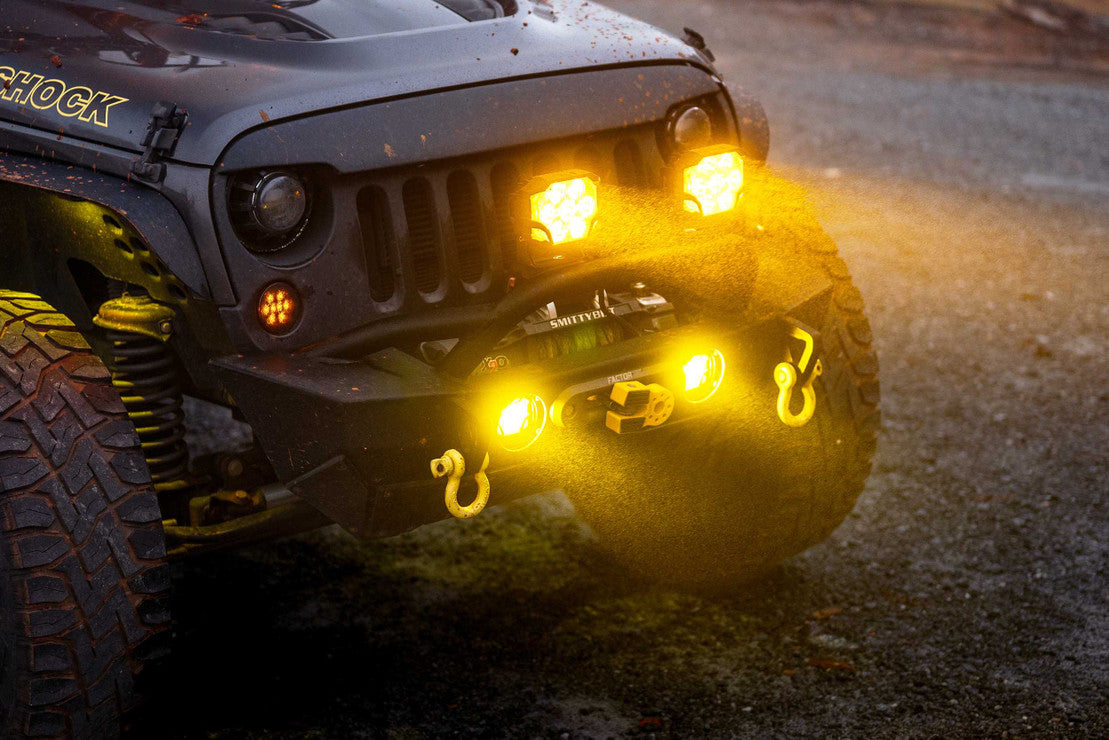

ALL WEATHER: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather)

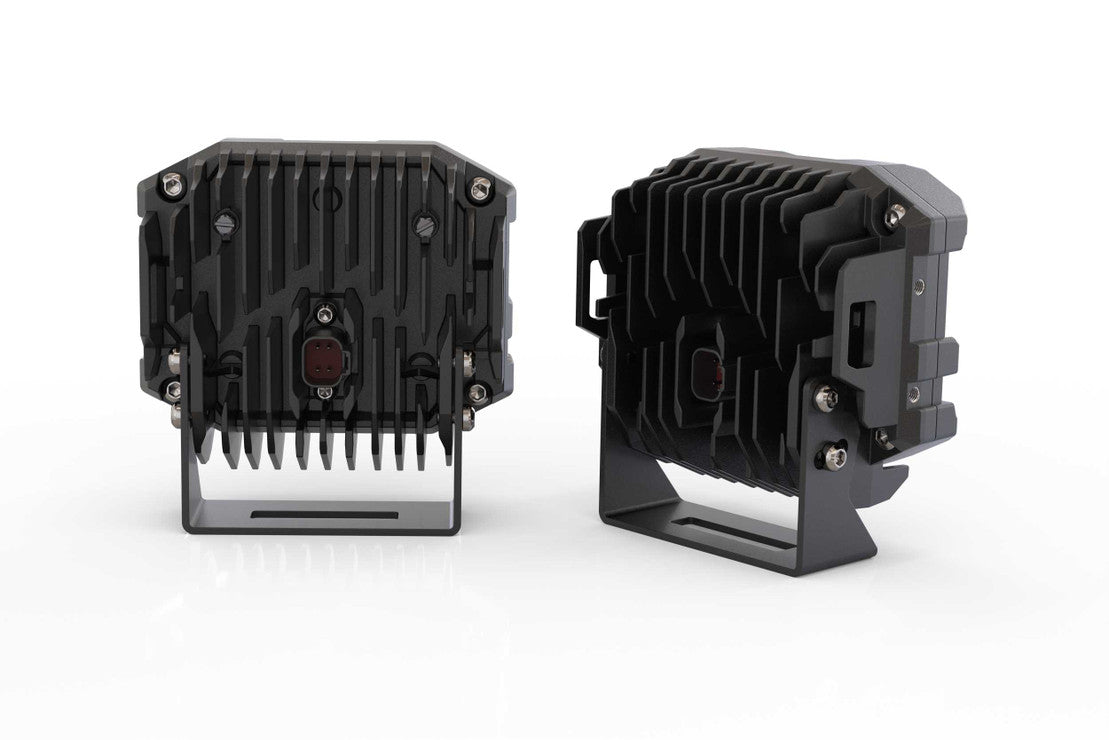

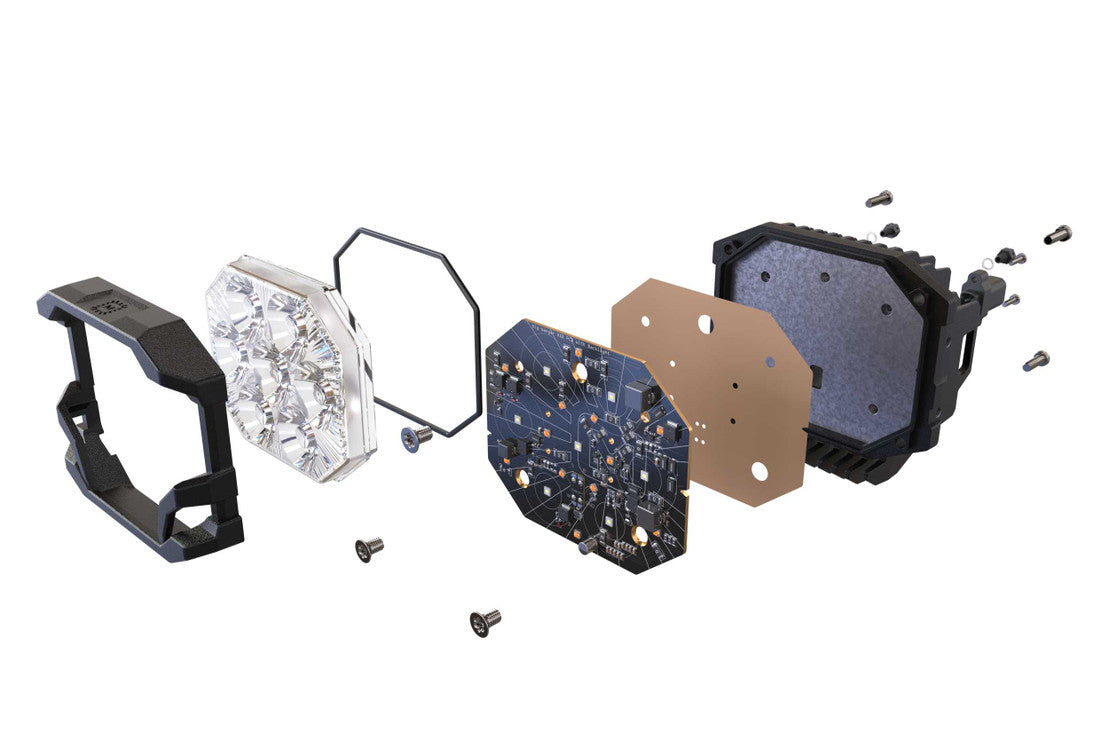

RELIABILITY: With power comes great responsibility. Extensive effort went into ensuring the reliability of the BigBangers. High power means high heat, which is why the platform is built around a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance.

Vehicle Compatibility:

FORD BRONCO: 21+ with BAF070
FORD F150: 21+ with BAF067
FORD F150: 15-20 with BAF038
FORD F150: 07-14 with BAF037
FORD RAPTOR: 17-20 with BAF038
FORD SUPER DUTY: 17+ with BAF039
FORD SUPER DUTY: 99-16 with BAF040
LEXUS GX470: 03-09 with BAF042
4RUNNER: 2010+ with BAF027
TACOMA: 05-13 with BAF019 and BAF029
TACOMA: 05-15 with BAF029
TACOMA: 16+ with BAF028
TUNDRA: 07-13 with BAF030
TUNDRA: 14-21 with BAF026
SILVERADO/SIERRA: 14-18 with BAF031
SILVERADO/SIERRA: 07-13 with BAF032
RAM 1500: 09-18 with BAF033
RAM HD: 2019+ with BAF034
WRANGLER JK: 07-18 with BAF035
WRANGLER JL: 18+ with BAF036
