The BlueGhozt Lite 2.0 bluetooth addressable LED controller is the newest controller to the flow series line up that allows you to create your own customizable addressable LED patterns and show modes, custom start-up/shutdown animations, custom turn signal patterns, NEW reverse light input trigger (create your own pattern/mode when you go into reverse), LED diagnostic, and board layouts. The controller has inputs/triggers for your vehicles startup/shutdown, turn signals, brake lights, and reverse lights. You can also sync multiple BlueGhozt controllers together in the app to control everything together at the same time. The controller uses uses the Blueghozt app on your iOS and Android device and is compatible with ws2811, ws2812b, SK6812, and similar Flow Series RGB/RGBW addressable LEDs (Neopixel/Neoprism). The Blueghozt controller supports both RGB Flow Series and RGBW Flow Series LED types and is compatible with both 5V or 12V versions of addressable LEDs. It provides similar animation capabilities as the original Ghozt module.
Connectors are included which are plug and play with many off-the-shelf addressable RGB or RGBW Flow Series LED kits. Screw terminals are included on the board for solder-less connections.
The 12v kit comes with 5-pin waterproof barrel connector outputs for use with our underbody and wheel light kits.
The 5v kit comes with 3-pin JST connector outputs and a 5v voltage regulator that connects to the controllers power input for use with our halos and DRL board kits.
In order to signal the lights to perform the startup/shutdown/turn signal features, you will need to find the vehicles DRL and turn signal wires and tap/splice into them. WE DO NOT PROVIDE VEHICLE SPECIFIC INSTRUCTIONS, THAT IS UP TO YOU TO RESEARCH. THIS IS A UNIVERSAL PRODUCT THAT WORKS ON ALL VEHICLES. PLEASE WATCH THE GETTING STARTED VIDEOS THAT EXPLAIN SETUP/FEATURES. WE DO NOT PROVIDE SUPPORT FOR THIS CONTROLLER. ALL OF THE INFORMATION IS IN THE GETTING STARTED GUIDE, YOUTUBE, FORUM POSTS, ETC.
- Four 12v inputs, for left turn, right turn, park, and brake
Controls two chains of addressable LEDs up to 350 each! (260 for RGBW)
Fully configurable through Bluetooth with our iOS/Android app!
New features delivered over the air through our app updates!
Sequential turn signals
- Reverse lights
Show modes triggered via Bluetooth
One module controls two turn signals
Unlimited fully customize-able show modes can be saved with the app
Adjustable turn signal timing to car’s flasher unit
Very low power drain while in operation, sleep mode when idle
Small form factor

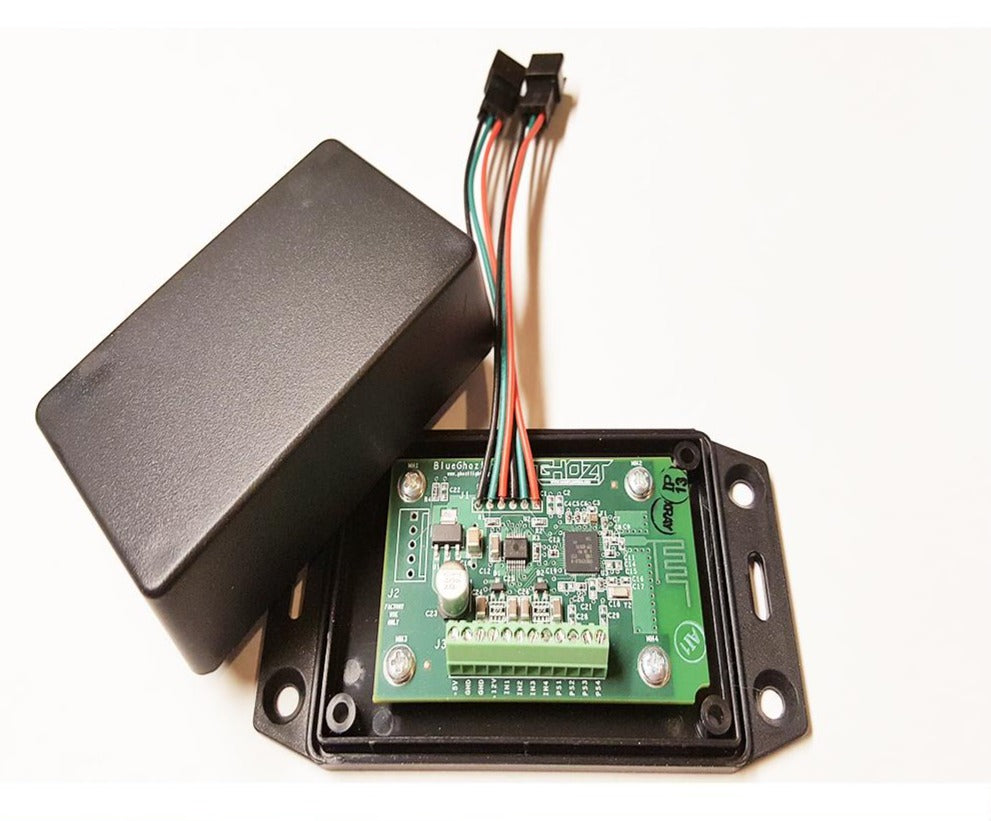

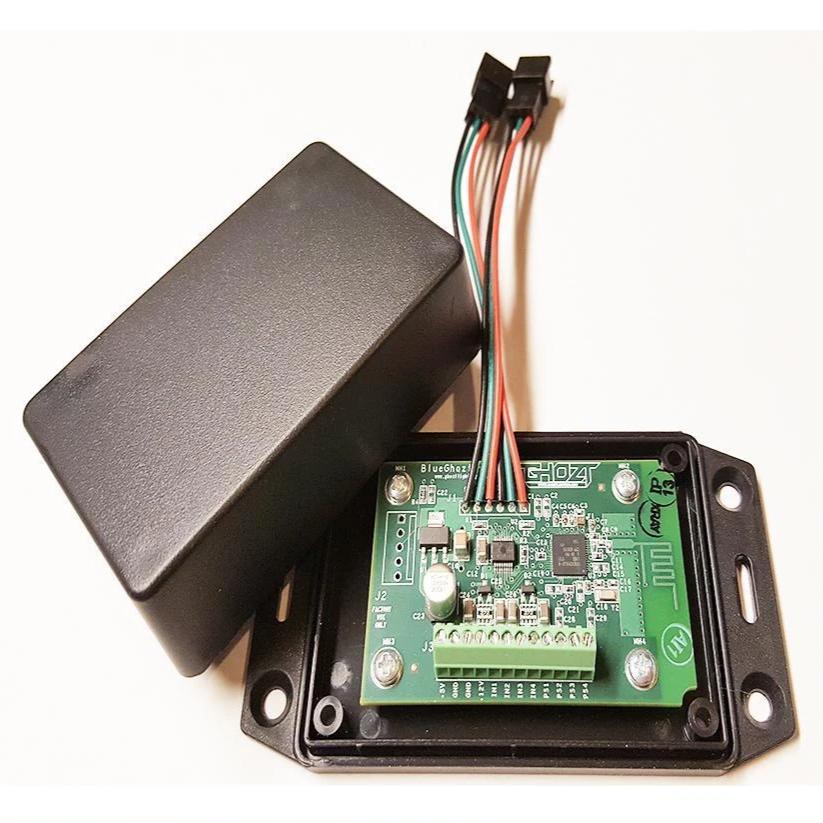

Includes a protective plastic housing
Minimal experience with retrofitting, soldering, and working with LEDs/resistors recommended. Headlight/taillight in most cases must be opened to gain direct access to install LEDs. LEDs, headlights, or taillights are all sold separately.
Follow this link for a "Getting Started with Blueghozt" Guide
Video below shows Blueghozt 2.0 Overview:

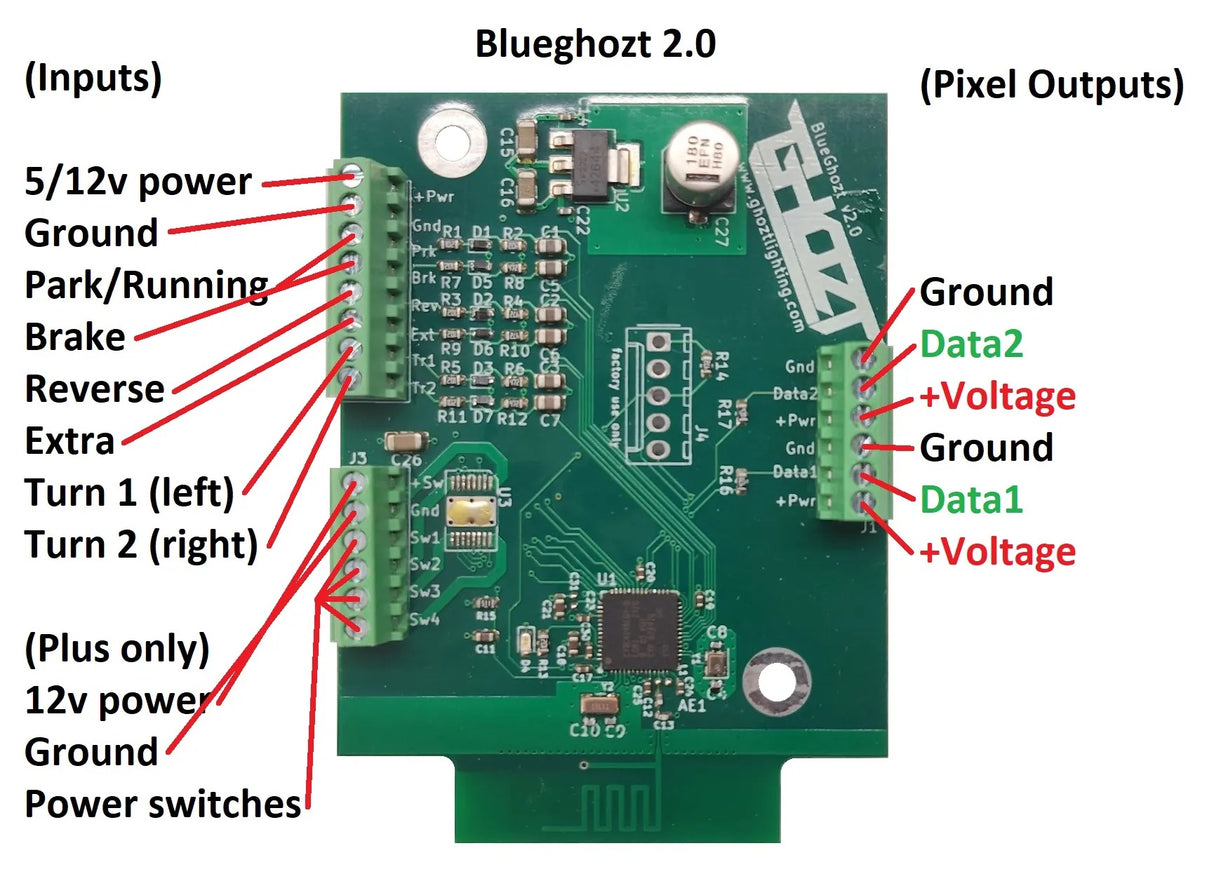

Prewired Option - Input Wiring Functions/Colors
Yellow Wire: Parking Light Trigger Wire. This can be tapped into the existing DRL wire on your vehicle or any ignition source. When wired in, this will allow your Flow Series Lights to act as a factory DRL with a head turning start up animation!
Red Wire: Brake Light Trigger Wire. This can be tapped into the OEM brake light power wire.
Green Wire: Show Mode Trigger Wire. This can be wired to a toggle switch. When set up correctly in the app, powering this trigger will turn on a series of selected show modes. This feature is great for quicky changing your Flow Series LEDs from a basic daytime running light into a show stopping work of art without needing to open the app on your smartphone.
Blue Wire: Passenger Side Turn Signal Trigger Wire. This will need to be tapped into the turn signal power wire on your vehicle in order to have the sequential turn signal function.
Black Wire: Driver Side Turn Signal Trigger Wire. This will need to be tapped into the turn signal power wire on your vehicle in order to have the sequential turn signal function.
(1) BlueGhozt 2.0 Lite Flow Series Bluetooth Controller
Optional plug and play harness Harness for Multiple Outputs
Applicable Power Supply (5v) or Fuse Harness (12v)
Wires for Turn Signal/Parking Lights if applicable
BlueGhozt warranty extends 2 years past the purchase date. Warranty does not cover damage due to improper installation or exposure to the elements such as water/etc. Upon returning the item, warranty status will be approved after item is inspected and cause of failure is determined.
The Bluetooth Remote (5v version) is compatible with:
- Flow Series Halo Kits
- Flow Series DRL boards
- Flow Series DRL tubes
- Flow Series Grill and engine bay kits
The Bluetooth Remote (12v version) is compatible with:
- Flow Series Wheel Lights
- Flow Series Underbody Lights
*If Choosing the wiring yourself option you will need to wire in the power and ground wires as well as the turn signal and parking light wires into the controller via the terminals inside. (Turn Signal and Parking Light wires are not included)
*If Choosing the pre-wired option all wiring will be installed in the controller for you.(Turn Signal and Parking Light Wires will be included)
*Blueghozt Controllers must be installed inside the vehicle as they are not waterproof. Any corrosion or signs of abuse/issues due to weathering or being installed outside of the vehicle will void warranty on this controller.
***Pre-Wired Ghozt Controllers Have a 3-5 Business day lead time***
