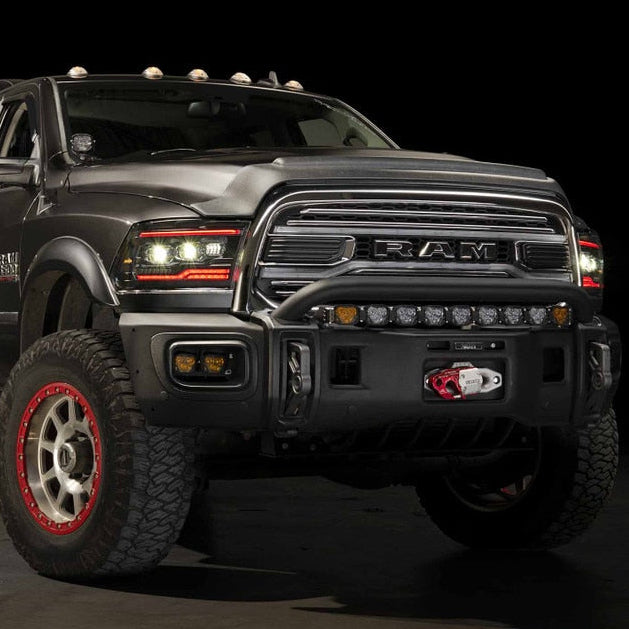

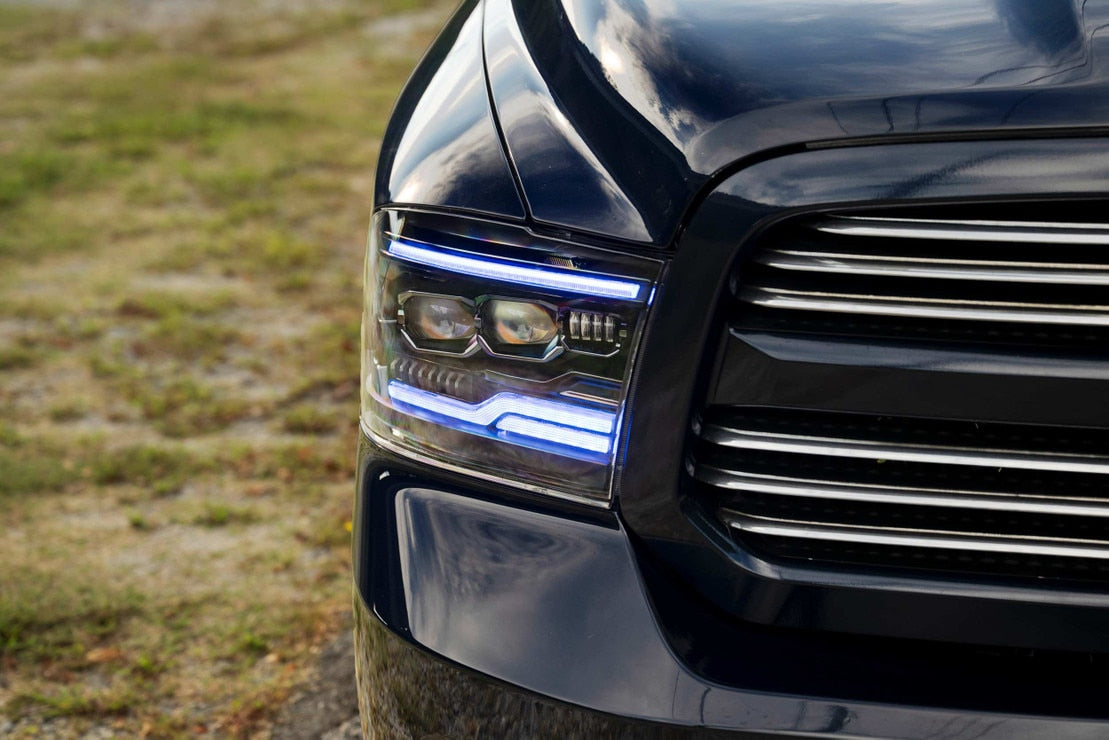

2009-2018 Dodge Ram XRGB EVO LED DRL Projector Headlights
Couldn't load pickup availability
Product Description
The XRGB Evo headlights for your 2009-2018 Dodge Ram 1500 and Ram HD 2500/3500/4500 truck are a showcase of everything Morimoto is made of. The daytime running light is Bluetooth app-controlled and can be set any color you can imagine. With the app turned off, the standard DRL can be configured to run full-time in either white or amber with no compromise in intensity either way. The signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. When starting your Ram, the optics will automatically illuminate in a multi-stage sequence before turning back off. XRGB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your truck! We're proud to stand behind the product with an industry-leading five-year warranty. This is a plug-and-play solution for your 2009-2018 Dodge Ram 1500 & HD 2500/3500/4500 of any trim level. These will also fit 2018-2023+ Ram Classic models.
Part Number: LF2-520R
Click HERE FOR THE RAM LED GRILL
Click here for the 2009-2018 Dodge Ram Headlight Installation Guide
2009-2018 Dodge Ram XRGB EVO LED DRL Projector Headlights Demo Video:
FEATURES & BENEFITS
- XRGB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.
- All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XRGB Evo.
- On and Off Road: Optional Supercharged LED drivers boost intensity by 30%, making them the brightest option for Ram owners who want to maximize output for off-road use.
- Signal Swap Keys: Enable users to further personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XRGB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
- Designed, engineered, and tested: In the USA by Morimoto, the XRGB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.
WHAT’S INCLUDED

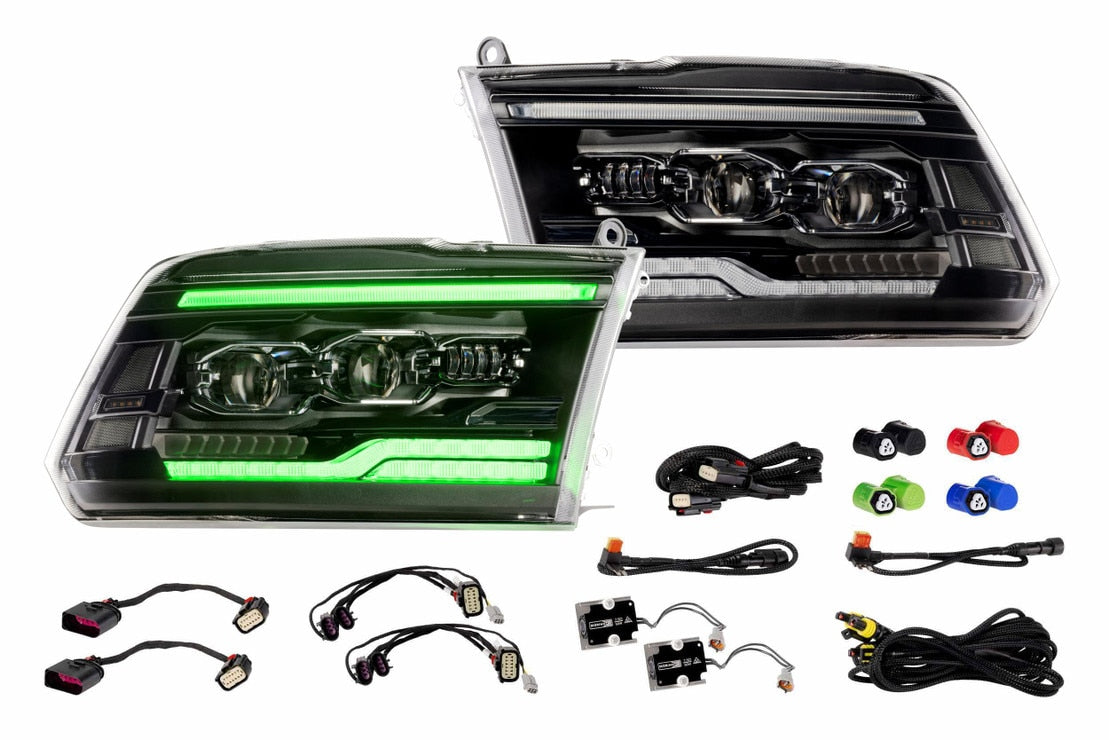

- Headlights : One Pair (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

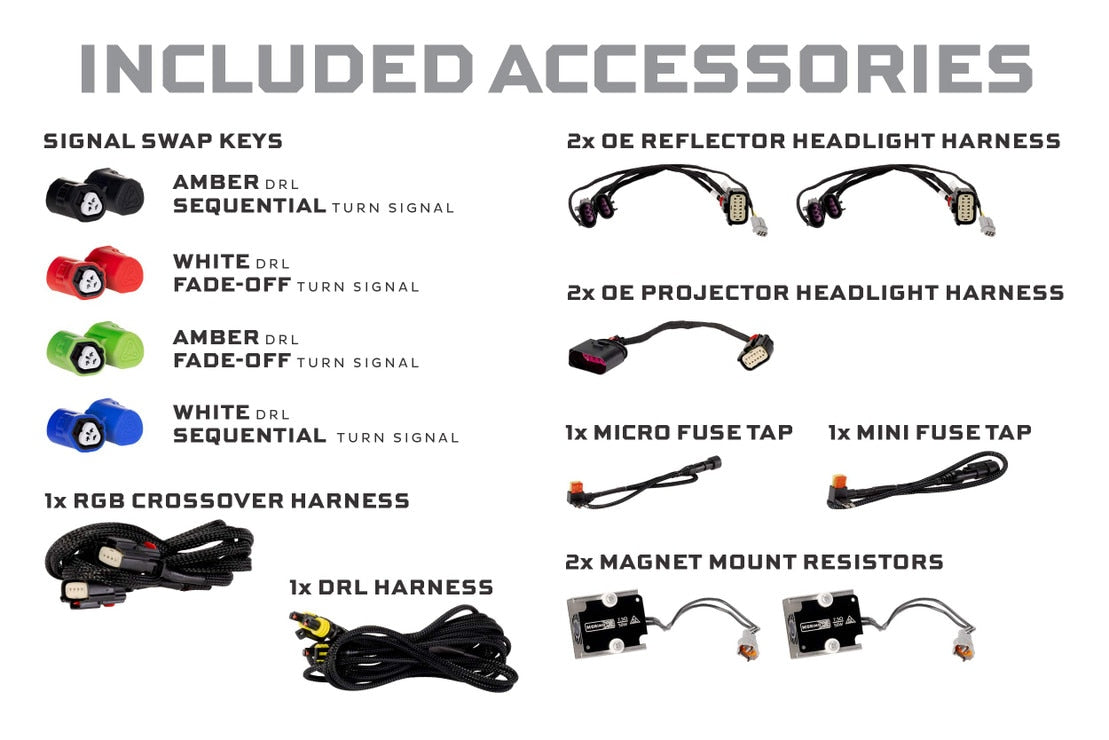

- Accessories : 1x Mini Fuse Tap, 1x Micro Fuse Tap, 1x DRL Harness, 2x Magnet-Mount Resistors, 2x OE Reflector Headlight Harnesses, 2x OE Projector Headlight Harnesses, 1x RGB Crossover Harness, 8x (4 Pairs) DRL / Signal Mode Selectors
- XRGBT Bluetooth App : Free Download in App Store (Compatible phone required)
- Optional Supercharged Drivers : 2x LF2-DRVSC20 Drivers
COMPATIBILITY
- Dodge Ram 1500 : 2009-2018
- Dodge Ram HD : 2009-2018
- Ram 1500 Classic : 2019-2024
- Replaces Mopar Part # : 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
- Compliance : Due to the color-changing RGB DRL, these lights are not complaint for on-road use in the USA or Canada.
- Supercharged Drivers : Compatible with LF2-DRVSC20 drivers
- NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
REPLACES MOPAR PART #: 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Evolutionary: A simple design refresh would have been easy, but that's not what this is all about. The all-new XRGB Evo headlights are a showcase of everything Morimoto is made of. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium.
Maximum Performance: Thanks to an all-new generation of Morimoto Bi-LED projectors, the XRGB Evo headlights truly outperform. Here, the Ram Evo headlight utilizes dual Bi-LED projectors to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. In high beam mode, dedicated D-Optics add even more intensity and coverage. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan.
On Road: Photometrically, the XRGB Evo headlights do meet all DOT/FVMSS108 guidelines for on-road illumination and glare, however due to the color-changing RGB daytime running light and smoked sidemarkers, these lights are not DOT compliant. Users should follow all local laws and regulations when using these lights and should note that setting the daytime running light to anything except for white or amber colored is not legal for use on public roads in North America. The XRGB Evo projector optics are so capable and efficient that their LEDs are only driven at about 50% of their full potential intensity to avoid exceeding limitations set by compliance. The vertical aim is fully adjustable within +/- 6 degrees for a perfect alignment on any Ram, even with a lift. The system was designed in California by Morimoto's lead optical engineer, Yoshi Ishida, to deliver maximum visibility, comfort, and safety, and that it does.
Off Road: Yes, you read that correctly. Out of the box, the XRGB Evos are only producing a fraction of their potential intensity. Want more light for your off-road adventures? The optional Supercharged LED driver boosts both low and high beam intensity by approximately 30% - all without sacrificing reliability or warranty. While the Supercharged drivers easily enable the XRGB Evo to outshine every other headlight for the Ram on the market, we must reiterate that they will result in non-compliant levels of peak beam intensity and therefore should not be used on public roads.

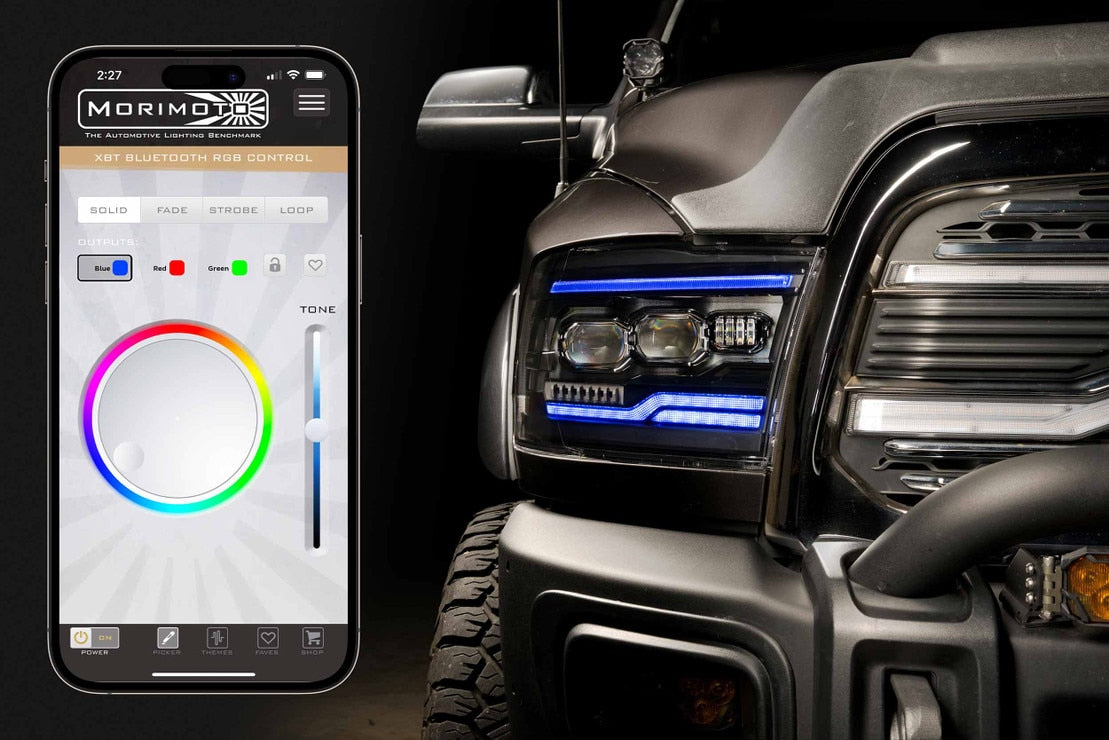

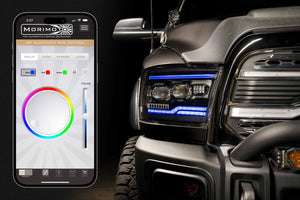

RGBWA DRL Optics: Easily out-shining low-tech optics found in every other aftermarket headlight, the Bluetooth App-controlled color provides a one-off look in any color you can imagine. With the app turned off, the daytime running lights can be configured to run either white or amber with no compromise in intensity. The turn signals and daytime running lights illuminate with special surface textures, which enable maximum intensity from all viewing angles.
Easy to Personalize: The proprietary signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. The turn signals can operate sequentially from side to side, or in a more traditional on-off mode with an elegant fade-off effect.
Welcome Sequence: When starting your Ram, the optics will automatically illuminate in a multi-stage sequence before turning back off. Unlike nearly every other feature baked into the XRGB Evo headlights, this does absolutely nothing to improve performance. But executed properly, it does look cool, and there's nothing wrong with that!
OE Fit & Installation: The XRGB Evo headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free install. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging and then plug into the factory wire harness and then work without errors on the dash, flickering, flashing, or radio interference. Thoughtfully engineered for modification-free installation. No factory warranties void. No headaches.
Well-Built: This product is completely designed, engineered, and tested in the USA by the Morimoto team to meet the high expectations of our customers. Nichia LEDs from Japan are used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are industry-best, which is why we've formulated a new hard coating that exceeds their standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on but as the saying goes: you get what you pay for. XRGB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your truck! We're proud to stand behind these headlights with an industry-leading five-year warranty.

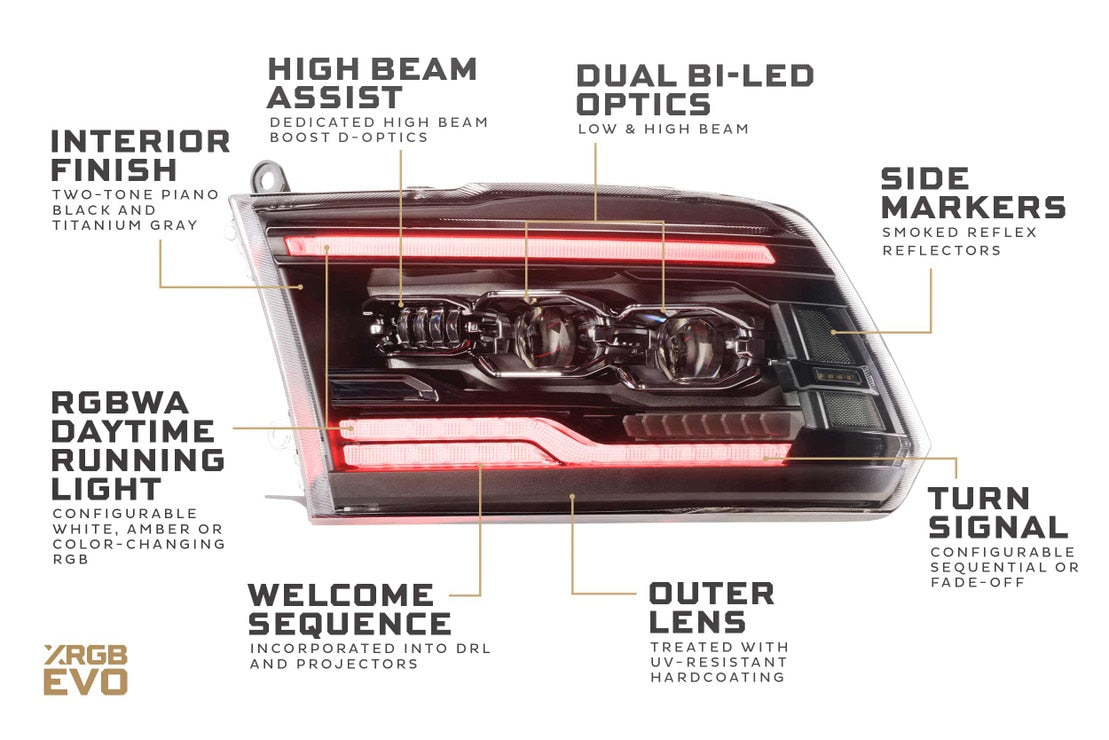

- Traffic Pattern : LHD / Right Hand Traffic Only
- Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
- High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

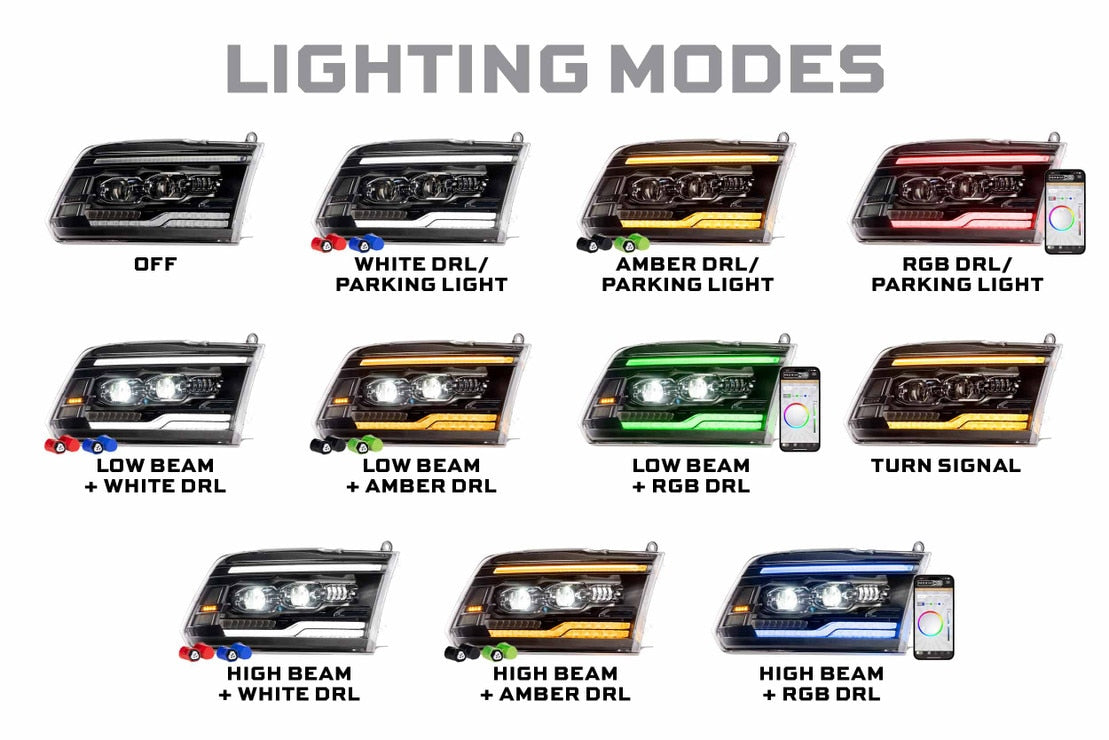

- Functions : Low, High, Park, Turn, RGB DRL, Welcome Sequence
- Turn Signal Modes : Sequential or Fade Off (Configurable)

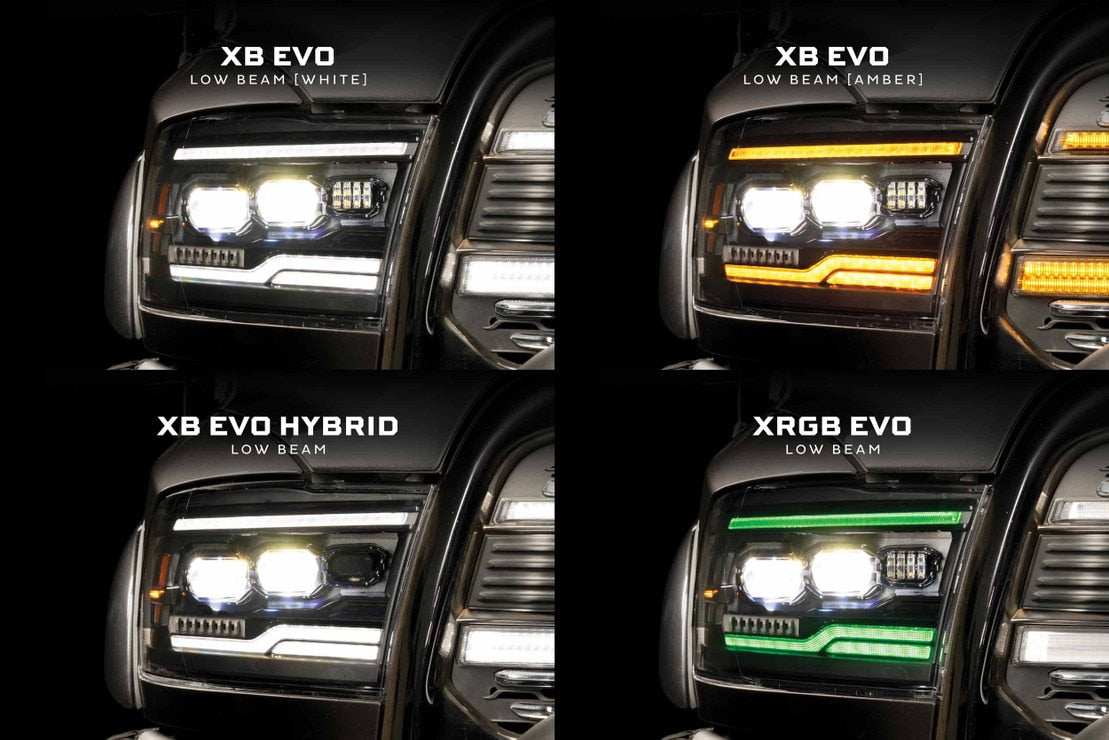

- DRL Colors : RGB (via BT app), White or Amber (Configurable)
- Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
- Side Marker : Smoked side reflex reflector
- Lens Details : Polycarbonate with proprietary anti-UV hard coating
