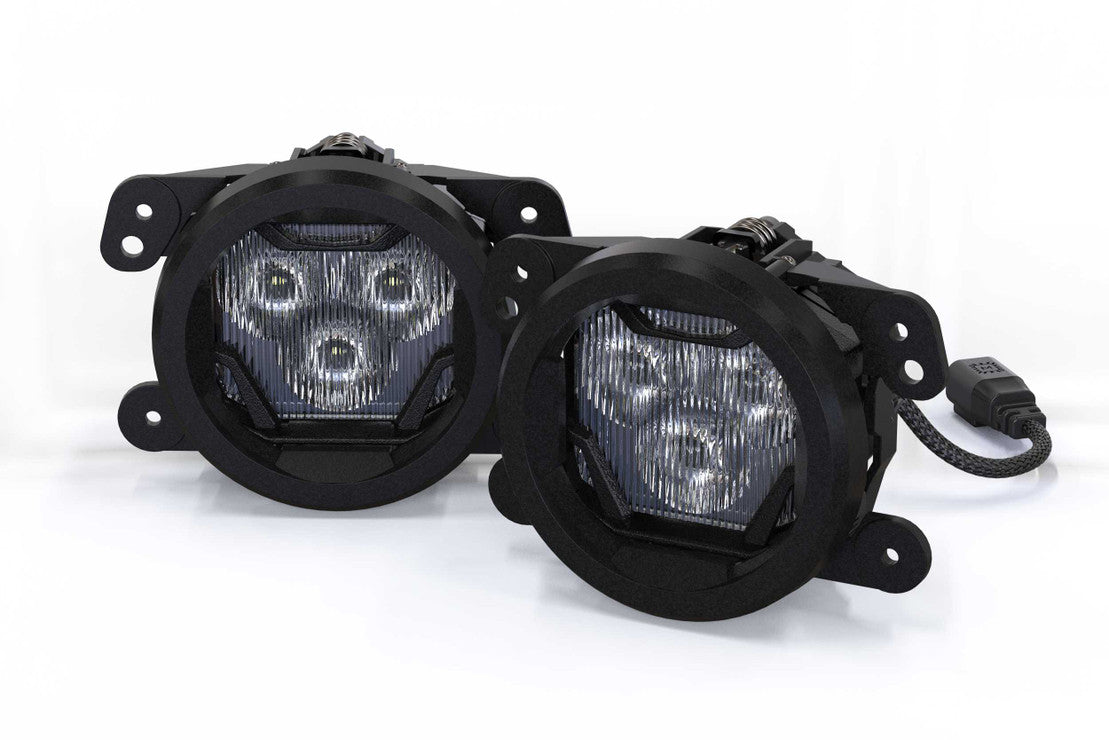

AutoLEDTech.com's 4Banger LED fog light pod assemblies designed for your 2007-2017 Jeep Wrangler JK are extremely bright, road legal, and easy to install! The 4Banger LED Fog Lights are designed for easy bolt-on, plug & play installation on your vehicle. The ultra bright and rugged Morimoto 4Banger pods use a wide beam pattern that is street legal andf will not blind other drivers. There are 2 outputs and 2 colors to choose from, standard (NCS) or high perfomance (HXB), white or yellow. The brackets are designed to be a simple, easy bolt-on installation for your Ram truck. We are so confident in this system, that it is backed by a limited lifetime warranty!
Wide Beam: Maximum width

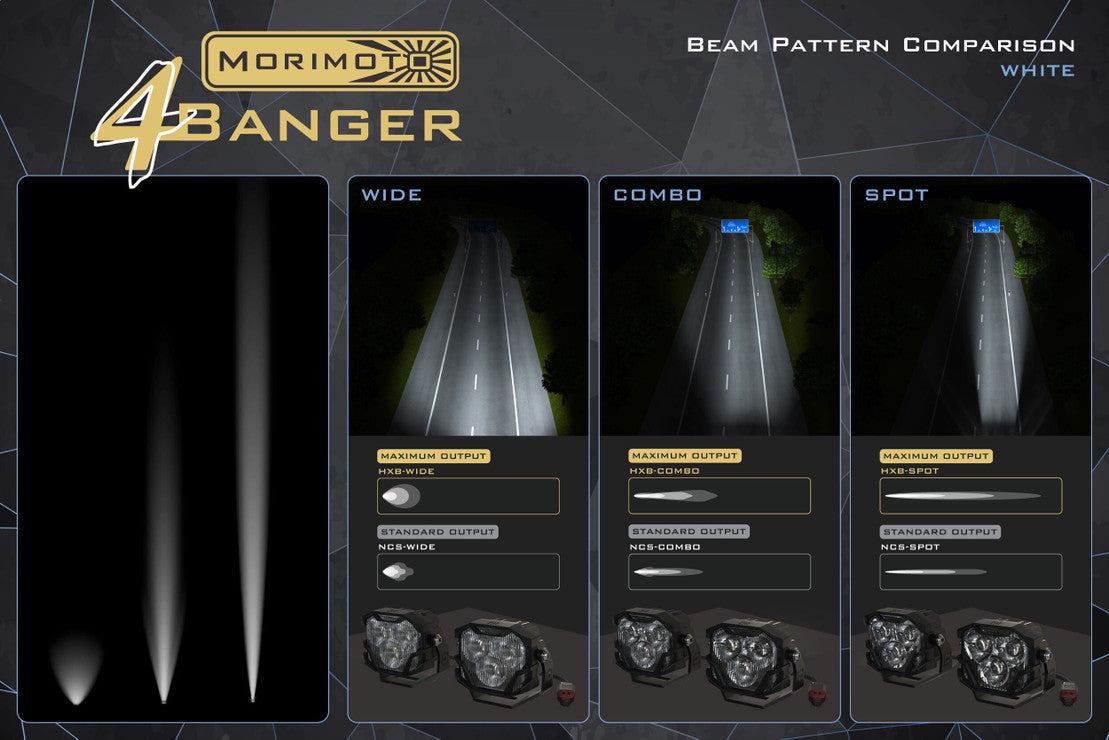

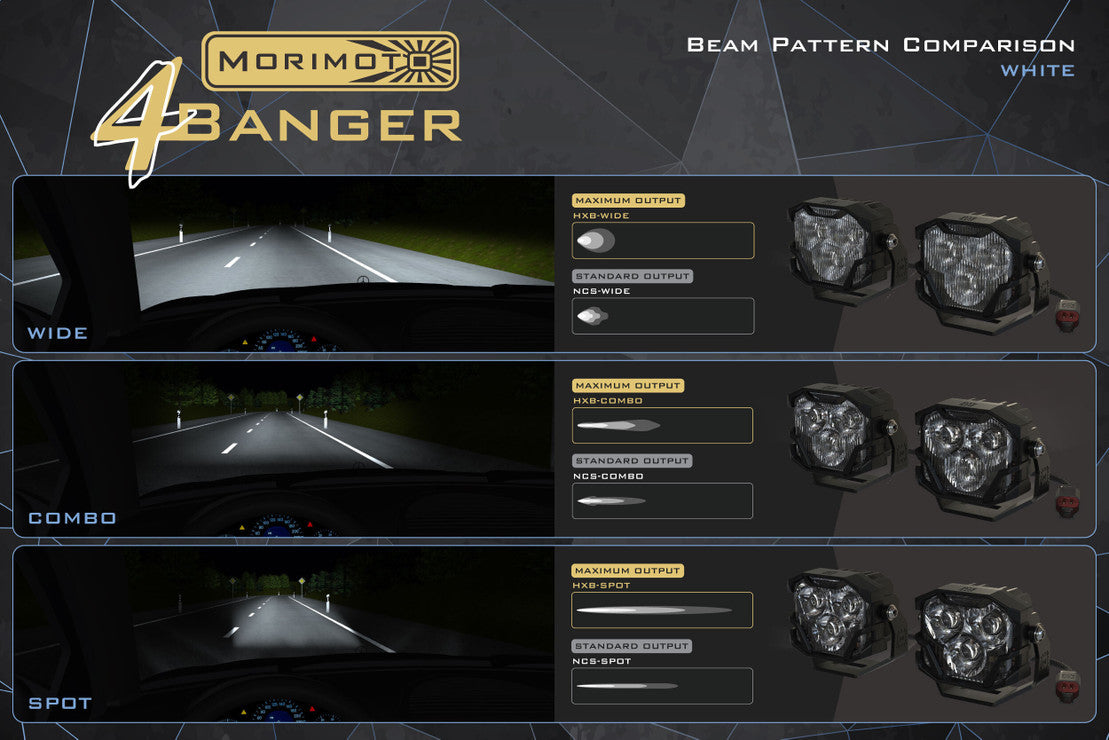

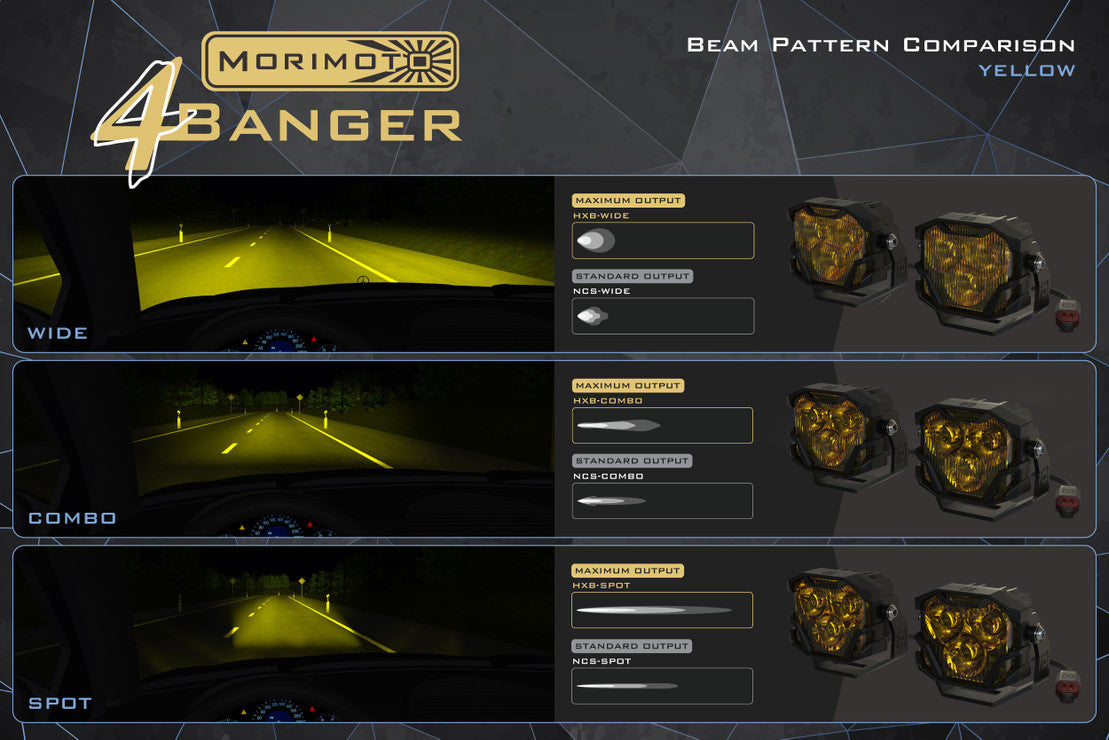

See video or photos for info on beam patterns
Click here for the 2007-2017 Jeep Wrangler JK 4banger LED pods installation guide
- 2007 Jeep Wrangler JK
- 2008 Jeep Wrangler JK
- 2009 Jeep Wrangler JK
- 2010 Jeep Wrangler JK
- 2011 Jeep Wrangler JK
- 2012 Jeep Wrangler JK
- 2013 Jeep Wrangler JK
- 2014 Jeep Wrangler JK
- 2015 Jeep Wrangler JK
- 2016 Jeep Wrangler JK
- 2017 Jeep Wrangler JK
- Replaces Mopar Part #: 5182026AA
Morimoto 4Banger LED Light Pods Demo Video:
The brand new, patent-pending line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.
LED PODS: 2x (One Pair) Morimoto 4Banger

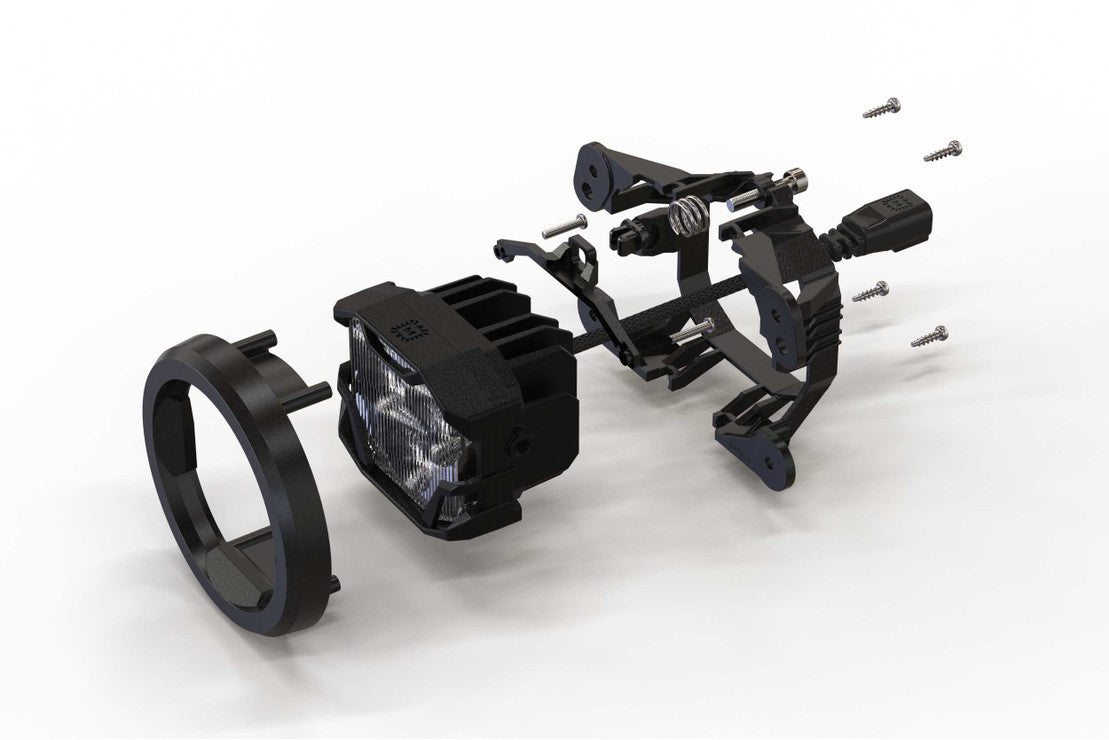

MOUNTING HARDWARE: 2x (One Pair) w/ Template
HARDWARE: Complete pack (stainless steel)
VEHICLE SPECIFIC PLUG & PLAY WIRING CONNECTORS
HXB WIDE BEAM: Illuminates the ground directly in front of the vehicle. The HXB Optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient and powerful Osram HX Boost LEDs make these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control -- making it the most effective on and off-road LED fog light in the world. HXB WIDE YELLOW: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m) HXB WIDE WHITE: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
NCS WIDE BEAM: Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W) and has also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light. NCS WIDE YELLOW: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m) NCS WIDE WHITE: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
INPUT VOLTAGE: 9-18V DC
- POWER: 20w (NCS) 42w (HXB)
- CURRENT: 1.5A (NCS) or 3.2A (HXB)
- DIMENSIONS: 82mm W, 67mm H, 60mm D

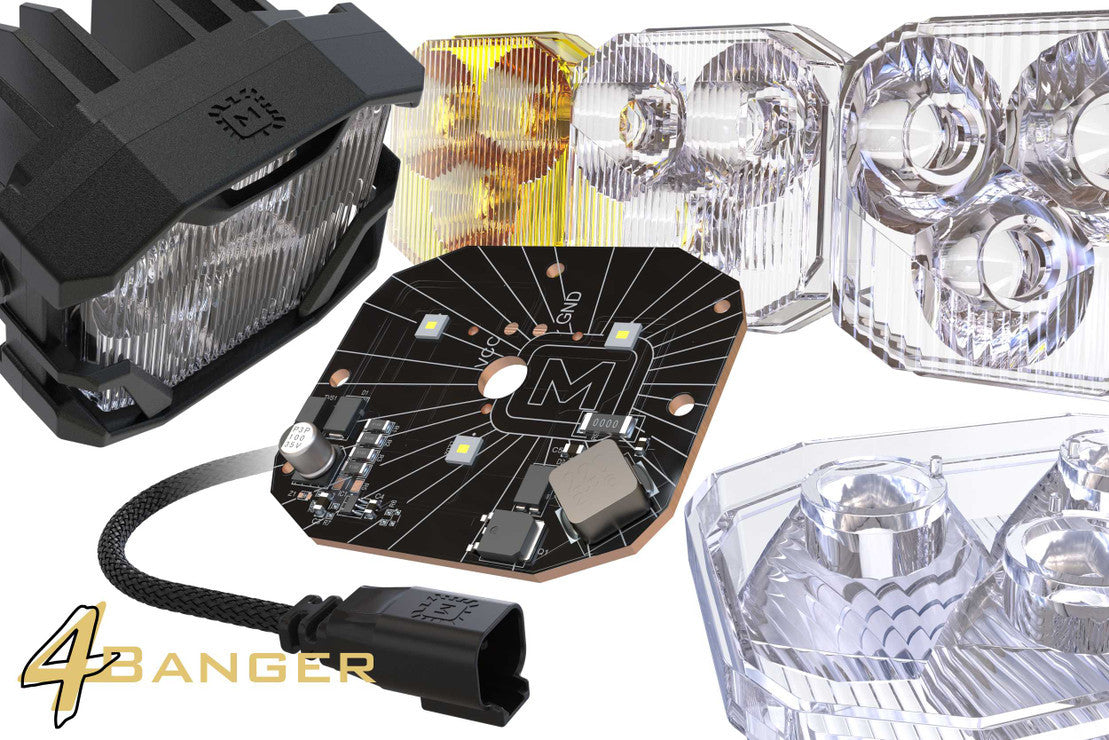

- LIGHT SOURCE: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
- INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail

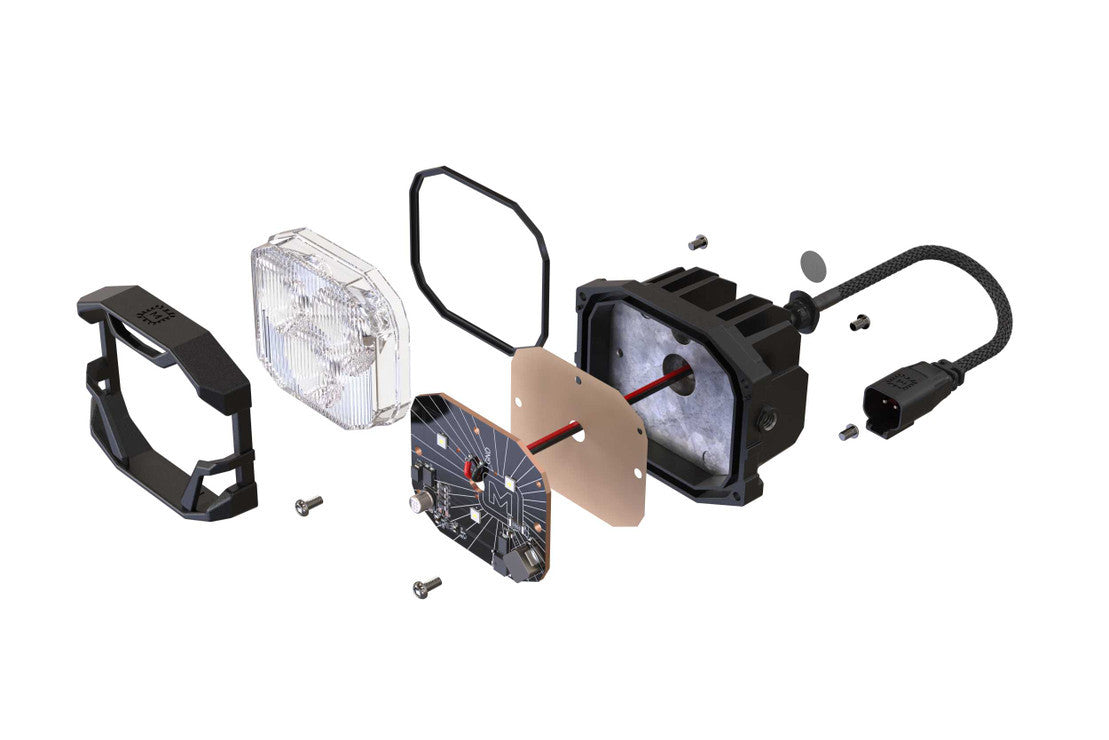

- MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
- IP RATING: IP68K (Dust / High Pressure Water Resistant)
SAE COMPLIANT FOG LIGHTS: The Morimoto 4Banger NCS SAE Wide Beam out-performs the competition while complying with the latest SAE F regulations for a street legal fog light. The 4Banger HXB Wide Beam sets a new industry benchmark for intensity. But what's better than producing the best and brightest beam patterns that are safe for use on public roads as a fog light? The best fog-light specific mounting brackets for your Ford truck, of course.

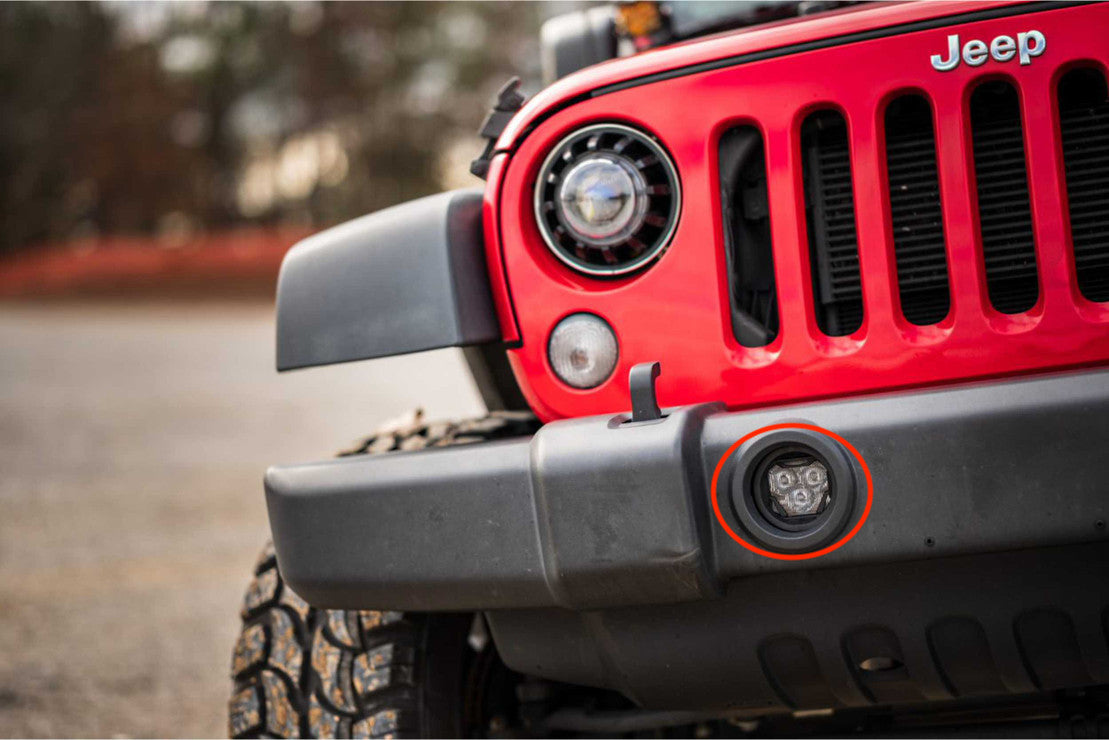

ENGINEERED SOLUTION: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right. Other adapter kits for more traditionally-sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a Super Duty owner could ask for.
EASY SETUP: Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or its wiring to install the 4Banger off-road lights in your fogs. Each kit includes all of the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. Note, your vehicle must have stock fog lights.
FULLY ADJUSTABLE: These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic.

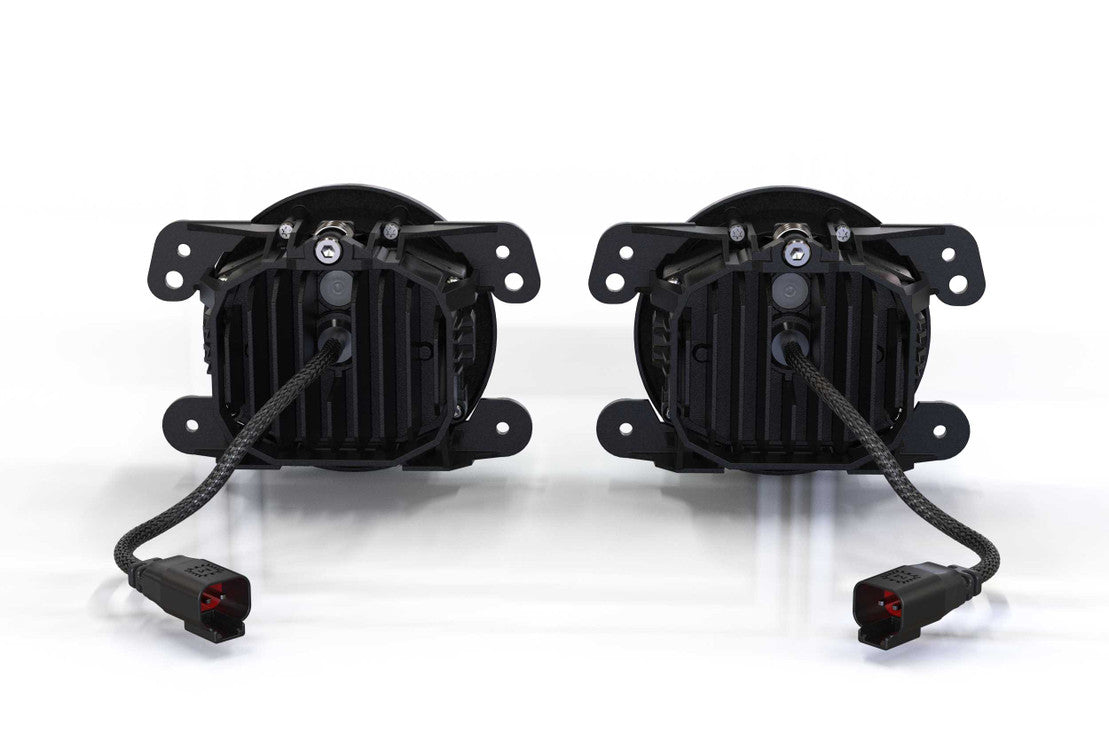

AIR COOLED: As if the style, the fitment, the adjustability aren't enough – we have incorporated duct work into each bracket to actively cool the LED pods. This improves lumen maintenance by eliminating heat-soak, which is common in other LED Pod fog light kits that have no ventilation for the heat sink.

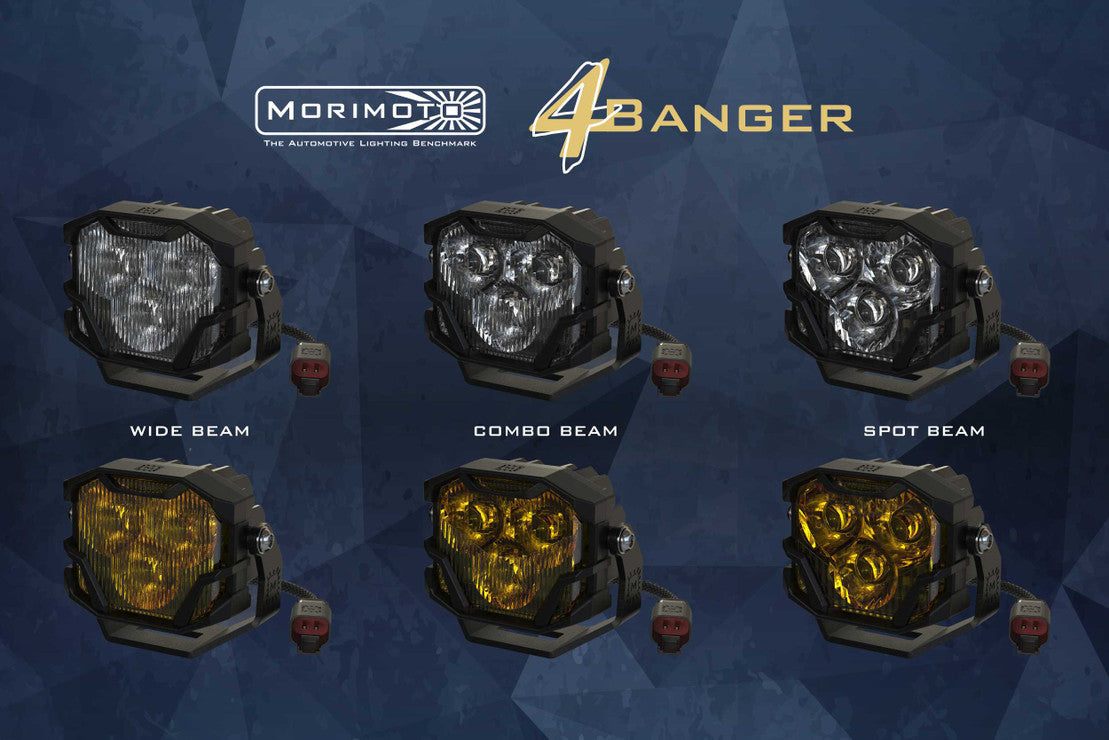

ALL WEATHER: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog – the Yellow-output version will slay in sour weather. For HXB Spot and Combo models, Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).
HXB WIDE BEAM: Offers an extremely wide beam pattern backed with powerful Osram HX Boost LEDs, making these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control - making it the most effective on and off-road LED fog light in the world.
NCS WIDE BEAM: Offers the same super wide beam pattern backed with LEDs from Nichia. Their superior vertical gradient control also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light, making them highly effective on the ground and glare-free for oncoming traffic. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W).
Simplicity. Triple sealed proprietary 4-pin relays with hanger. Proprietary over-molded inline fuse holder with 40A ATO fuse. Six DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Beefy 10 AWG Wiring. If you want the best, Bingo.
