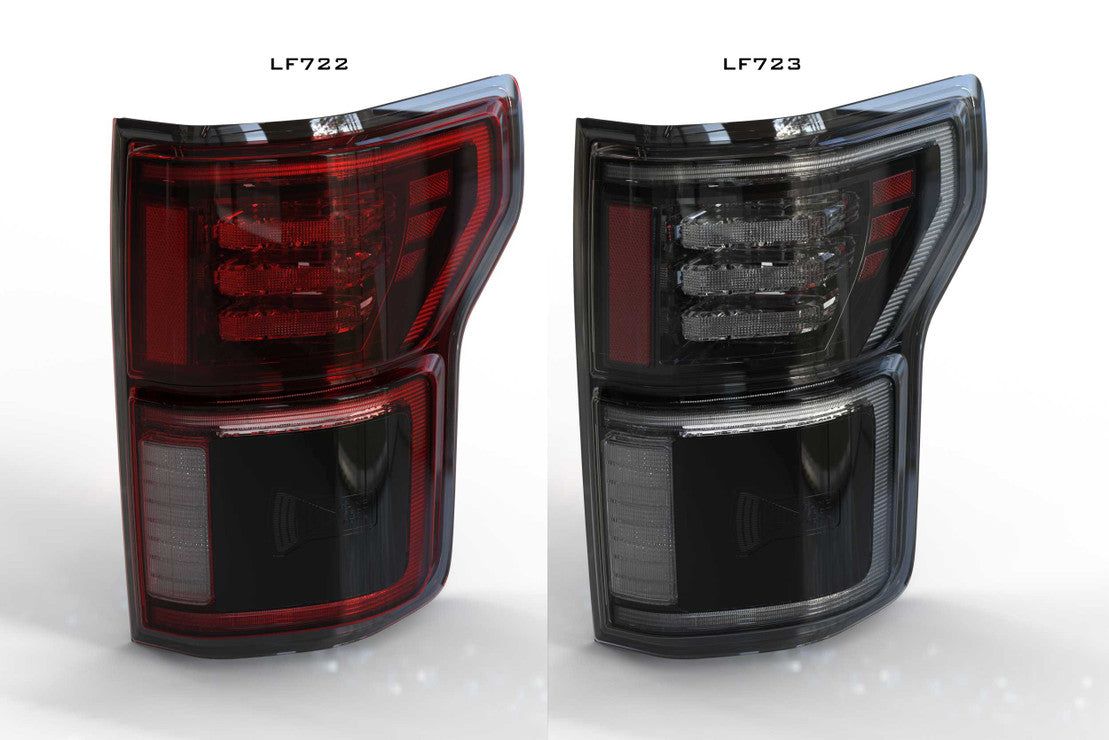

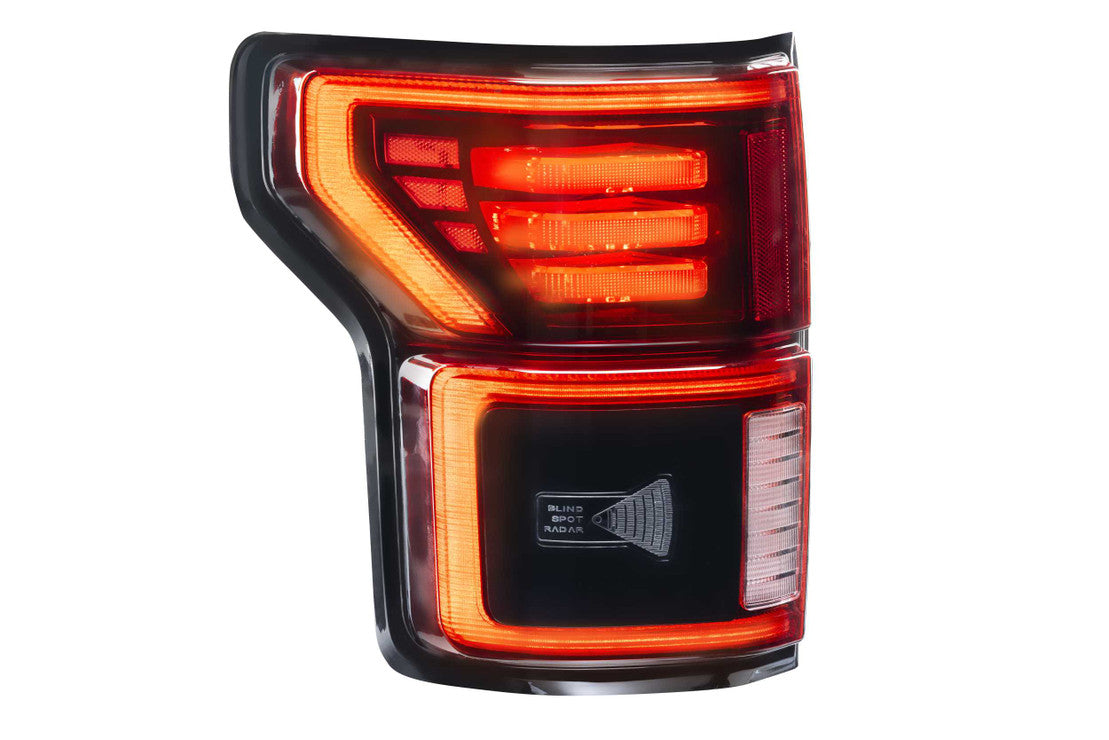

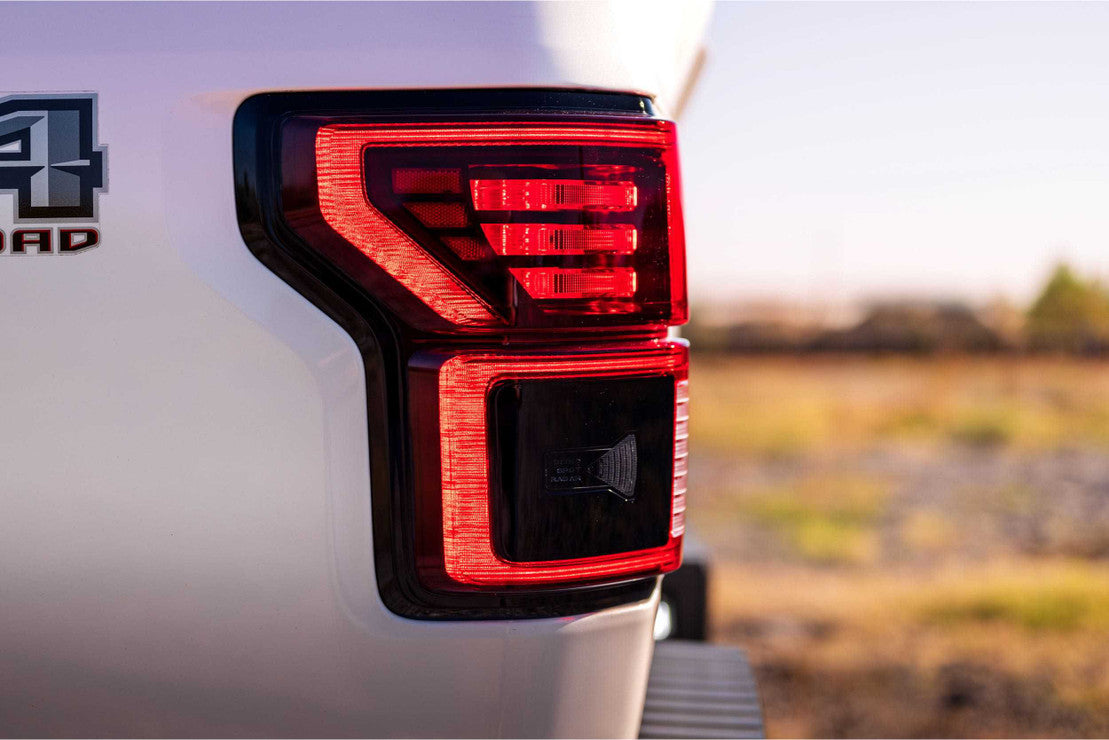

2015-2020 Ford F150 & Raptor Red/Smoked Full LED Tail Lights - Fits all models
Couldn't load pickup availability
Product Description

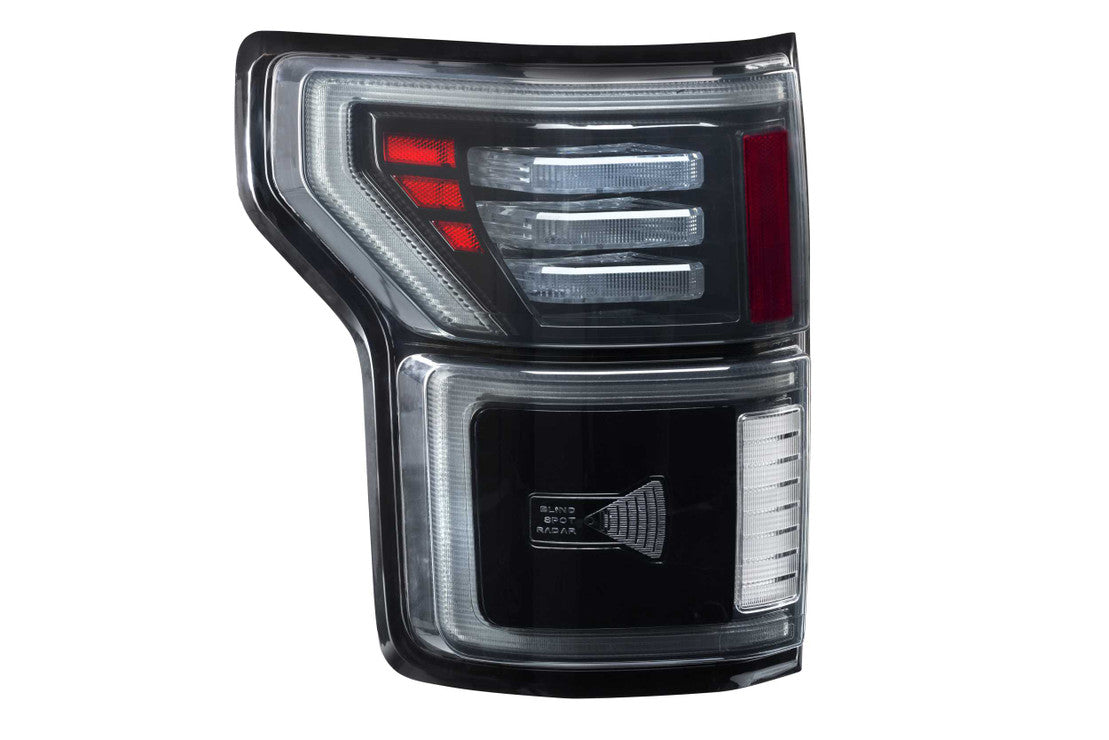

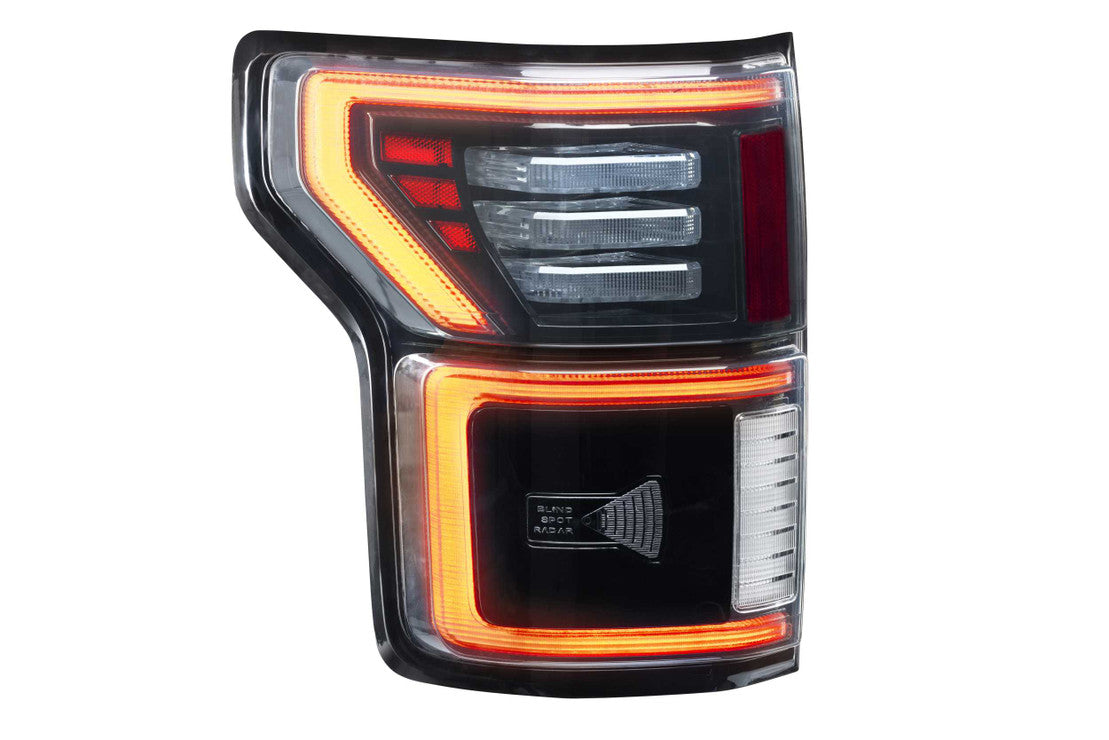

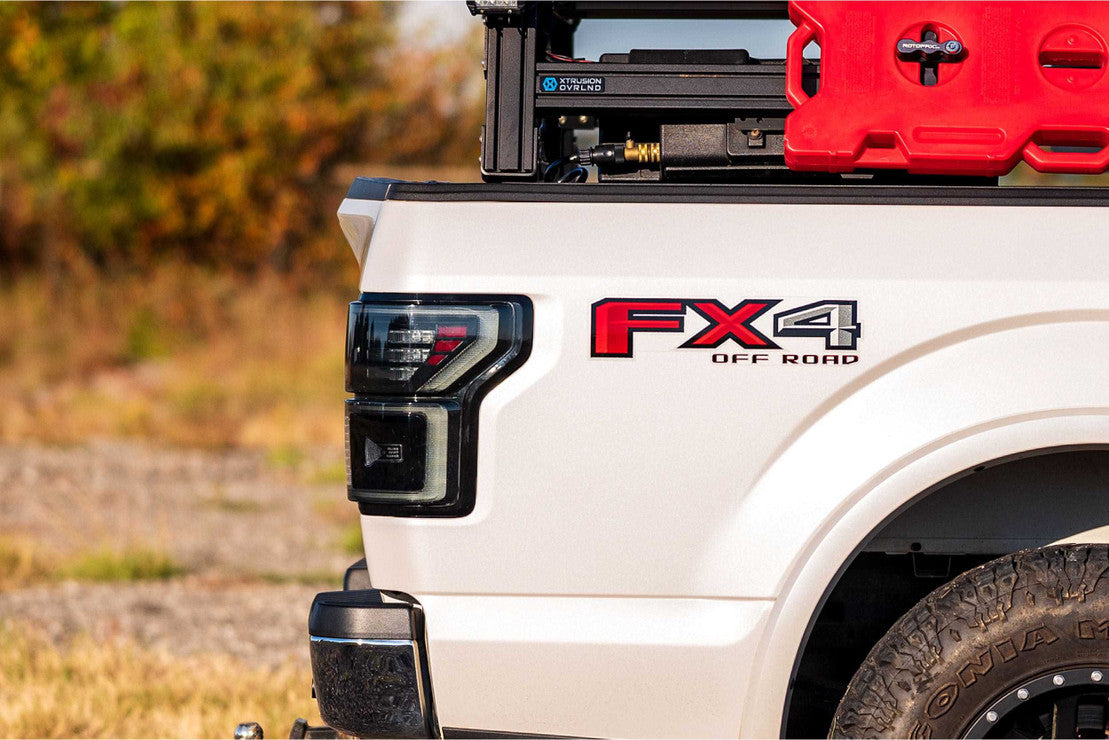

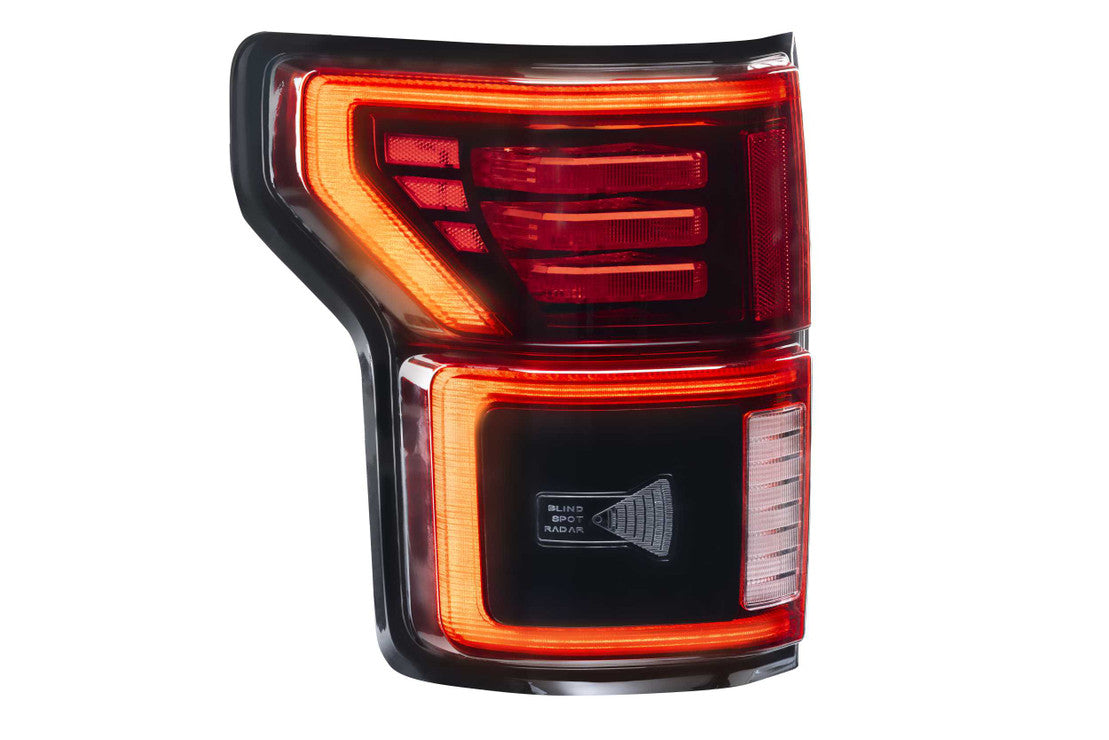

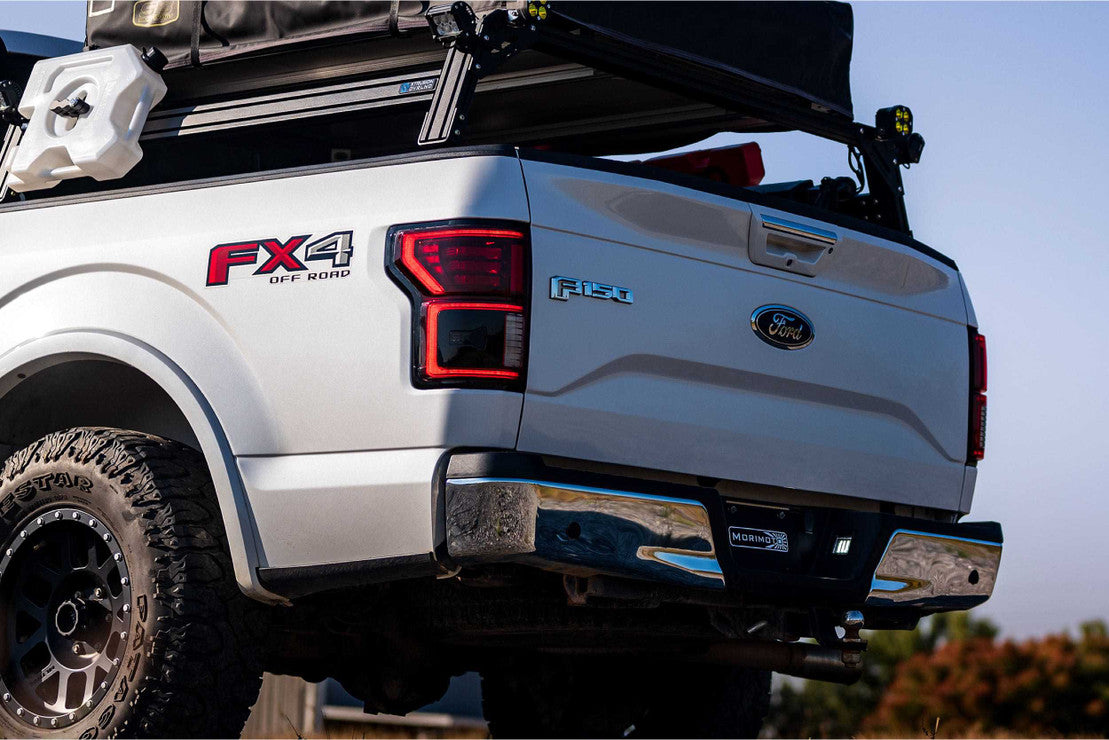

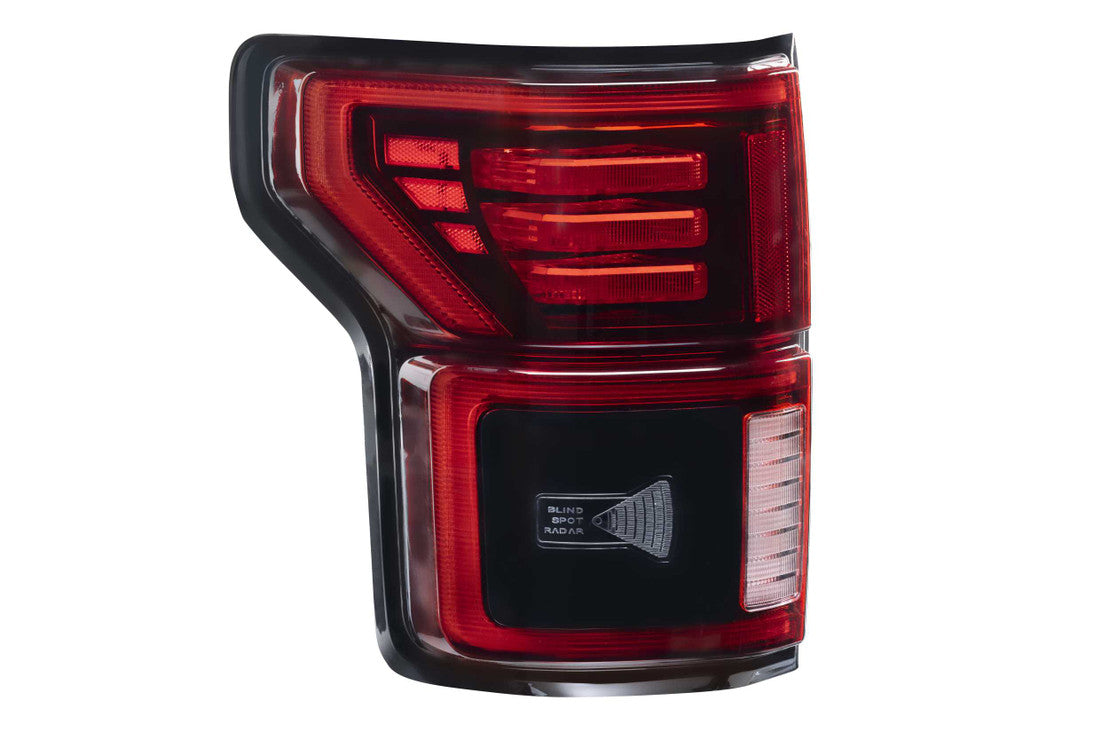

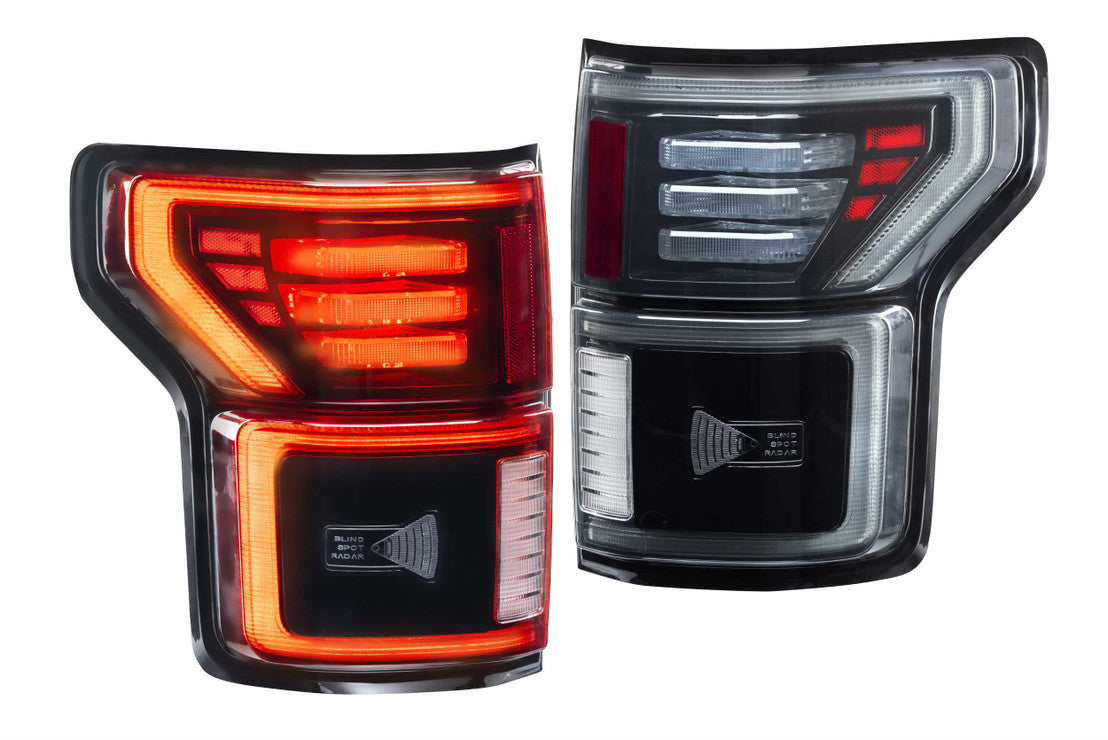

Red or smoked lens full LED tail light assemblies for your 2015-2020 Ford F-150 & Raptor truck that will work for all models (XL, XLT, Lariat, King Ranch, Platinum, Limited, Tremor, Raptor, etc), including the halogen equipped Non-BLIS, halogen BLIS, or LED style BLIS taillight equipped trucks. Choose from a factory red lens finish or a smoked/blacked out lens finish. If you have BLIS radar equipped tail lights, you will need to swap the modules over to the new tail lights using the instructional video. If you do not have BLIS equipped tail lights, THESE DO NOT MAGICALLY ADD THAT FEATURE! The kit includes everything you need for plug & play installation. Available styles include red lenses or smoked lenses. The design of these tail lights is inspired by the more modern 2018-2020 Ford F-150 and Raptor factory tail lights.
Shipping NOW! ORDER NOW TO SECURE YOUR SET IN THE FIRST SHIPMENT. THESE WILL SELL OUT FAST!
The new blacked out + clear lens full LED 3rd brake light for all 2015-2020 Ford F-150 & Raptors can also be added on. We have models that work with the rear camera equipped 3rd brake light and the models without the rear camera! Scroll to the end of the photos to check them out. A flasher module can be added on for an F-1 style flashing effect for $25 (See video below)
Click here for 2015-2020 Ford Ford F-150 & Raptor Red/Smoked Tail Lights Installation Guide
2015-2020 Ford Ford F-150 & Raptor Red/Smoked Tail Lights Overview & Installation Video:

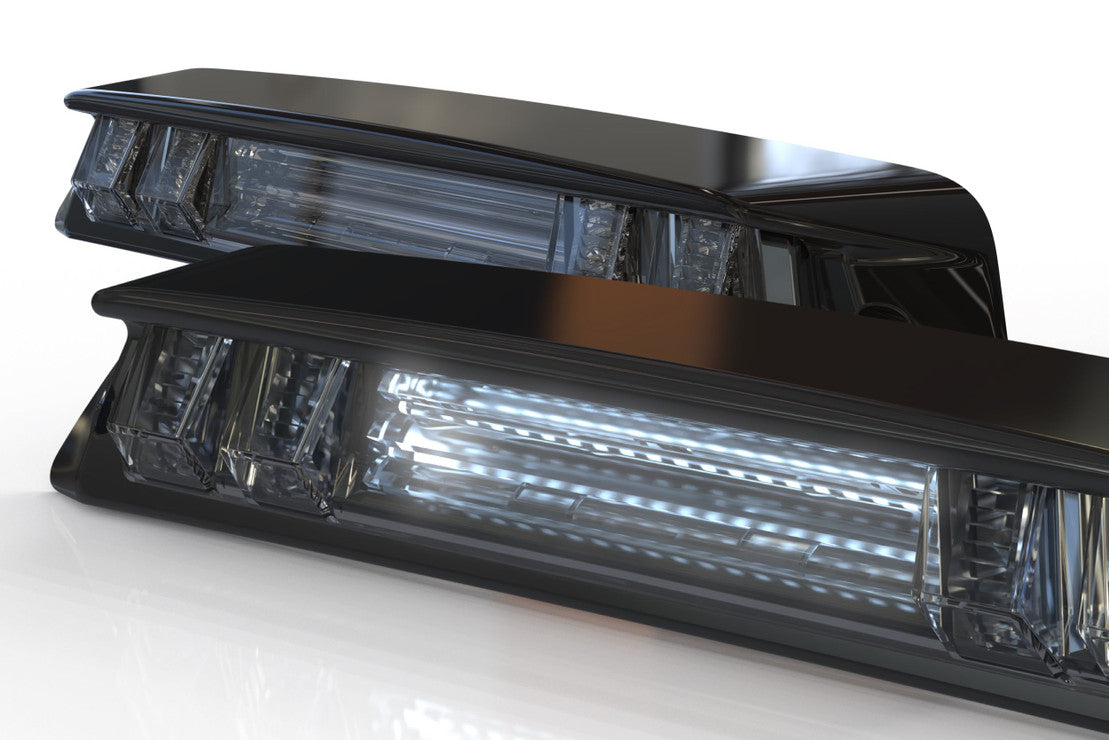

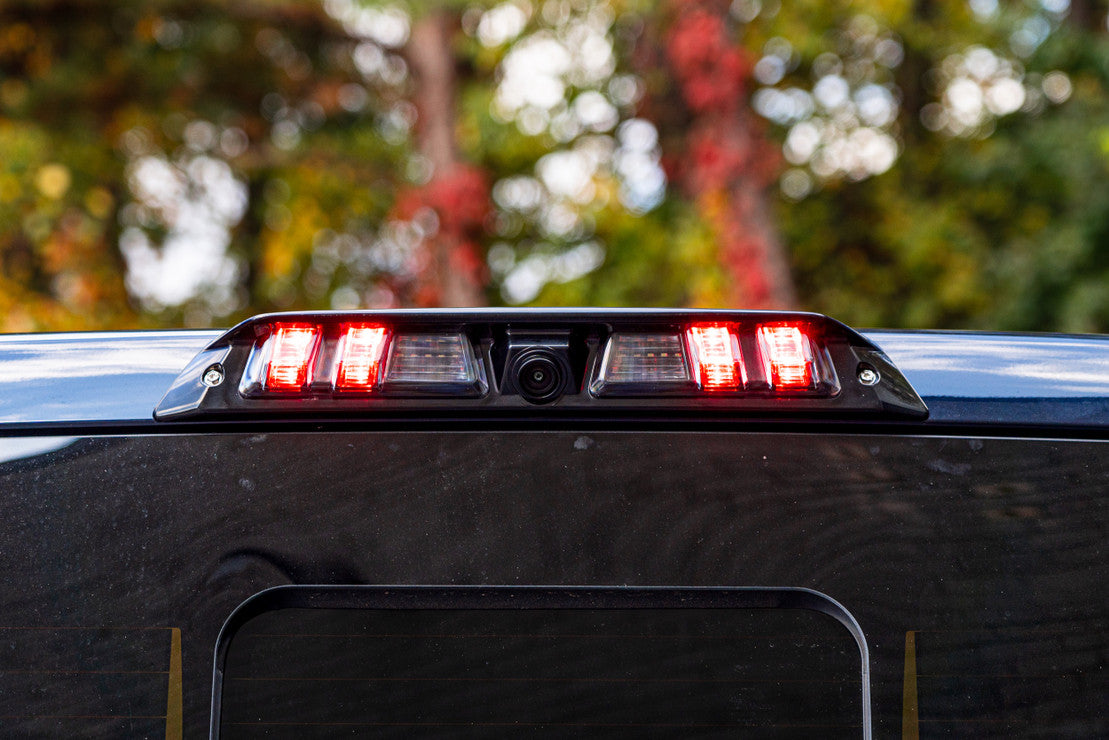

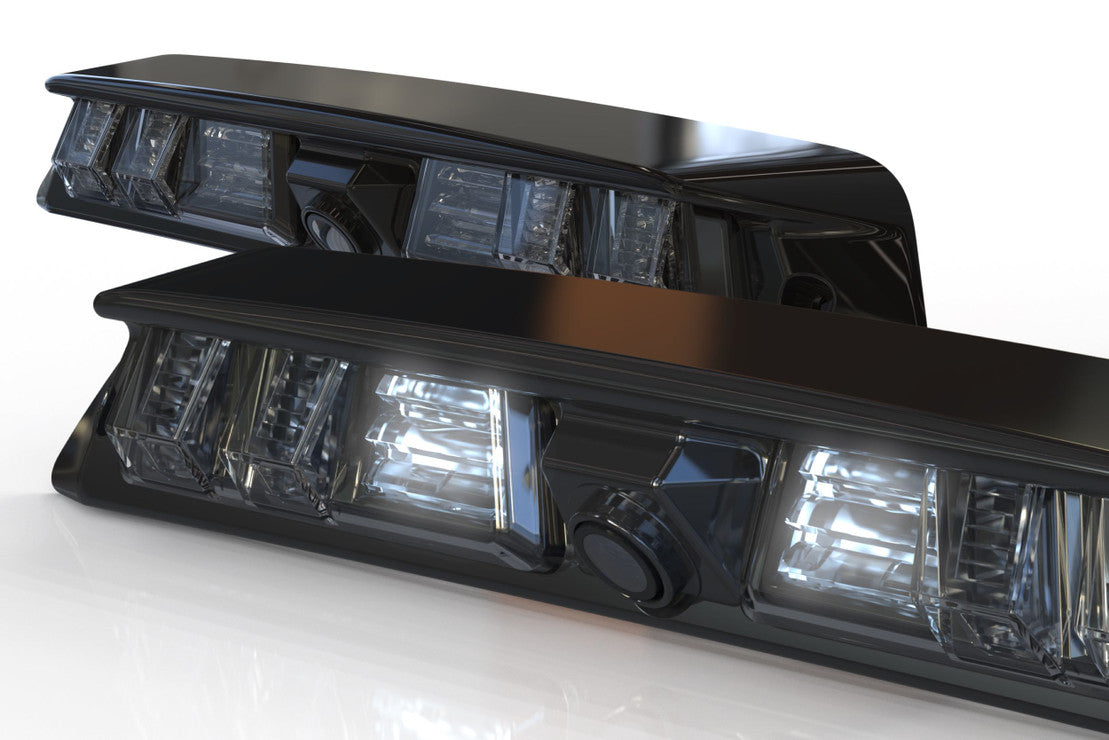

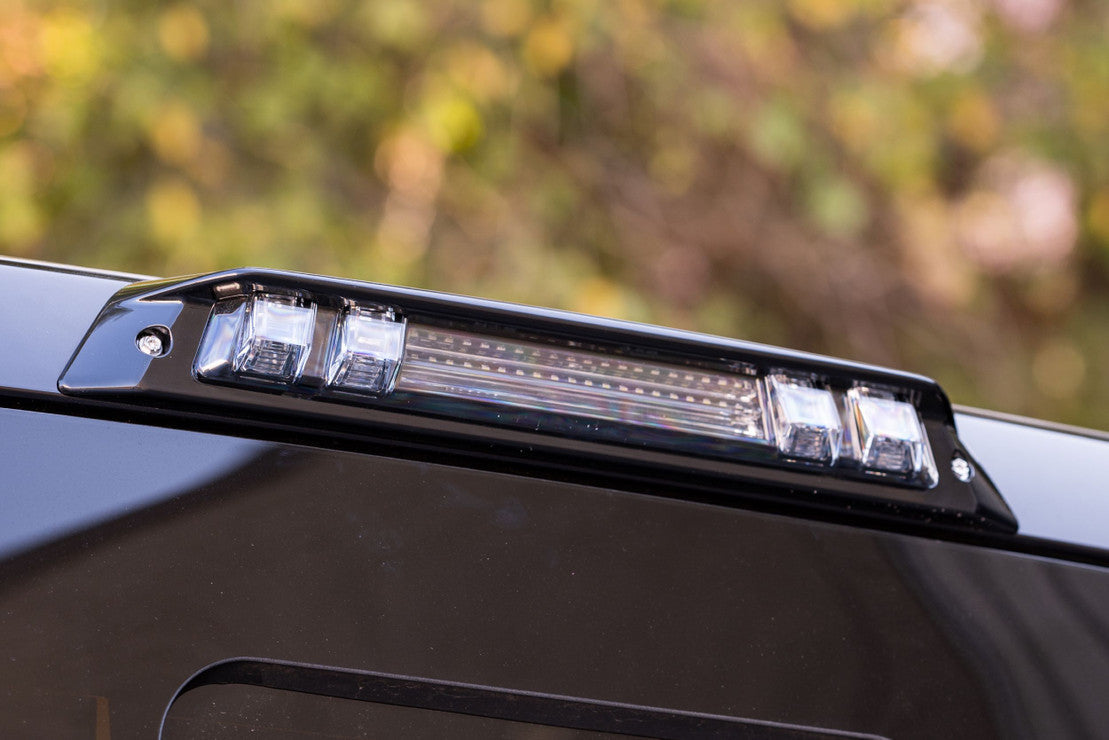

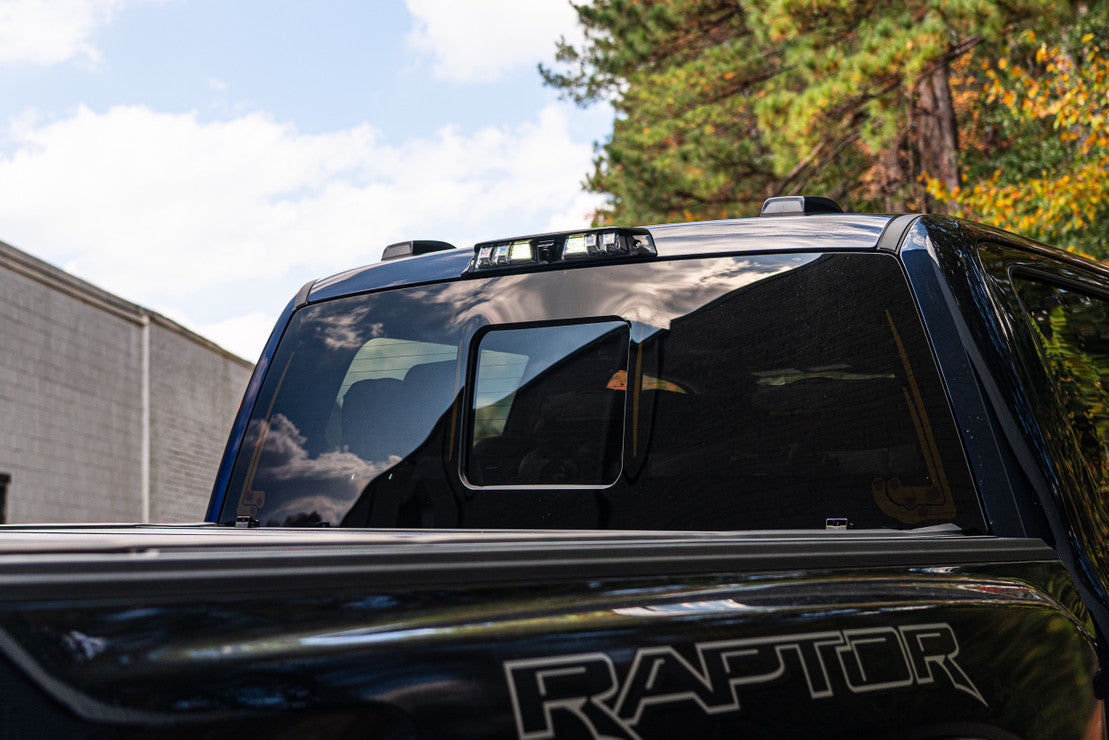

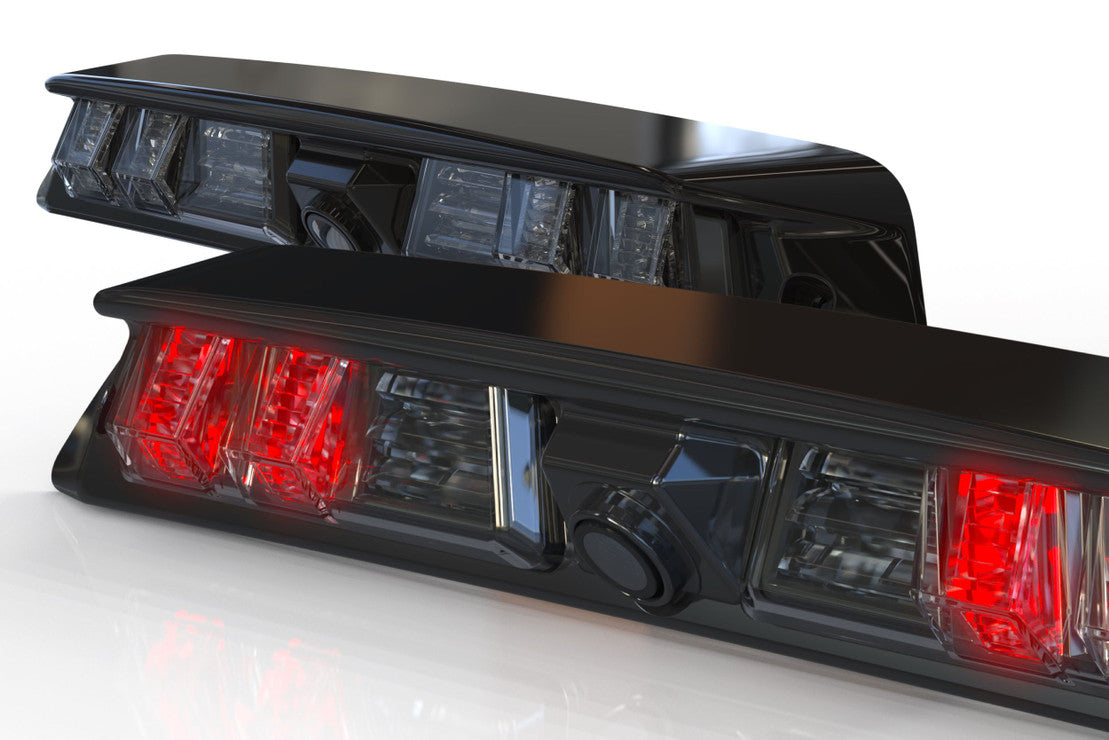

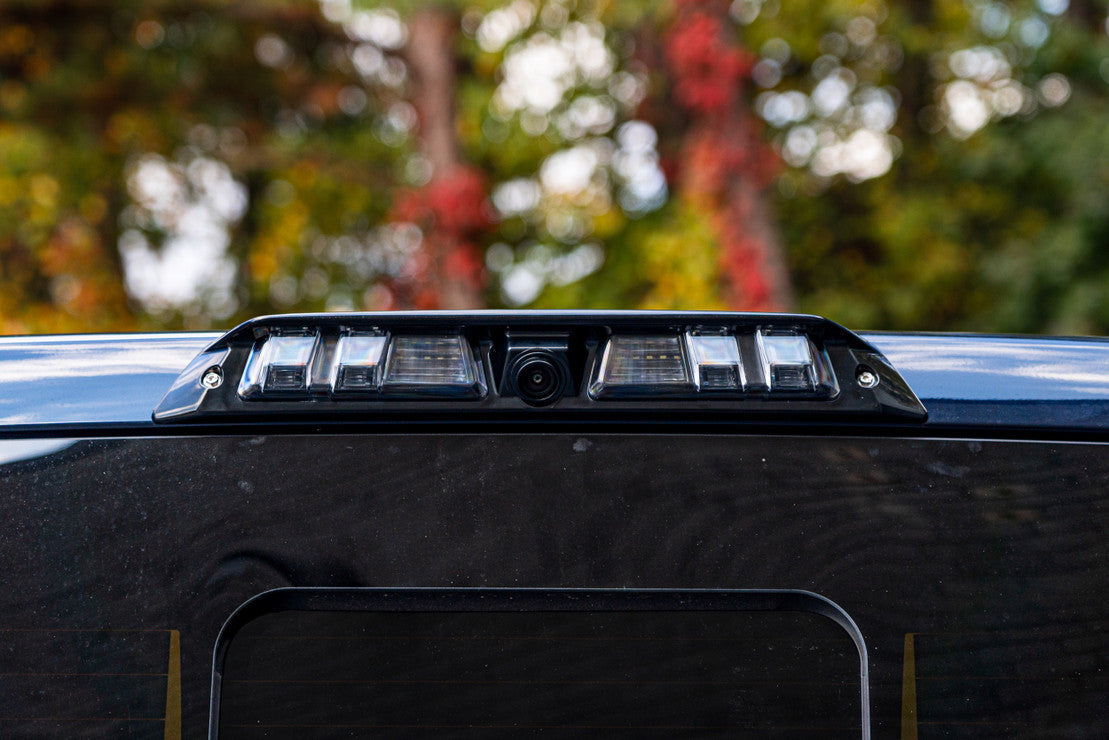

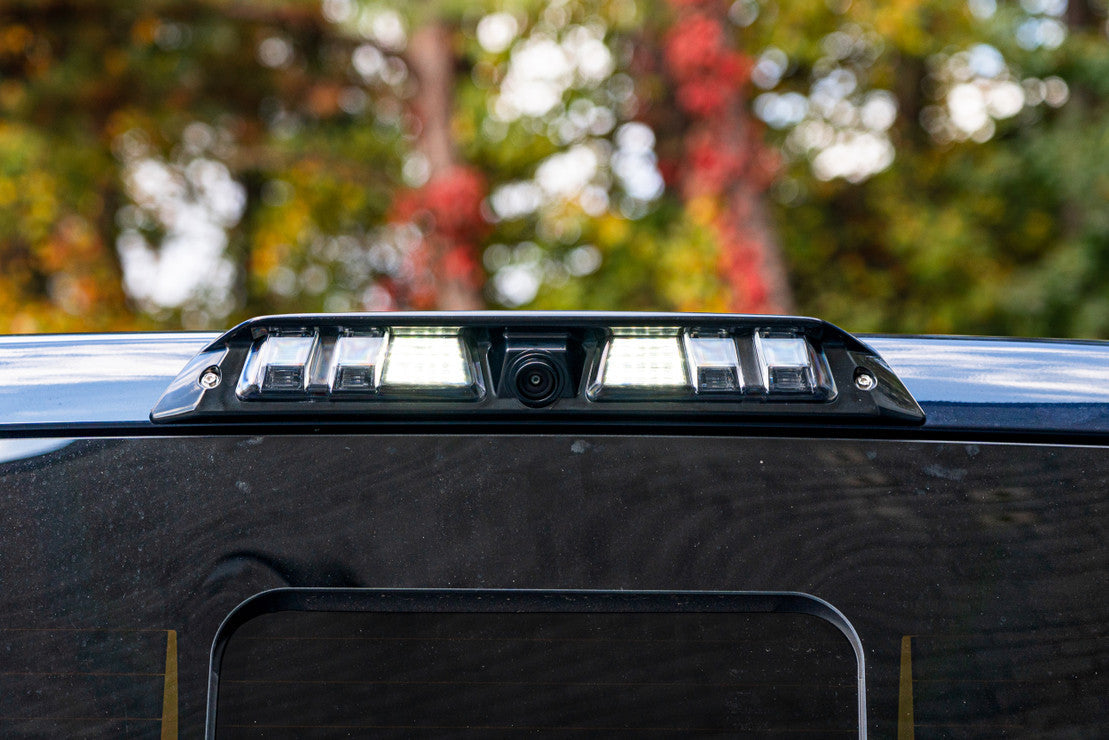

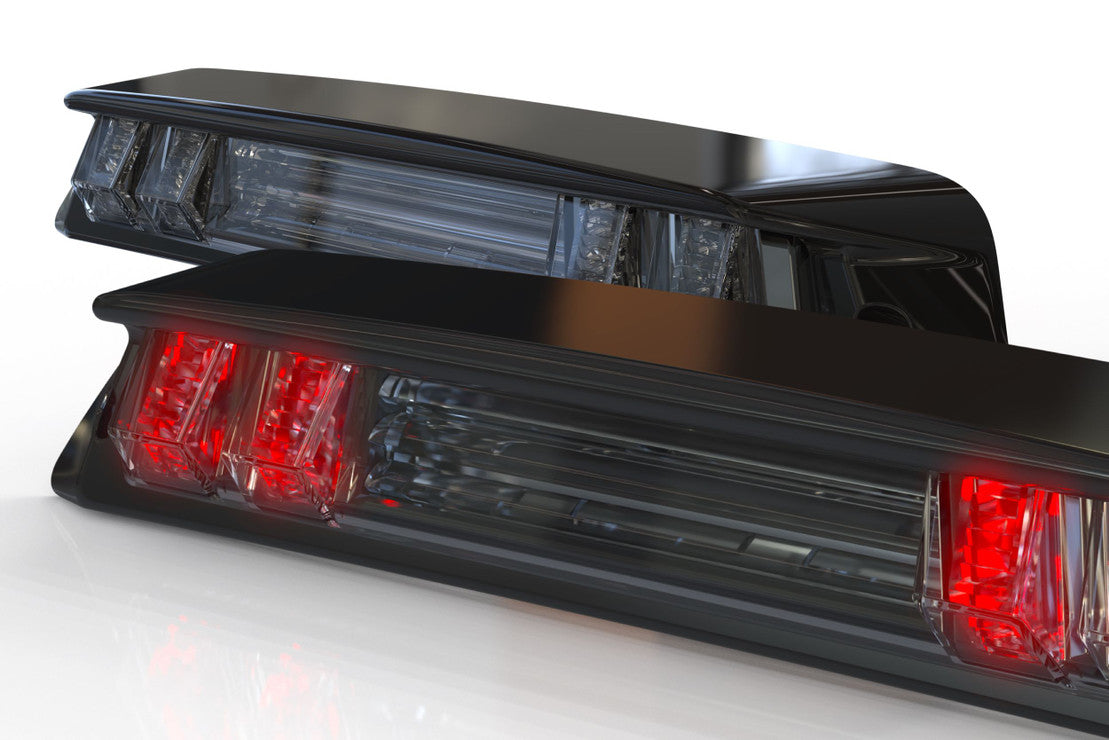

Optional Full LED 3rd Brake Light Assembly:

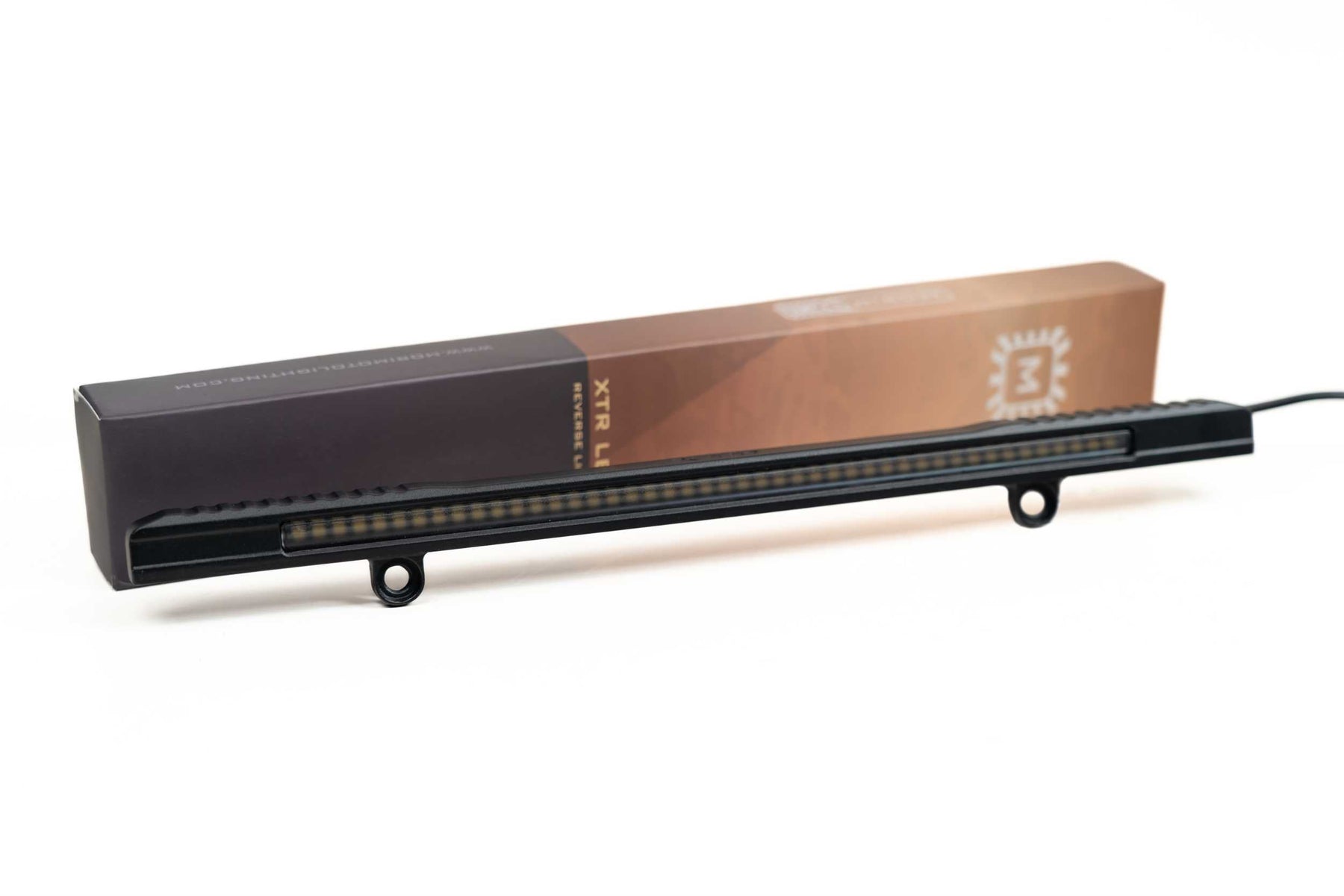

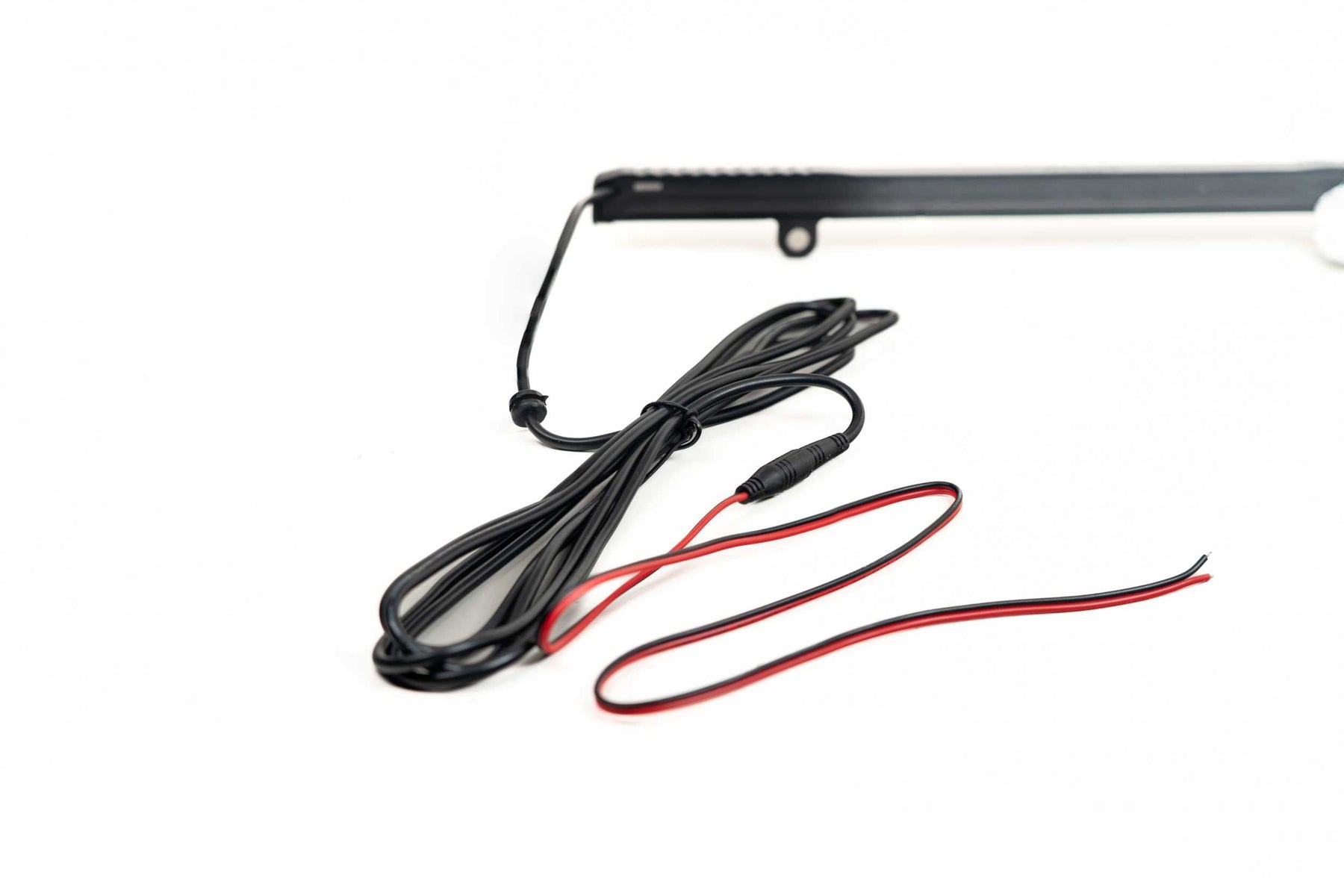

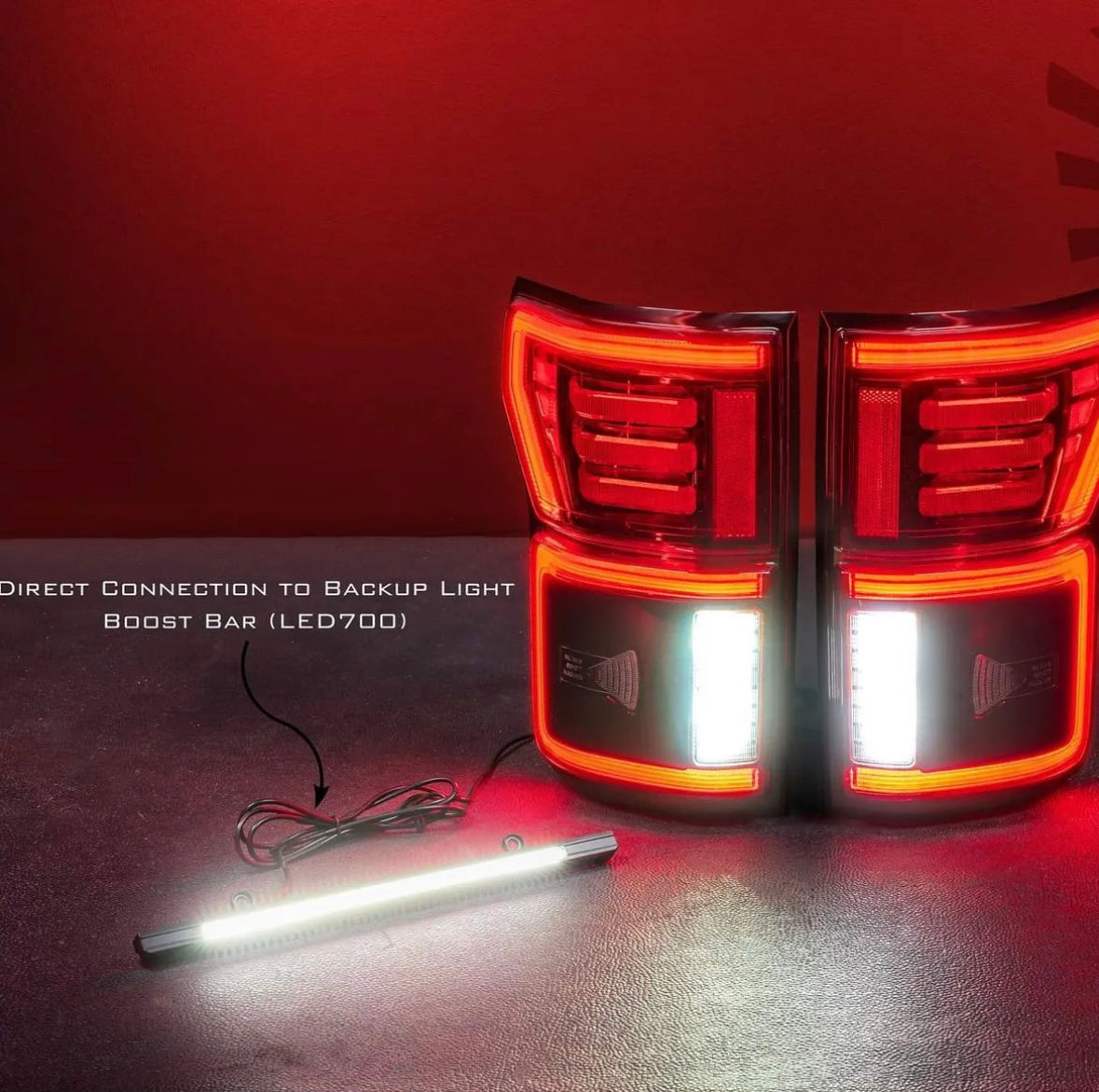

Optional Back-Up Reverse Boost Bar:
Package Includes:
- TAIL LIGHTS: 2x (One Pair)
- WIRING: Plug and Play Adapter Harness (For OE Halogen trucks)

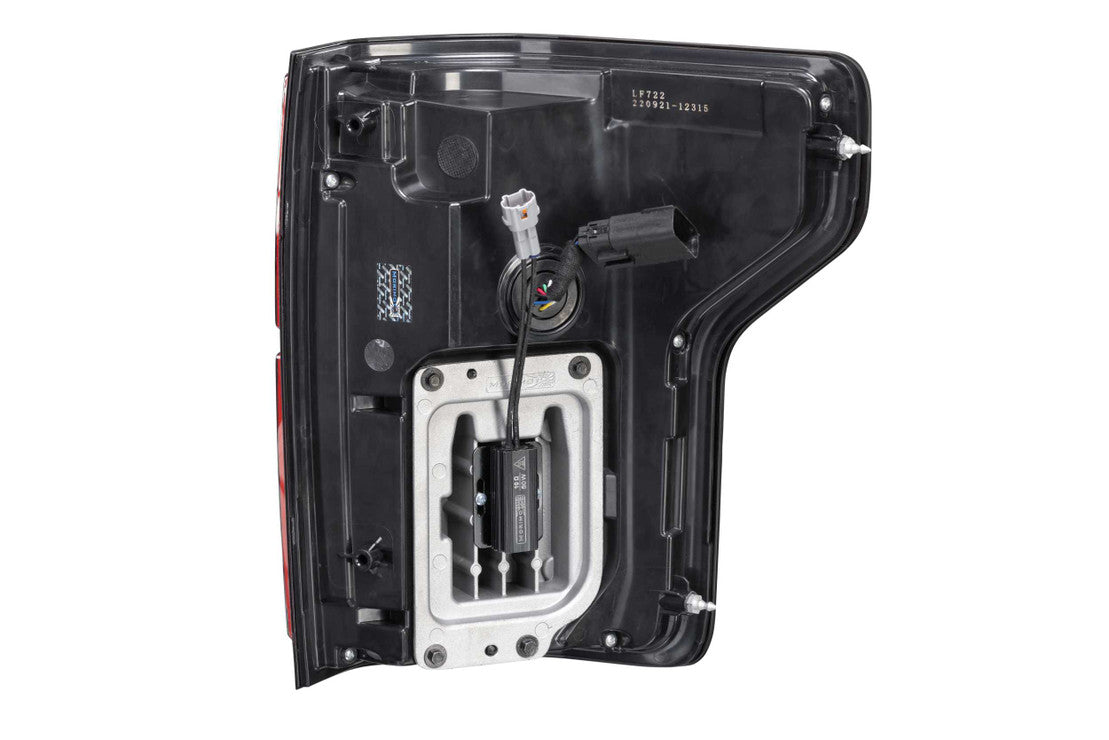

- BLIS BRACKETS: Die-cast radar mounts / heatsinks (Internal BLIS modules must be swapped)
- WARRANTY: 5 Years
Tech Specs:
- INPUT: Ford Multi-Pin OEM
- MATERIAL: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
- LIGHT SOURCE: SSC LED
- REVERSE LIGHT: White
- BRAKE LIGHT: Red (Bright)
- PARKING LIGHT: Red (Dim)
- TURN SIGNAL: Red
Replaces Ford Part #: FL34-13B505-AG, KL3Z-13405-A, KL3Z-13405-B, HL3V-13B505-F, FL34-13B505-C, KL3Z-13405-B, JL3V-13B505-EE, HL3Z-13405-A, KL34-13B504-GB, HL3V-13B504-FF, FL3Z-13405-H, FL3Z-13404-A
ULTIMATE FLEX: Compatible with all versions of the 15-20 Ford F-150, they will fit all trucks with OE halogen, OE halogen with BLIS, or the OE LED with BLIS, or the Raptor style tail lights... Yes you read that correctly. Even if your truck does not have the BLIS system, the XB tails will still fit, work properly, and add that high-end vibe to your truck. They will not however magically enable the BLIS function. Everything has been thoughtfully designed to be completely plug n play with the factory wiring harness and radar system, use all of the stock mounting points, and should not take more than 30 minutes to install both taillights.

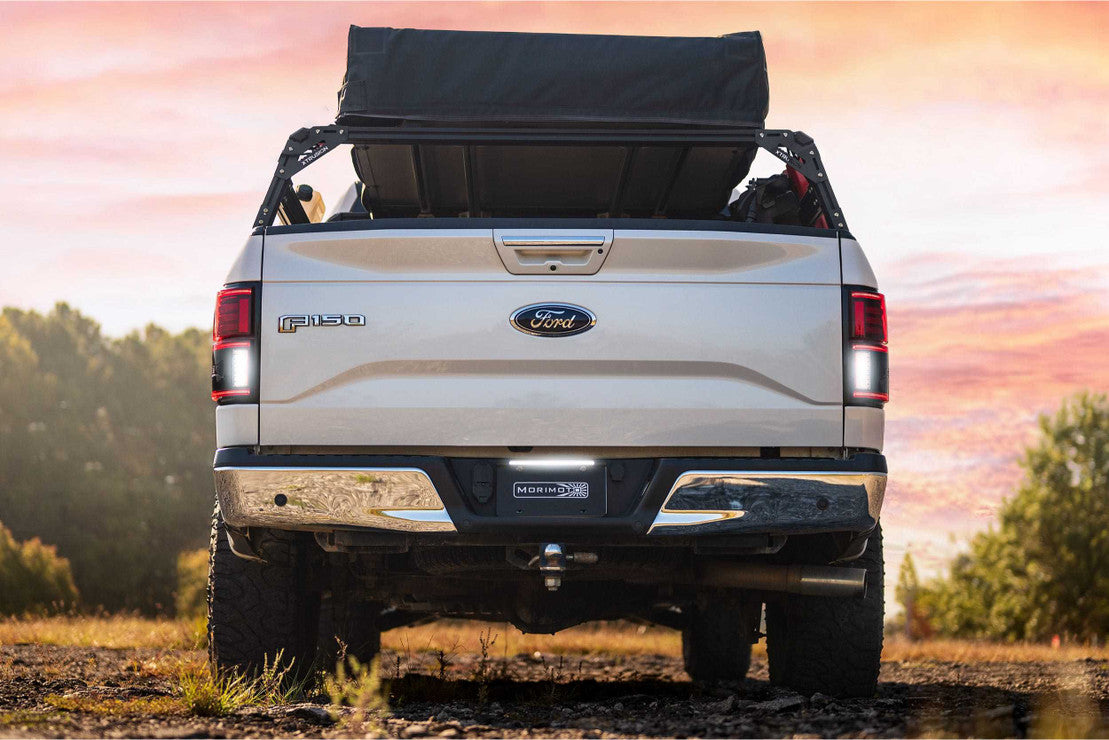

REVERSE LIGHTS: Are often over-looked, but not with the Morimoto XB tail lights for the F-150. While they come standard with powerful LED reverse lights, just wait, there's more! Morimoto's BLBB system allows you to plug n play with the optional LED Backup Boost Bar which mounts to the top of your license plate frame and provides an extra 5000 lumens of controlled light output in reverse. Yeah, Morimoto customers like to see where they're going in reverse too!
STYLE: Inspired by the design of the more modern OEM LED tail lights from the 18-20 F-150, these look right at-home on the rear end of the new F-150. An upper row of horizontal 3D Optics are illuminated from the rear with integrated TIR optics, and serve as the brake light and turn signal. The parking light optic around the outer edge of the lights mirrors the OEM LED setup, and is equally impressive in the intensity department day or night. Pair that with the surrounding muscular trim, optional smoked or red outer lens, and we've easily got what is the best-looking set tail lights on the road for this generation of the F-150!
STYLE AND SAFETY: All Morimoto tail lights are designed to comply with all DOT, SAE regulations for rear-facing lamps. We pride ourselves on offering stylish, high-performance and safe products for serious enthusiasts, which is why all new Morimoto products are verified by trusted third party labs for compliance and are backed with an industry-leading five year warranty.
FITMENT/COMPATIBILITY NOTES:
-
FORD F-150 TRUCKS: 15-20 (all)
-
OE LED + BLIS SYSTEM: 100% Plug n Play (Requires swap of OE Modules)
-
INCANDESCENT TAIL LIGHTS + BLIS: 100% Plug n Play (Requires swap of OE Modules)
-
INCANDESCENT TAIL LIGHTS: 100% Plug n Play (with included adapter harness)
Vehicle Compatibility:
- 2015 Ford F-150 & Raptor ( XL, XLT, Lariat, King Ranch, Platinum, Limited, Tremor, Raptor)
- 2016 Ford F-150 & Raptor (XL, XLT, Lariat, King Ranch, Platinum, Limited, Tremor, Raptor)
- 2017 Ford F-150 & Raptor (XL, XLT, Lariat, King Ranch, Platinum, Limited, Tremor, Raptor)
- 2019 Ford F-150 & Raptor (XL, XLT, Lariat, King Ranch, Platinum, Limited, Tremor, Raptor)
- 2020 Ford F-150 & Raptor (XL, XLT, Lariat, King Ranch, Platinum, Limited, Tremor, Raptor)
