17-19 to 20-22 Ford Super Duty F250 Front End Conversion Kit
Couldn't load pickup availability
Product Description

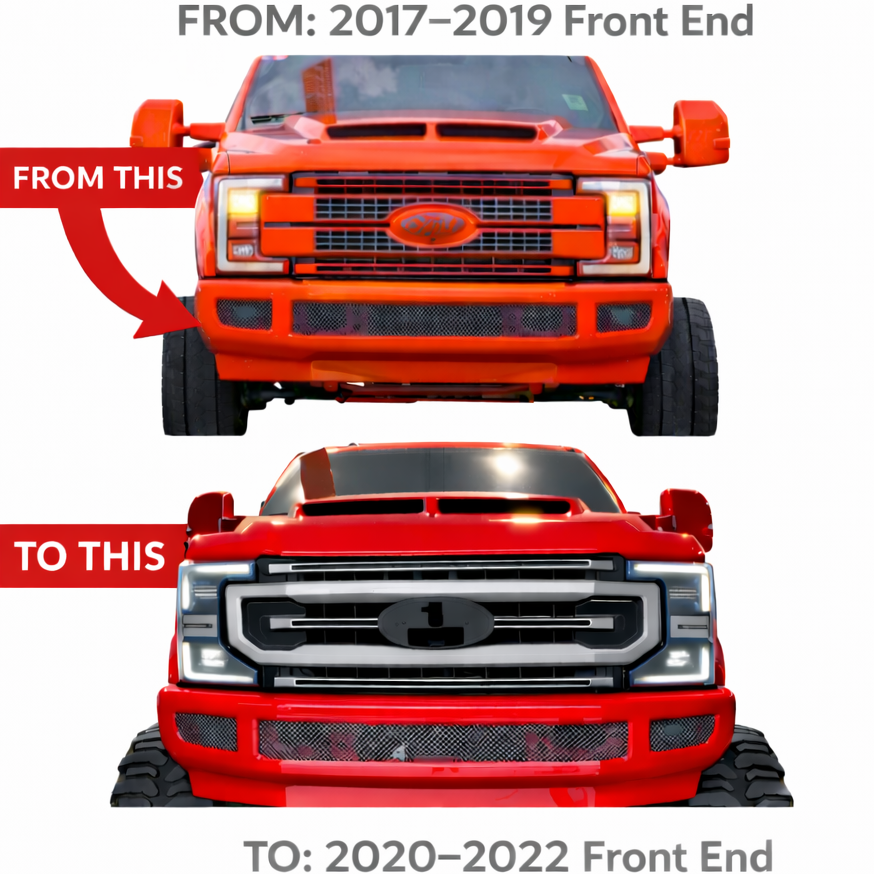

Affordable, easy to install, and fully functional front end headlight & grill conversion kit to convert your 2017-2019 Ford Super Duty F250 F350 to the 2020-2022 Ford Super Duty grill plus the optional Morimoto XB LED 2020-2022 Ford Super Duty headlights and LED grill! Unlike other kits that are twice the price and do not have high beam functions, this kit will allow 100% headlight functionality when paired with the 20-22 Super Duty Morimoto XB LED headlights. The headlight conversion harness IS NOT COMPATIBLE WITH FACTORY 20-22 SUPER DUTY LED HEADLIGHTS! If you plan on using factory 20-22 LED headlights, you will need to order a conversion harness separately and the high beams still do not function when using factory LED headlights.
WHAT'S INCLUDED:
CORE SUPPORT: 1x Morimoto Facelift Bracket (17-19 Super Duty)
ADAPTER HARNESSES: 2x 17-19 OE Halogen or LED to 20-22 MORIMOTO*** LED
ACCESSORIES: New stainless hardware and threaded clips
WARRANTY: Limited Lifetime
NOT INCLUDED: New 2020-22 Style Grille and Headlights (Required)
Click here to see more info on the 2020+ Super Duty XB LED Headlights here
Click here to see more info on the 2020+ XB LED Grill here
2017-2019 to 2020-2022 Ford Super Duty F250 F350 Front End Conversion Kit Demo/Installation Video:
COMPATIBILITY:
FORD SUPER DUTY: 2017-2019 (All engines / trim levels
WIRING: Adopts OE Halogen or LED on 17-19 trucks to 20-22 Morimoto XB LED Headlights**
RECOMMENDED GRILLE: Morimoto XBG (XBG10, XBG11, XBG12, XBG13)
RECOMMENDED HEADLIGHTS: Morimoto XB LED (LF508 Series)
**NOTE: Harness not compatible with 20-22 Super Duty OEM LED Headlights
TECH SPECS:
SUPPORT MATERIAL: Injection Molded PP GF 30 Fiberglass-Reinforced Polypropylene (Black)
WIRING INPUT: Ford Multi-Pin OEM Connection (17-19 standard)
WIRING OUTPUT: Ford Multi-Pin OEM Connection (20-22 standard)
PRODUCT DETAILS:
FRONT-END UPDATE: Thought you were done with your truck? Think again, because now that it won't cost you five or six grand to facelift the front end of your Super Duty, it's on. Our facelift kit includes an all-new core support and wiring that allows you to easily install the updated grille and headlights from the 2020-2022 Super Duty on your 2017-2019 truck and do it more affordably than ever before.
TURN KEY: Yes, this was (kind of) possible with OEM Ford parts, but you would still need to cut up a 2020+ Core Support to make it fit... and if your 17-19 truck had OEM LED headlights, you would then need to make or buy an expensive adapter harness to get the 2020+ headlights installed and working right. This kit takes the guess work out of all that. It makes the upgrade bolt on and plug n play.
HEADLIGHTS AND GRILLE: A set of 2020+ Style headlights and a new grille are required, but not included. We have thoroughly tested the full upgrade with the Morimoto XBG grilles and XB headlights but believe you should also be able to use OEM Ford parts if preferred. More information on the recommended options below.
MORIMOTO XB LED HEADLIGHTS: Have become a staple in the Super Duty community for their performance, quality, and style. The top of the line XB LED headlights utilize four Bi-LED projectors to produce maximum output, feature a white or amber LED Daytime Running Light with sequential turn signal. The more affordable Hybrid version is still a top performer with its dual LED projectors but drops the sequential LED signals in lieu of a central bulb-based setup. Backed with a 5-year warranty, picking up a set of these is a no brainer to finish up the facelift.
MORIMOTO XBG GRILLES: The XBG grilles are highly customizable. You can select from either White or Amber LED Daytime Running Light Bars, and two colors for the trim pieces. Whether your truck is stacked with chrome or color-coordinated to the max, there is a spec that will be perfect for you. The front trim pieces can be removed with ease, painted (or wrapped), and then reassembled. Both the Chrome and Gloss Black versions are ready to install right out of the box, but if you prefer to color match-- we recommend going with the black base grille. Either way, the finished look is going to be a game changer.
NO COMPROMISE: All the mounting points will line up properly. All the harnesses and other accessories that attach to the original grille support still have homes. The structure is made of the same OE-grade 30% fiber-reinforced polypropylene. None of the integrity of the original setup has been compromised or rigged to make this work.
Vehicle Compatibility:
- 2017 Ford Super Duty F250/F350/F450 Trucks (XL, XLT, Lariat, King Ranch, Platinum)
- 2018 Ford Super Duty F250/F350/F450 Trucks (XL, XLT, Lariat, King Ranch, Platinum, Limited)
- 2019 Ford Super Duty F250/F350/F450 Trucks (XL, XLT, Lariat, King Ranch, Platinum, Limited)
Grill Bar FAQs
Grill Bar FAQs
How long do my grill bars take to ship?
Our grill light bars are fabricated by hand and typically have a lead time of 1-3 business days though some delays may occur during holidays or if materials are on backorder. We greatly appreciate your patience!
How do I install my grill accent bars?
A majority of our grill accent bars have metal studs on the back of the metal frames that are pushed through the gaps of the grill in specified locations, then secured to the grill using the provided backing plates, washers, and nuts. Typically, removing your grill is the easiest way to ensure you have secured the grill bar properly but some grill bars can be installed without removing the grill if you have small hands!
Newer GMC grill bars use automotive-grade 3M adhesive backing to secure the bar to the top trim piece so install is a breeze.
Don't worry - we include general installation instructions in the package for each model.
How do I power my grill accent bars?
Each grill bar has a red positive wire lead and a black negative wire lead. These will connect to your preferred 12V power source on the vehicle which could be connected to a switch or upfitter switch, tapped into a fuse that turns on/off with the vehicle, wired to a relay, or spliced into your vehicles DRL wire.
WANT TO MAKE WIRING QUICK AND EASY? Add on the optional Plug & Play DRL Power Harness for a headache-free install! The DRL power harness plugs into the back of your headlight, then into the vehicles headlight harness. It has a positive and negative wire lead coming off of the headlight DRL power wires so that you can quickly connect the grill bar power wires. This allows the grill lights to automatically turn on and off with the vehicles DRL or parking lights. No cutting, splicing, or complicated wiring required!
Do the grill lights have a warranty?
Our grill lights come with a industry standard 1 year warranty which covers LED failure and water intrusion. The warranty does not cover physical damage from road debris or accidents, wires being forcefully ripped out, etc. If your grill bar has issues passed the warranty period, contact us and we will get a replacement set sent out for a heavily discounted price!
What are the technical specifications of the grill lights?
Each grill bar has IP67 certification, 5000K pure white color temperature, 50,000 hour LED lifespan, with bolt-on or 3M adhesive installation. They are 100% waterproof & dust proof, require no in-shop modifications, and include a 12 month quality assurance.
Grill Bar Options
Grill Bar Options
Frame, LED & Lens Color - Choose from silver or black metal frames. Silver looks best with chrome grills, black looks good with blacked out or chrome grills. The lenses come in a white finish or smoked finish. then, choose from white LEDs or amber/orange LEDs.
Plug & Play Wiring Harness - Add on the optional Plug & Play DRL Power Harness for a headache-free install! The DRL power harness plugs into the back of your headlight, then into the vehicles headlight harness. It has a positive and negative wire lead coming off of the headlight DRL power wires so that you can quickly connect the grill bar power wires. This allows the grill lights to automatically turn on and off with the vehicles DRL or parking lights. No cutting, splicing, or complicated wiring required!
LED Dimmer Controller - This is a controller that goes between your grill bar and the power source. It includes a handheld remote that lets you adjust the brightness of the LEDs, select different flashing/strobing frequencies, or power the lights on and off.
Sequential LEDs - The LEDs will do a scanning, sweeping startup sequence when they first power on. This option is only available on some of our grill lights.
Center Grill Lights - These are 2 smaller grill accent lights that go in the center of the grill. This option is only available on some of our grill lights.
