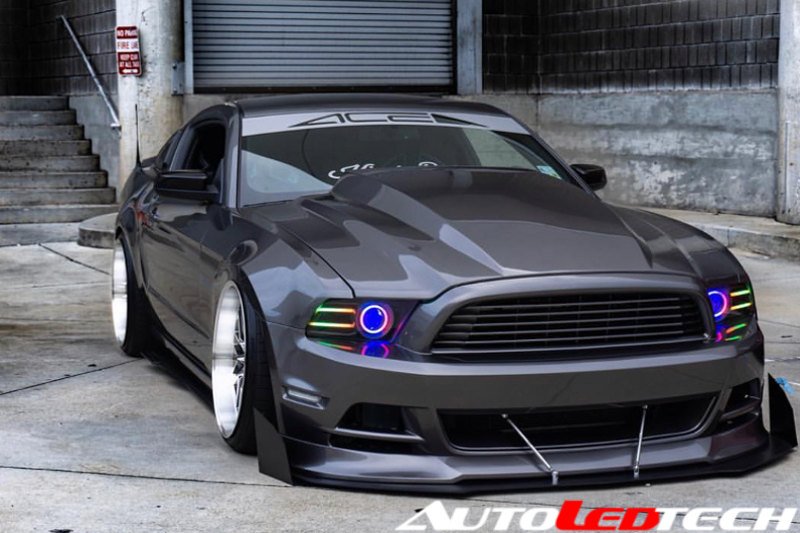

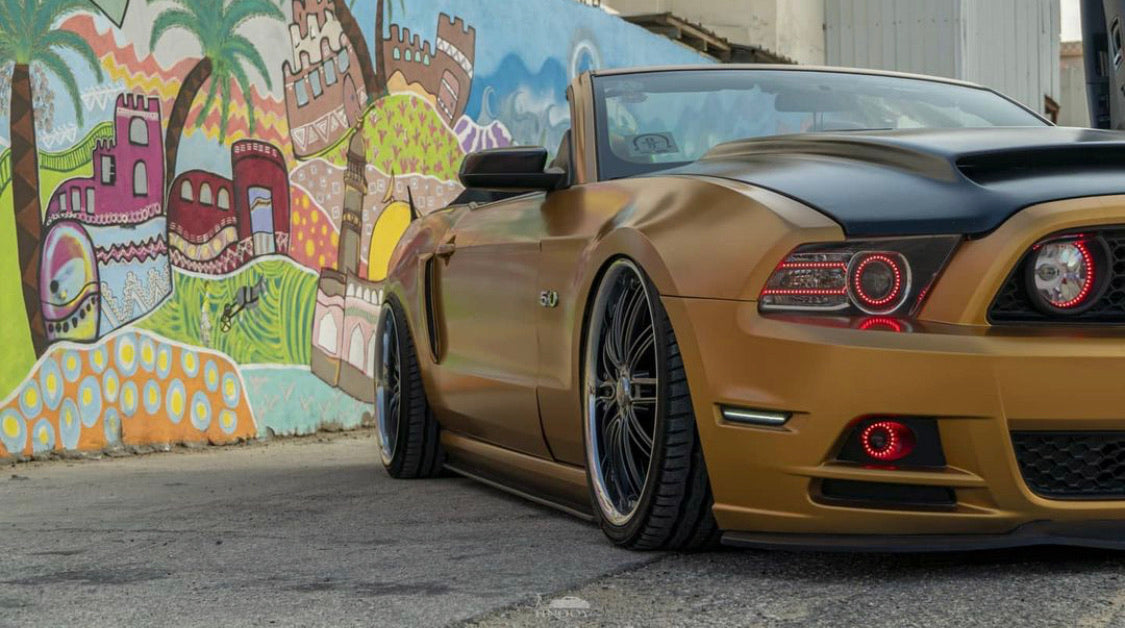

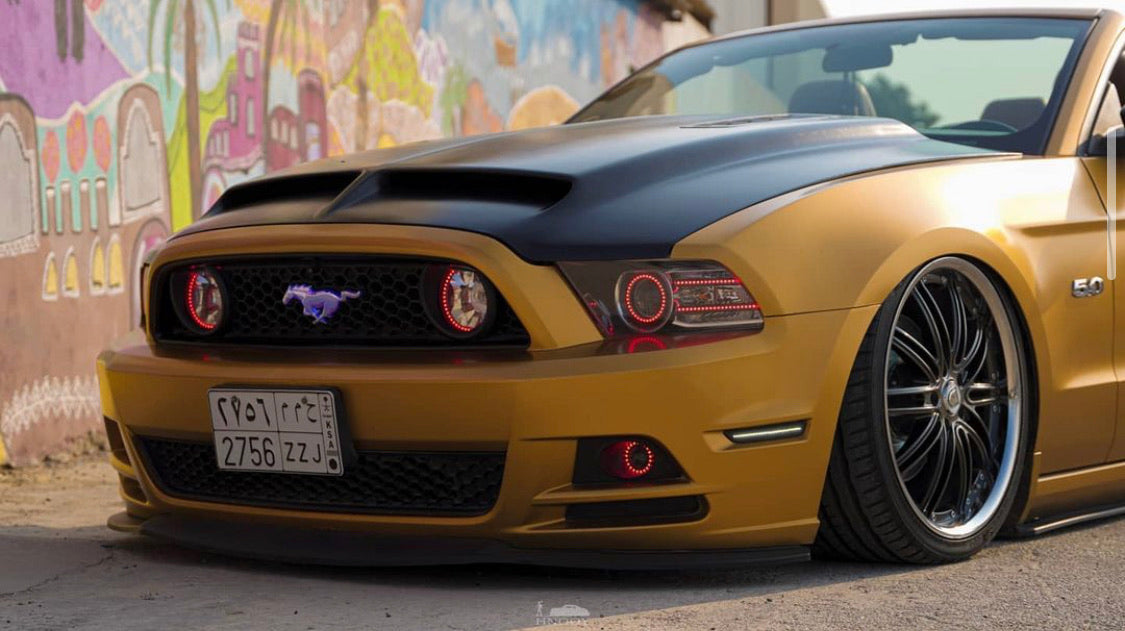

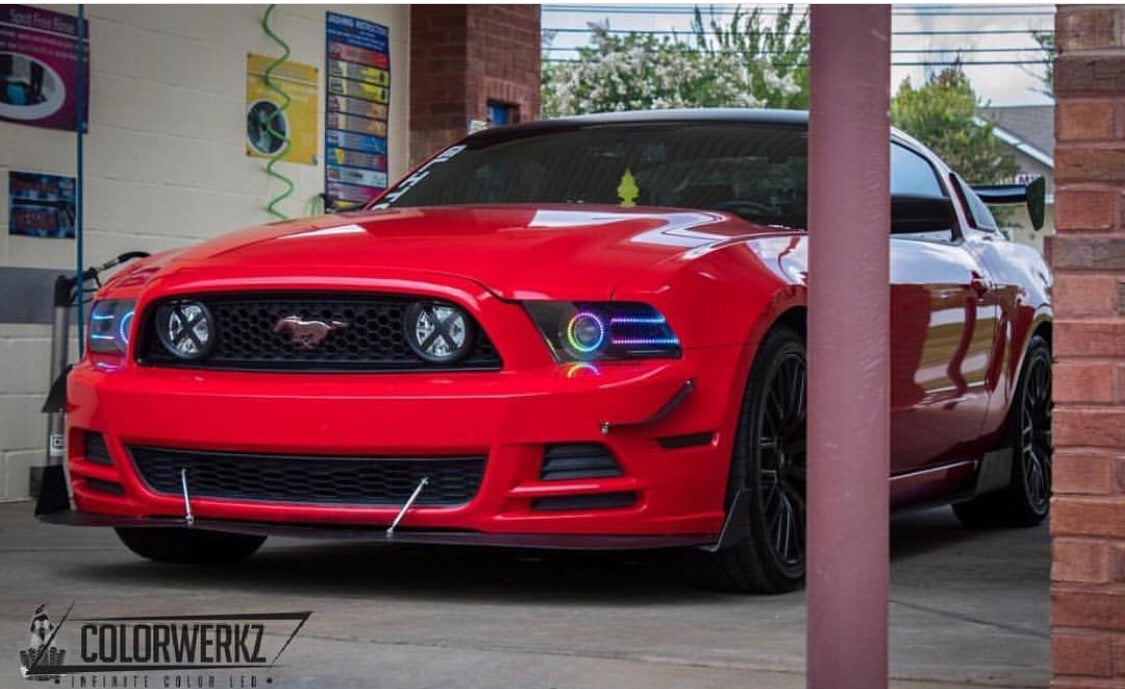

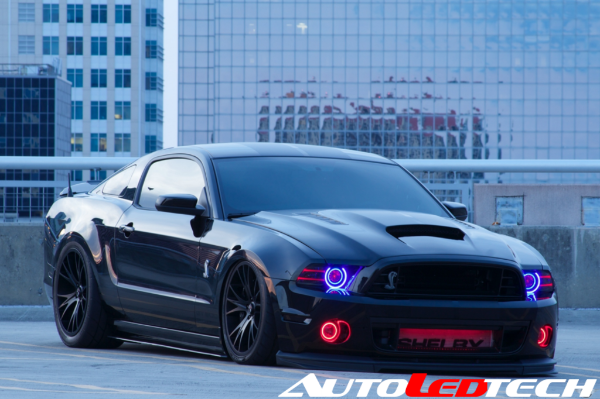

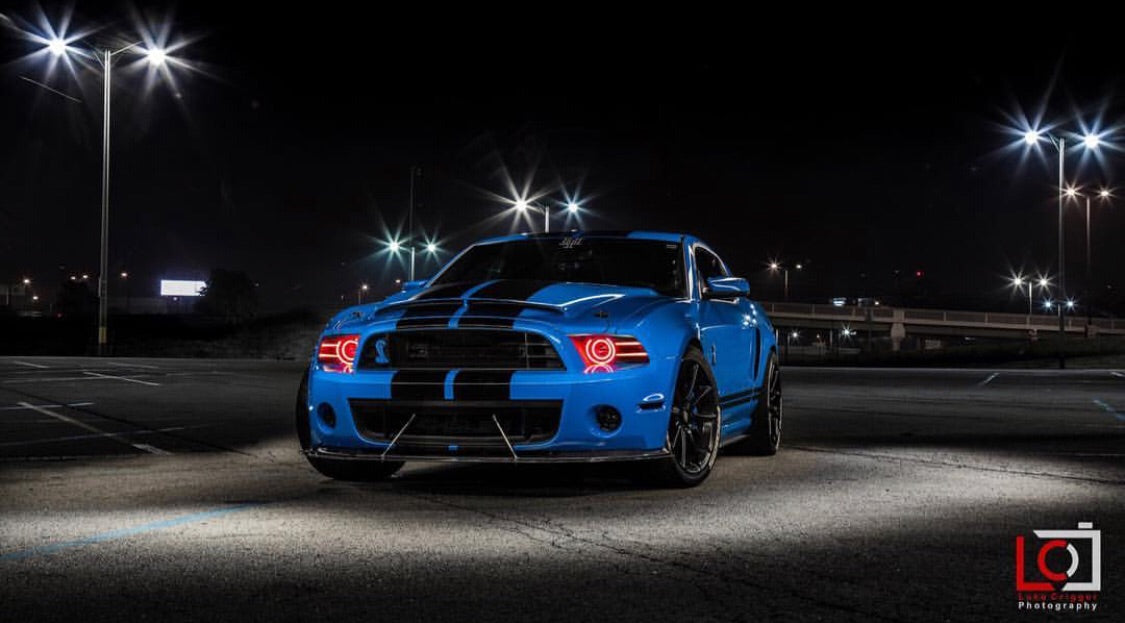

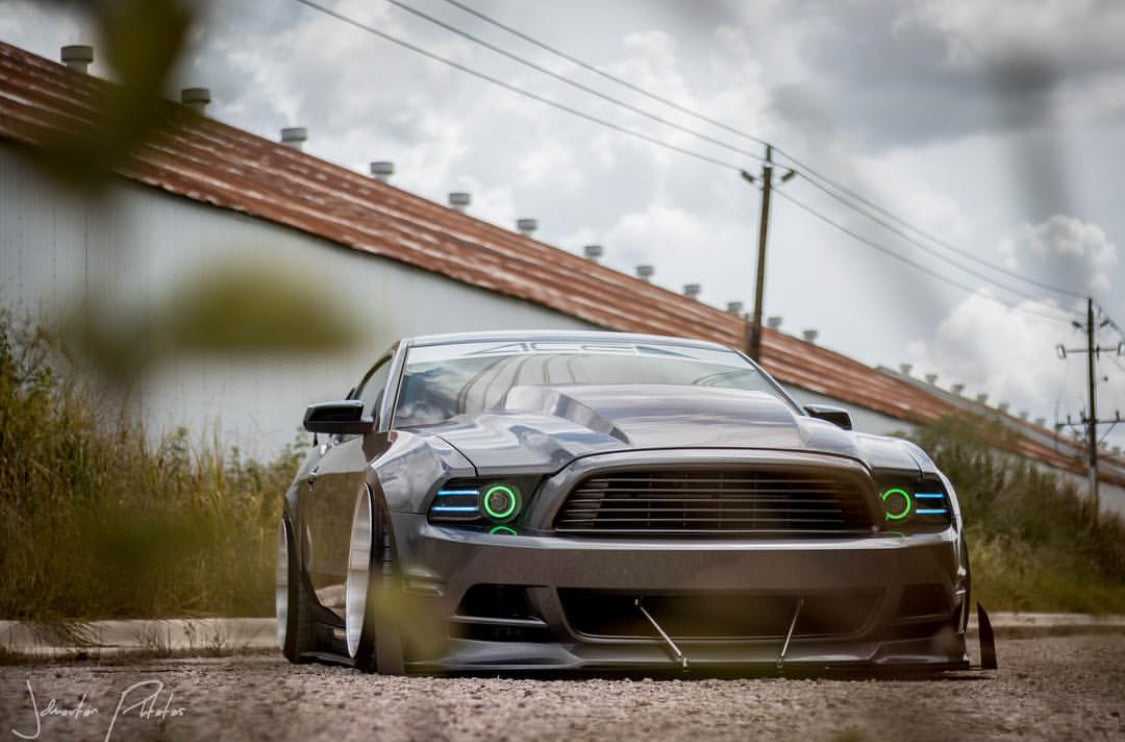

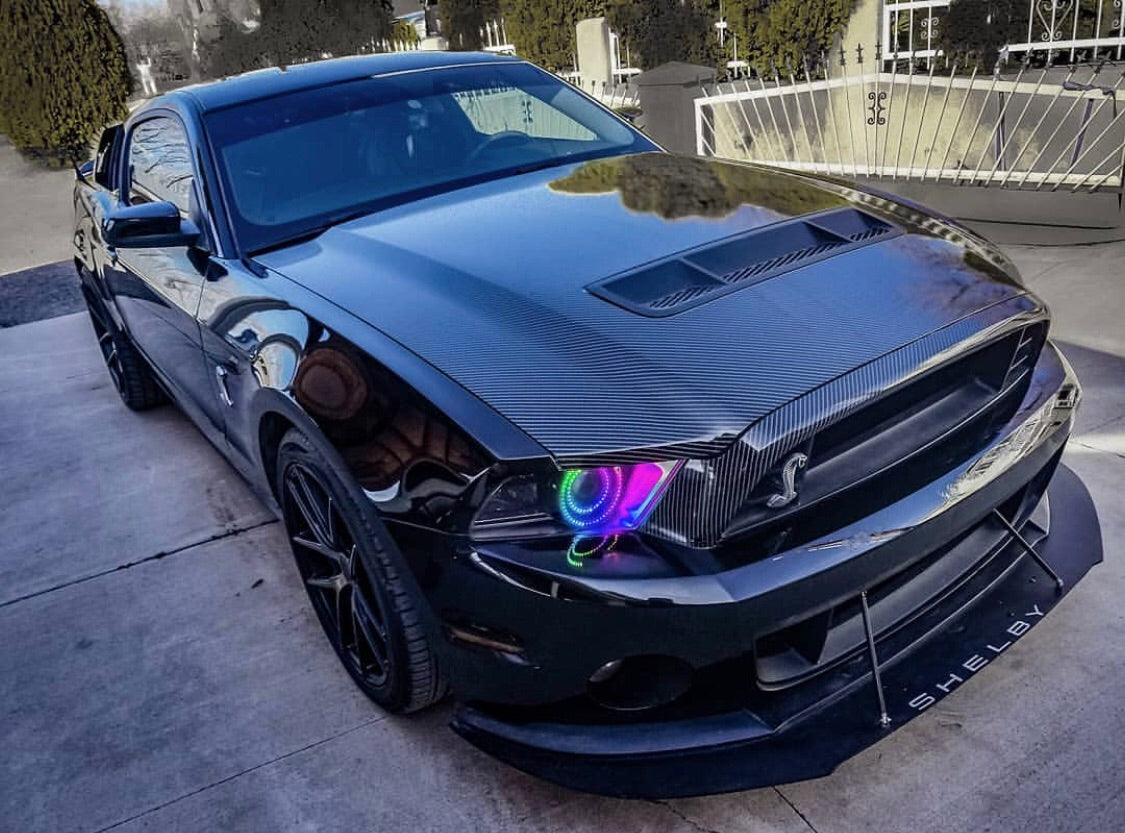

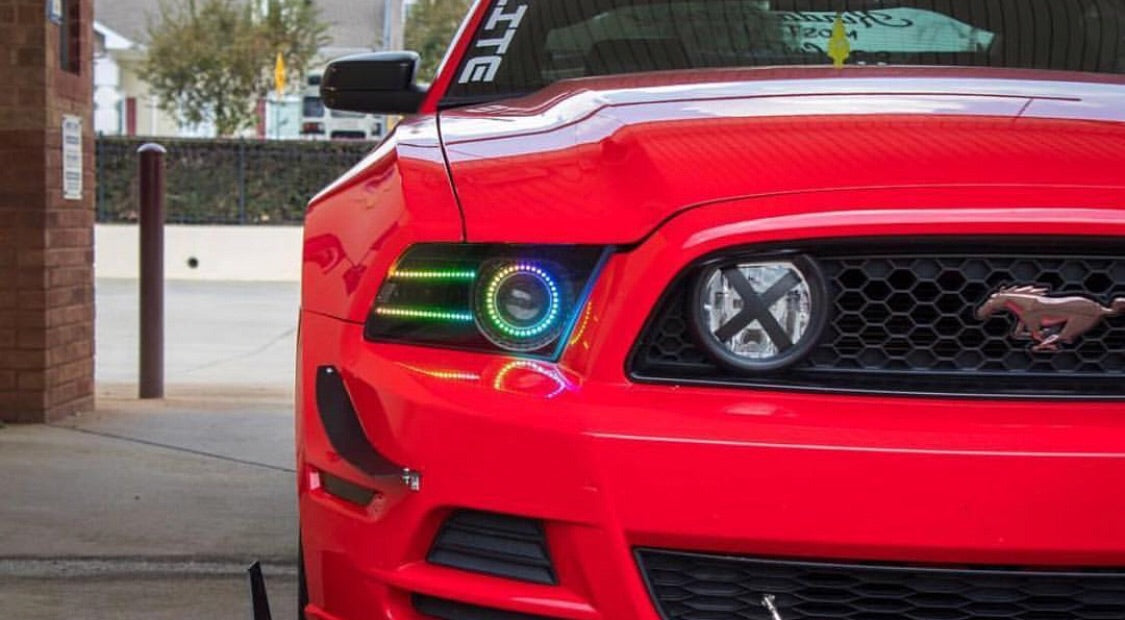

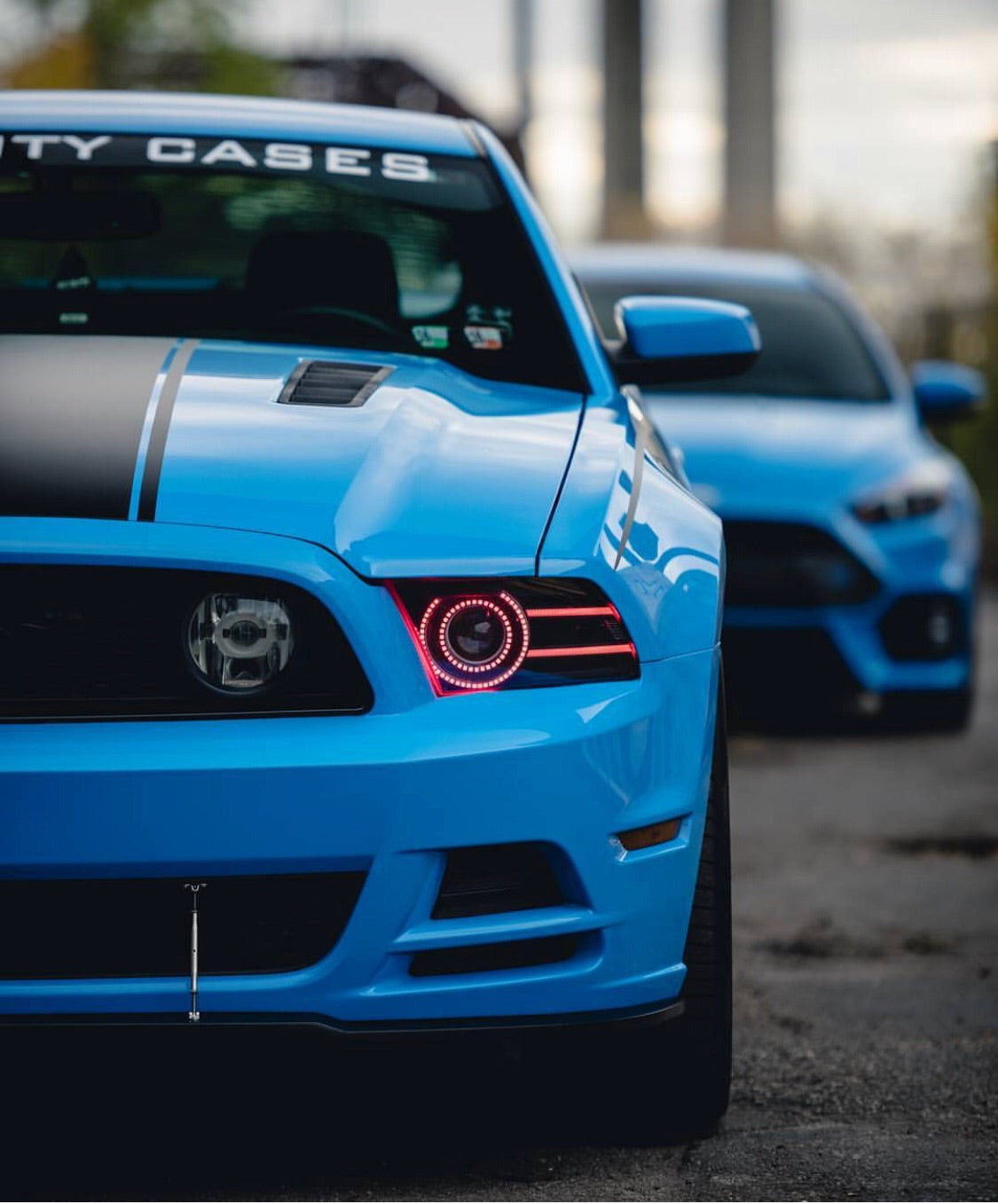

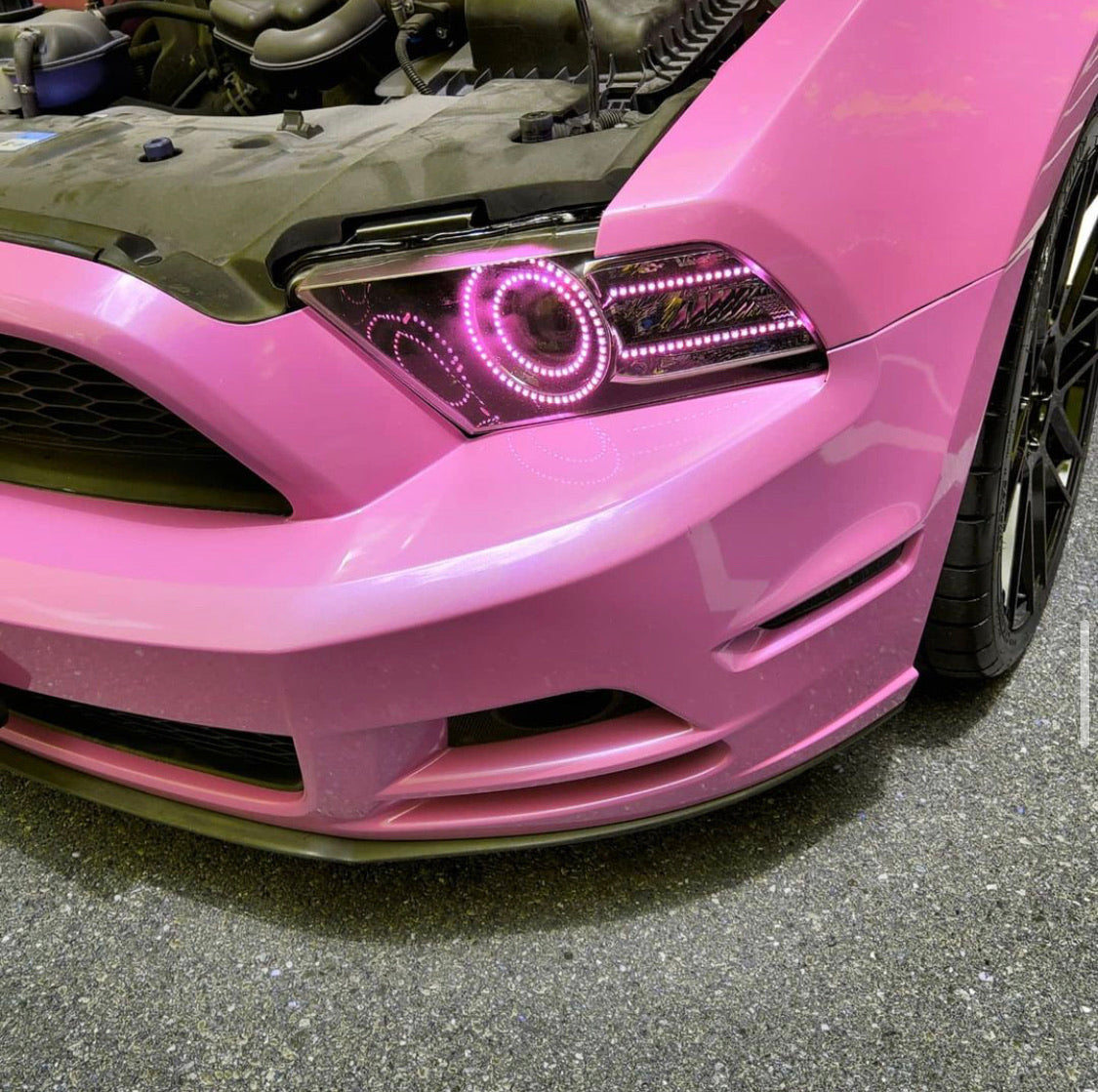

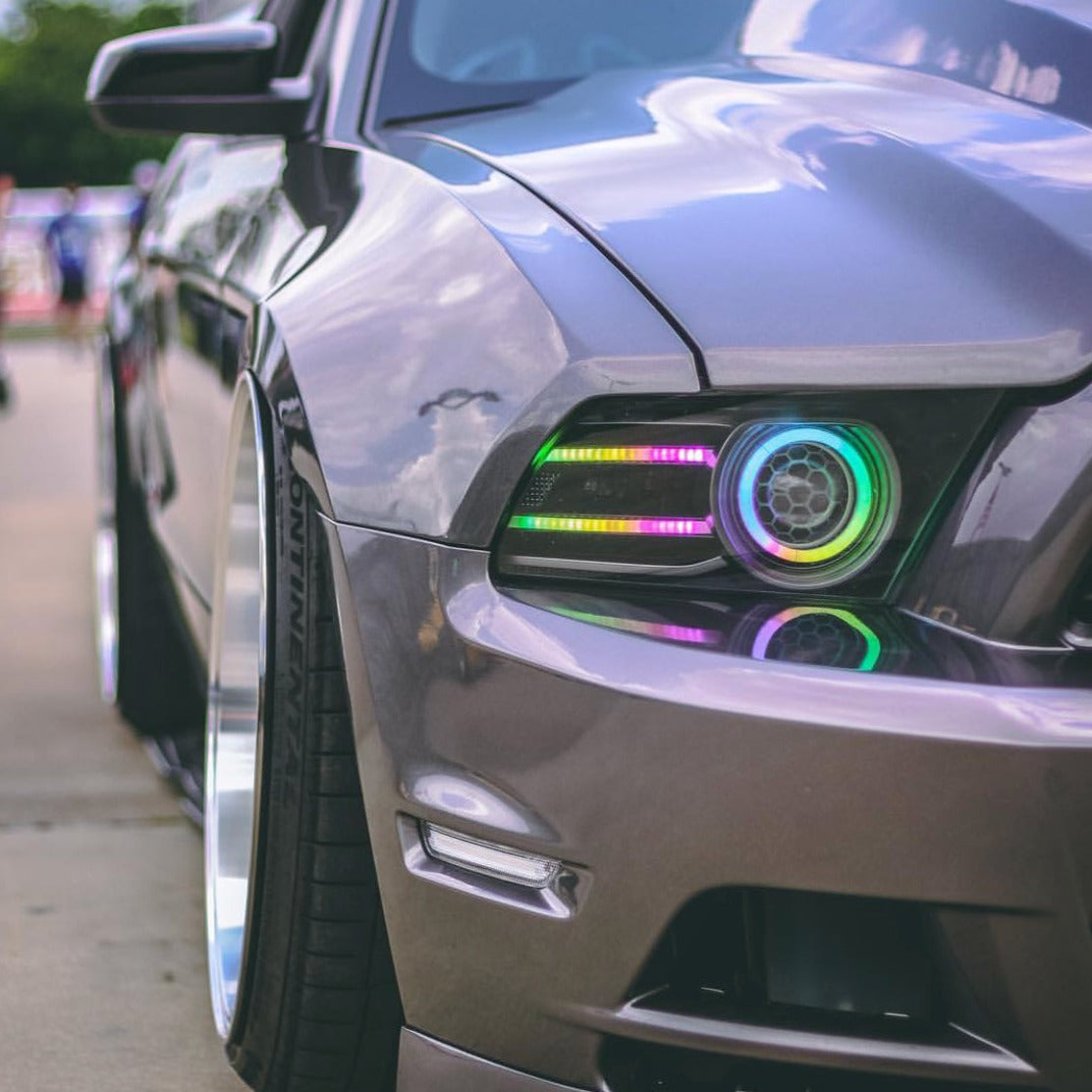

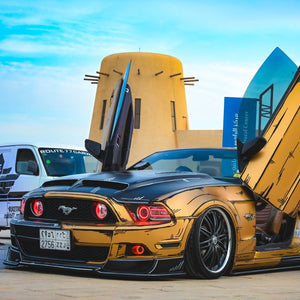

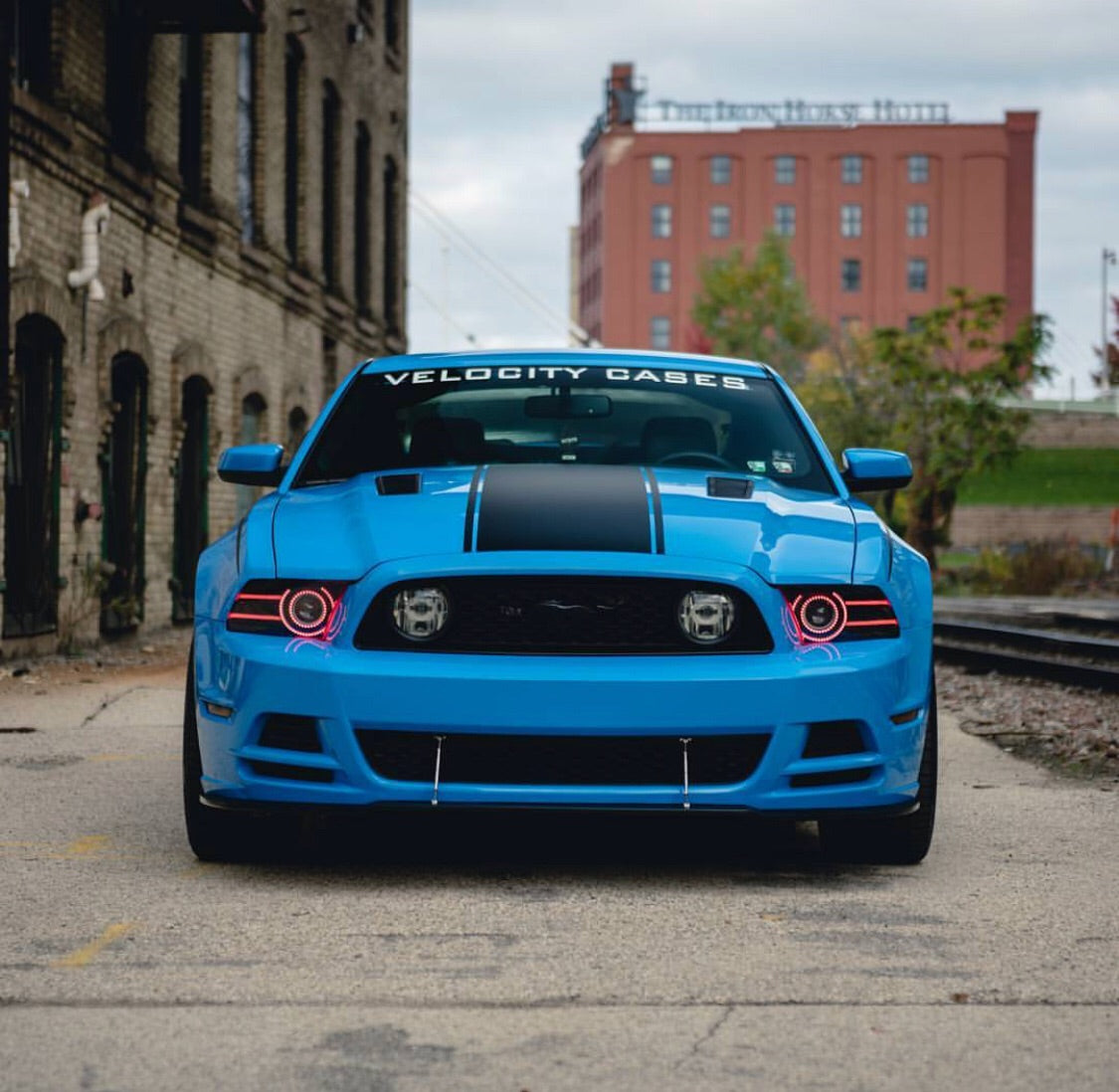

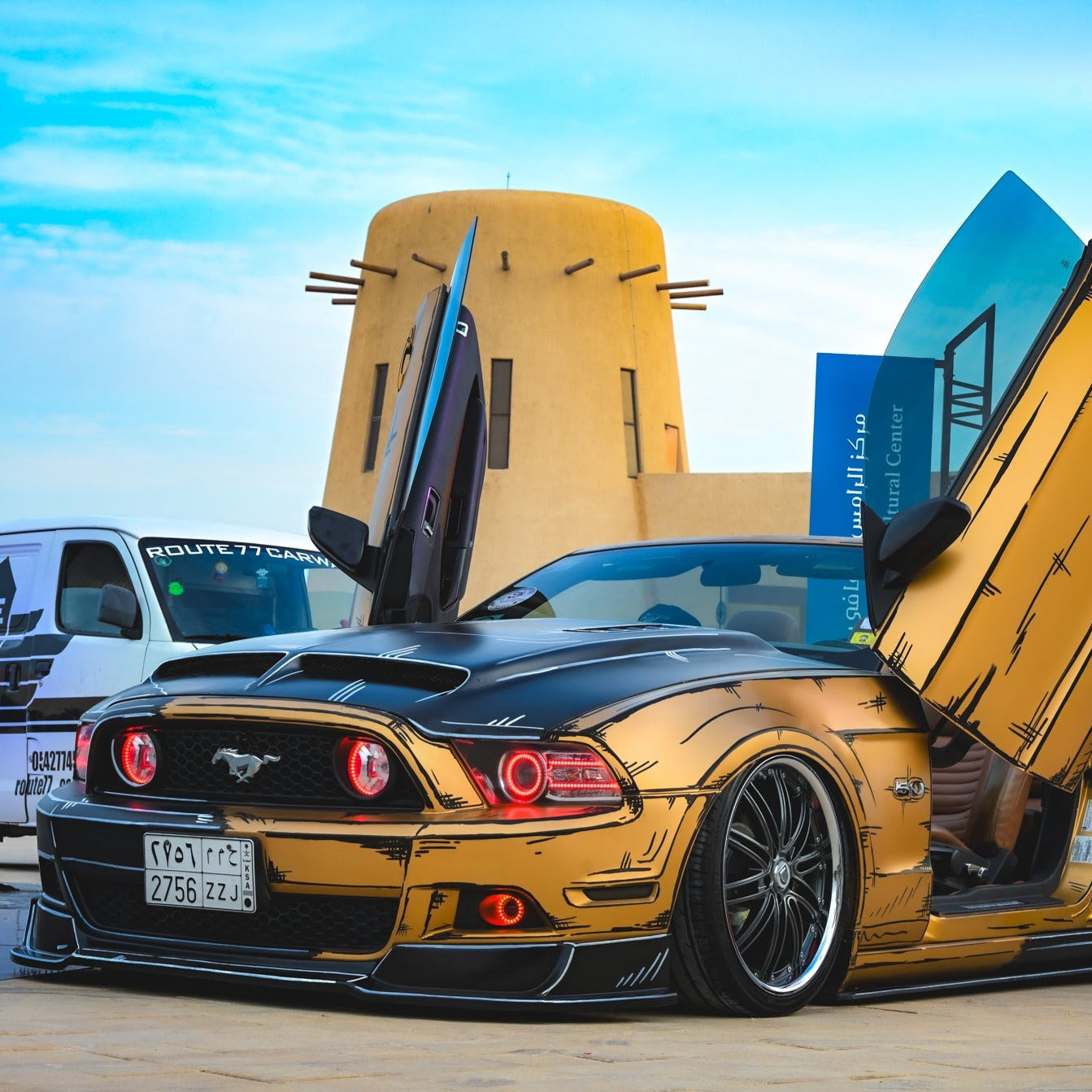

2011-2014 Ford Mustang RGBW Flow Series LED Projector Halo Kit

What is a halo or DRL board?

A halo is a circular or ring-shaped LED light, typically used for DRLs or as an accent light. Halos can also be made in other shapes to fit a specific headlight designs. DRL boards are LED circuit boards designed in the same shape as the headlights factory DRL board, but with our color-changing LEDs. this design reduces the modification required when installing color-changing LEDs.

Is this a complete headlight assembly?

No, this is ONLY the halo and/or DRL boards kit that you will install inside of your existing headlights by opening them up and modifying them. If the title and description says halo or DRL kit, it is not a complete headlight assembly. If the title and description says prebuilt headlights or headlight assemblies, then it is the entire light.

What is the difference between Flow Series and RGBW?

Flow Series RGBW LEDs can change to any solid color, pure white, plus hundreds of moving, multicolor, flowing patterns. Sequential turn signal/DRL startup functions are available with most of the bluetooth controller options.

RGBW LEDs can change to any solid color, pure white, plus several flashing/fading patterns. Flashing turn signals come standard with most RGBW products & controllers.

How do I install my halo or DRL kit?

Here is a general installation guide for halos & DRL board kits. For installation guides & videos for your specific vehicle, you can typically find many videos or forum posts for your model by typing "How to install led halo (or) DRL boards for *vehicle year range*make*model*"

How do I wire my halo or DRL kit?

Check out the "Guides" tab on our website for wiring diagrams and instructions. An instruction pamphlet will be included with most orders. Click here for Flow Series wiring. Click here for RGBW wiring. Click here for Blueghozt wiring.

What are halo diffusers?

Halo diffusers are a semi-transparent cover that goes over the halos so you do not see the individual LED dots. They create a smooth, uniform light output for your halos. these are available in select sizes in either a frosted white finish or smoked finish.

What are demon eyes?

Demon eyes are a small LED light that give the headlight projector lens (where the headlight bulb typically shines out) a glowing effect that can change to any solid color. These are typically controlled separately from your halos/DRLs and DO NOT replace your actual headlight bulbs!

What are projector halos?

Projector halos are LED halo rings (typically circular) that go around the projector in your headlights. The projector is the area/piece where your headlight bulb shines out of.

Flow Series & RGBW Bluetooth 2.0 (PRO) Controller

New and improved Flow Series PRO 5V Bluetooth App + OPTIONAL Handheld remote features a redesigned app with brand new features including controller grouping, renaming, favorites, selective connectivity (no unrelated bluetooth devices show up), and a handheld remote so you can quickly control the lights without opening the app! It also has input wires for turn signals, DRL, and brake so your halos/DRLs can mirror those functions. This controller is compatible with all 5V flow series halos, DRLs, and strips that have 3-pin JST connectors.

• Grouping Function: Seamlessly pair multiple controllers together to create distinct lighting zones, ensuring synchronized performance across all connected lights.
• Personalization: Easily save your favorite colors and patterns, tailoring your vehicle's aesthetics to suit your mood or occasion.
• OEM+ Function: Turn signal, DRL, and brake inputs so your halos can mirror OEM functions.
• Renaming Capability: Customize the name of each controller for simple identification, enhancing ease of use within the app.
• Selective Connectivity: The dedicated app is designed to connect exclusively with PRO controllers, avoiding clutter by not displaying other Bluetooth devices in the vicinity.
• Extended Features: Explore a variety of additional functions designed to maximize the utility and enjoyment of your automotive lighting setup.

Compatible with all 5V Flow Series halos, DRLs, and strips with 3-pin JST connectors. The controller has (4) 3-pin barrel connectors, inline fuse, and hooped power + ground connectors. It also has turn signal, DRL, and brake input wires.

Flow Series BlueGhozt Advanced Controller

The BlueGhozt Lite 2.0 bluetooth addressable Flow Series LED controller allows you to create your own customizable addressable LED patterns and show modes, custom start-up/shutdown animations, custom turn signal patterns, NEW reverse light input trigger (create your own pattern/mode when you go into reverse), LED diagnostic, and board layouts. The controller has inputs/triggers for your vehicles startup/shutdown, turn signals, brake lights, and reverse lights. You can also sync multiple BlueGhozt controllers together in the app to control everything together at the same time. The controller uses uses the Blueghozt app on your iOS and Android device and is compatible with ws2811, ws2812b, SK6812, and similar Flow Series RGB/RGBW addressable LEDs (Neopixel/Neoprism). The Blueghozt controller supports both RGB Flow Series and RGBW Flow Series LED types and is compatible with both 5V or 12V versions of addressable LEDs. It provides similar animation capabilities as the original Ghozt module.

In order to signal the lights to perform the startup/shutdown/turn signal features, you will need to find the vehicles DRL and turn signal wires and tap/splice into them.  ETC.

Features:

• Four 12V inputs, for left turn, right turn, park, and brake
•  Controls two chains of addressable LEDs up to 350 each! (260 for RGBW Flow)
•  Fully configurable through Bluetooth with our iOS/Android app!
•  New features delivered over the air through our app updates!
•  Sequential turn signals
•  F1-style braking
•  Parking/running lights
• Reverse lights
•  Show modes triggered via Bluetooth
•  One module controls two turn signals
•  Unlimited fully customize-able show modes can be saved with the app
•  Adjustable turn signal timing to car’s flasher unit
•  Very low power drain while in operation, sleep mode when idle
•  Small form factor
•  Includes a protective plastic housing
