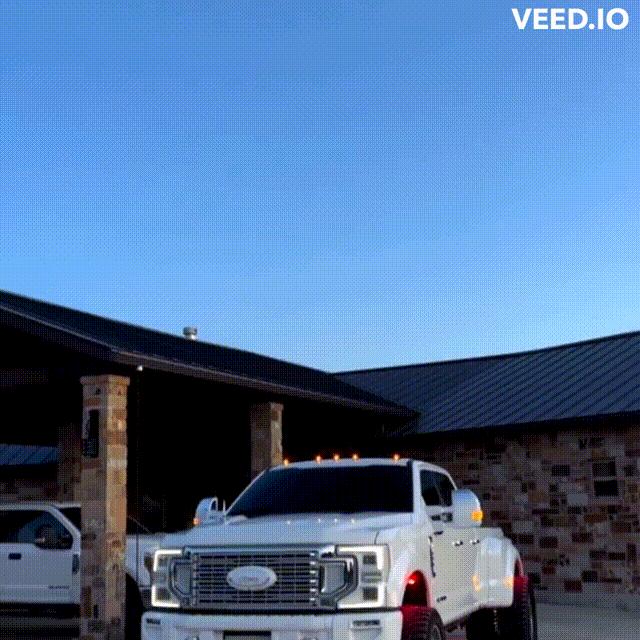

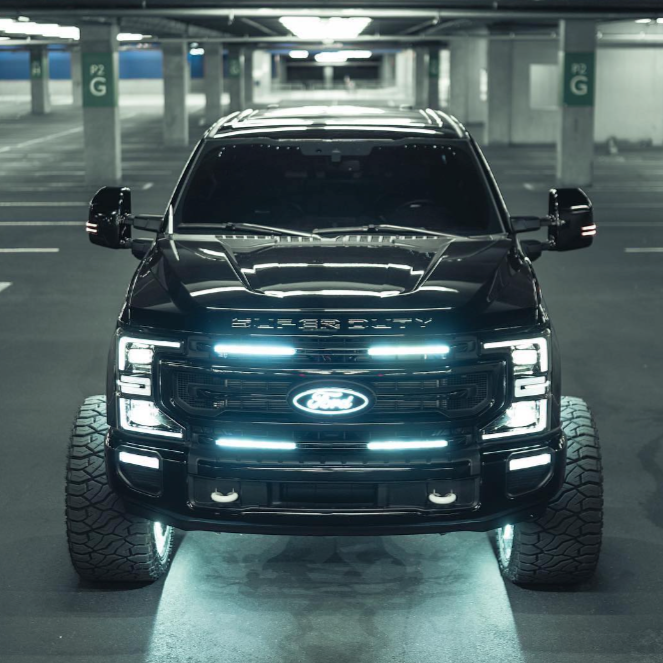

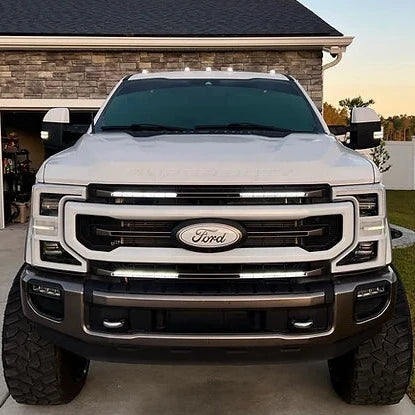

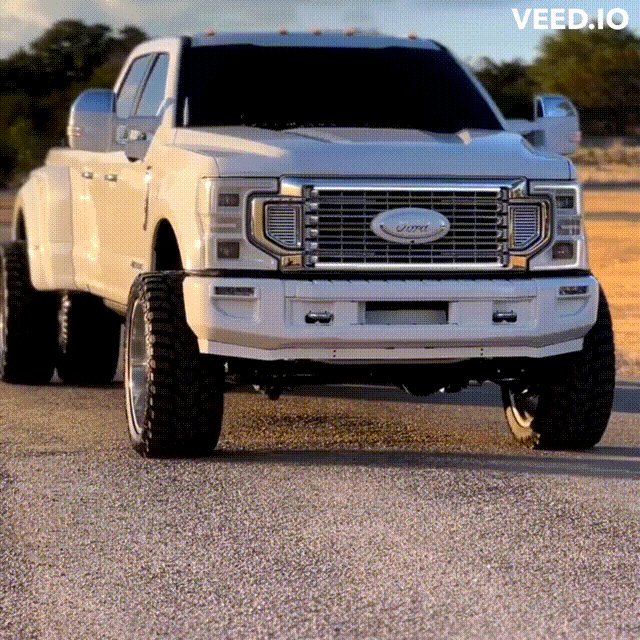

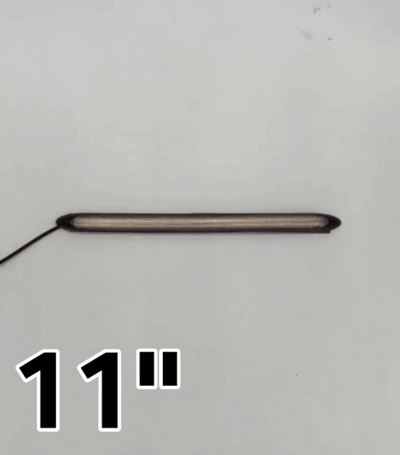

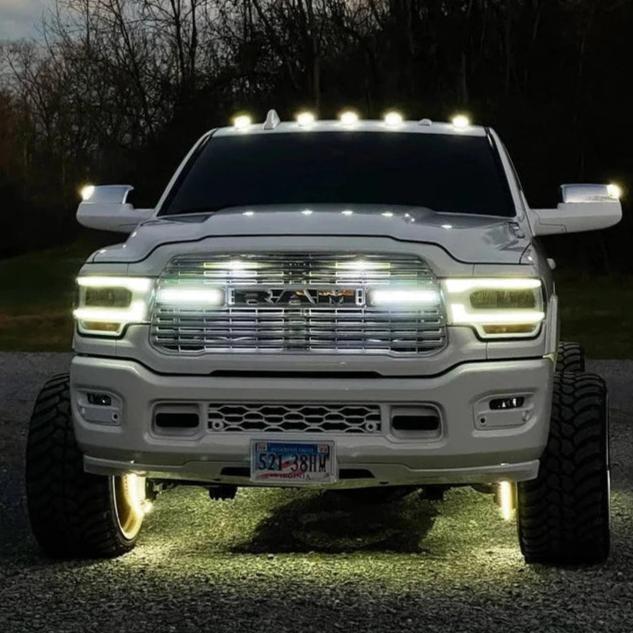

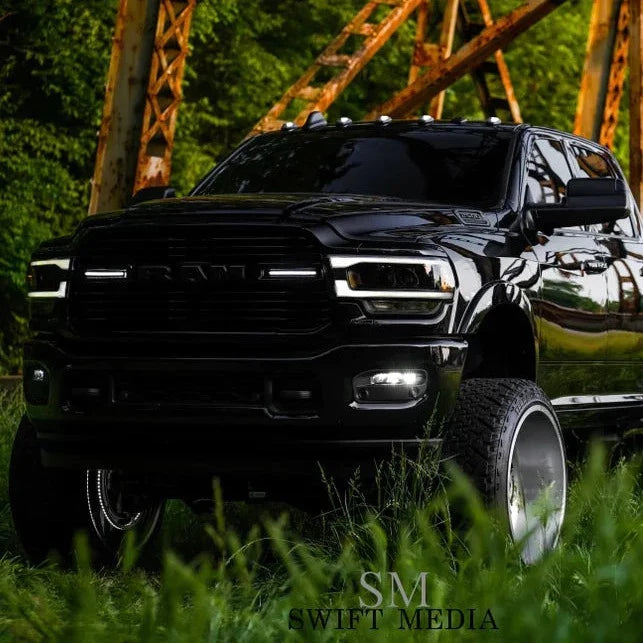

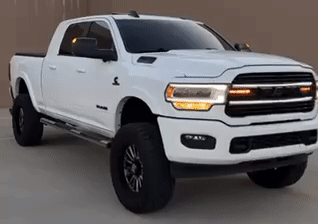

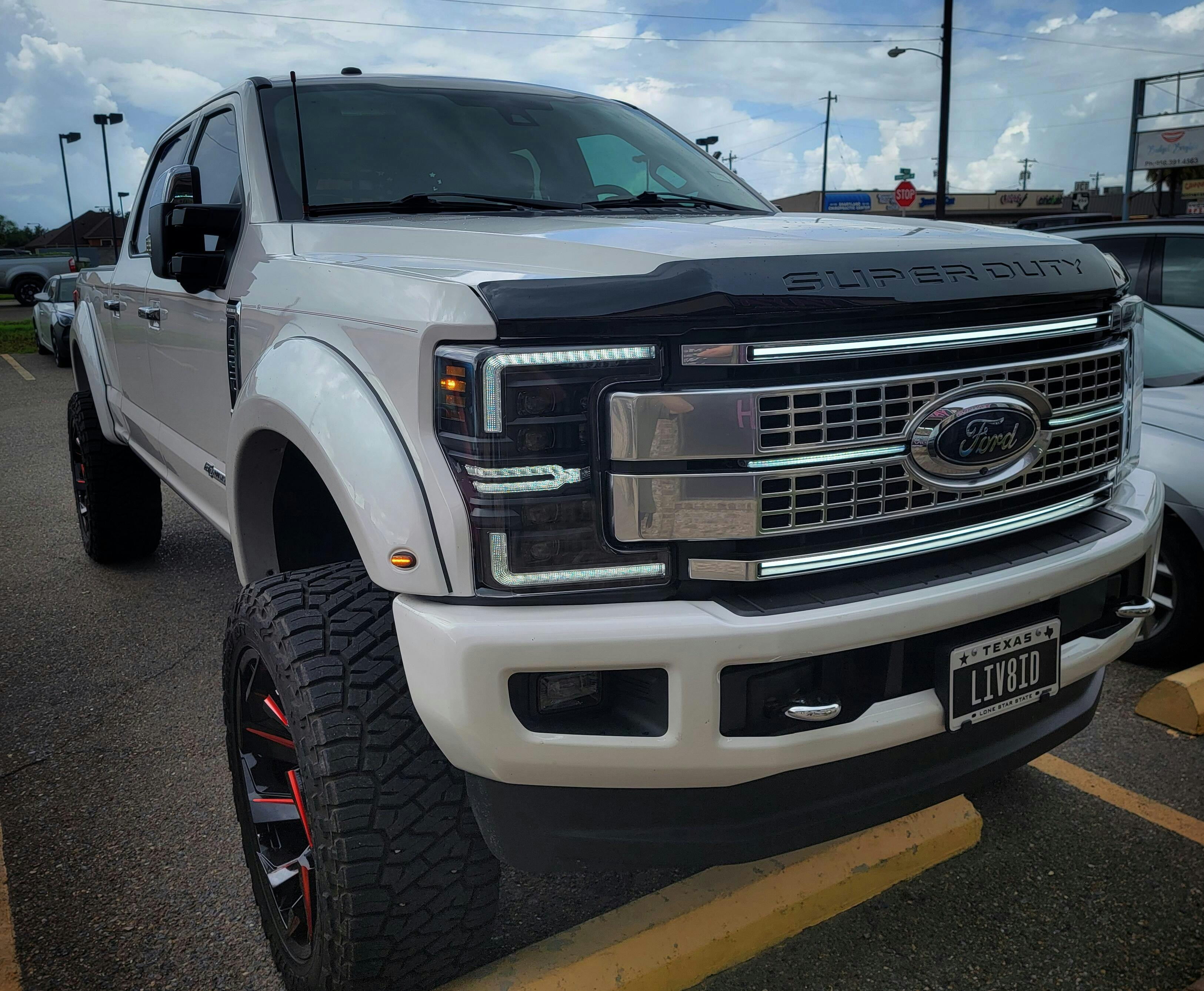

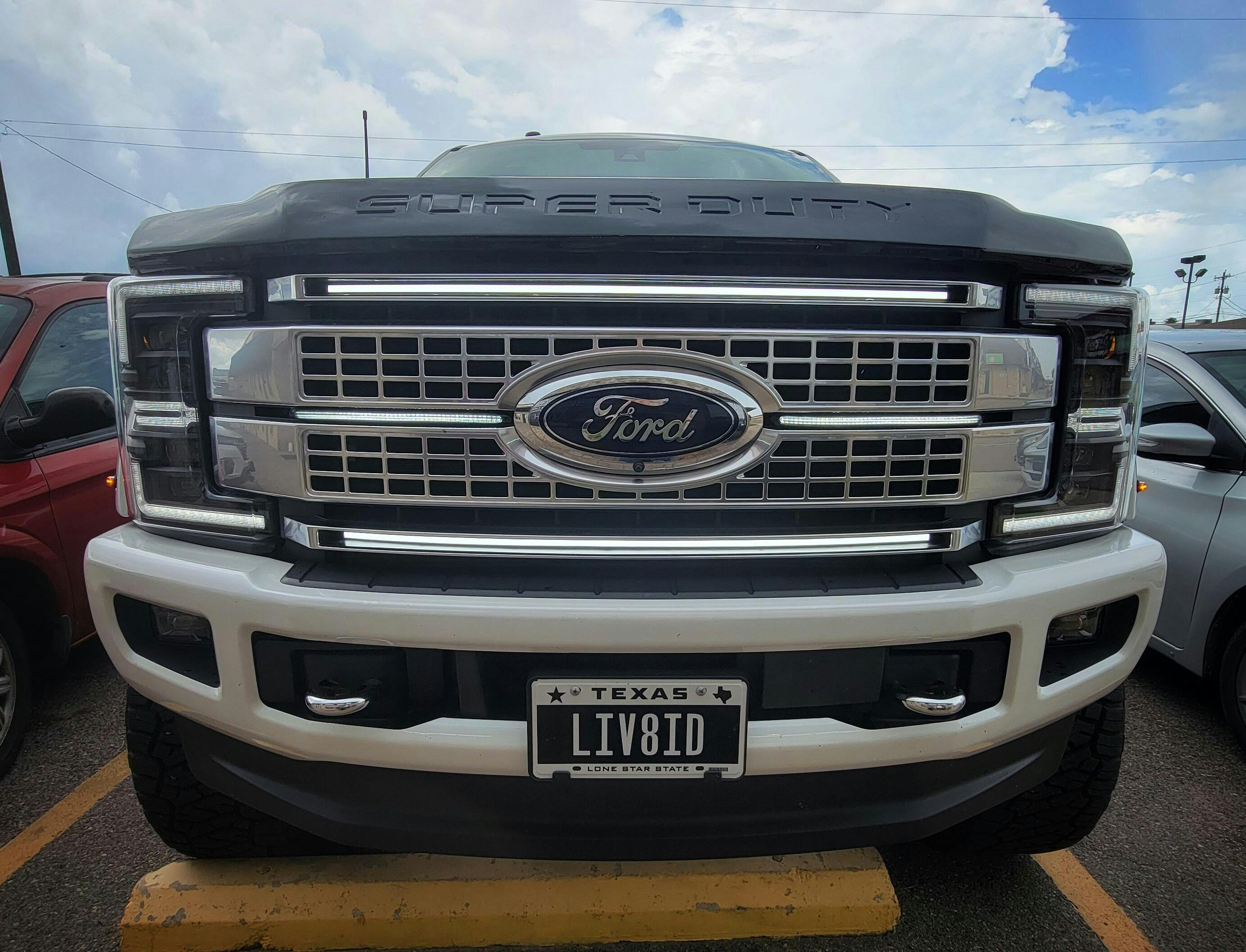

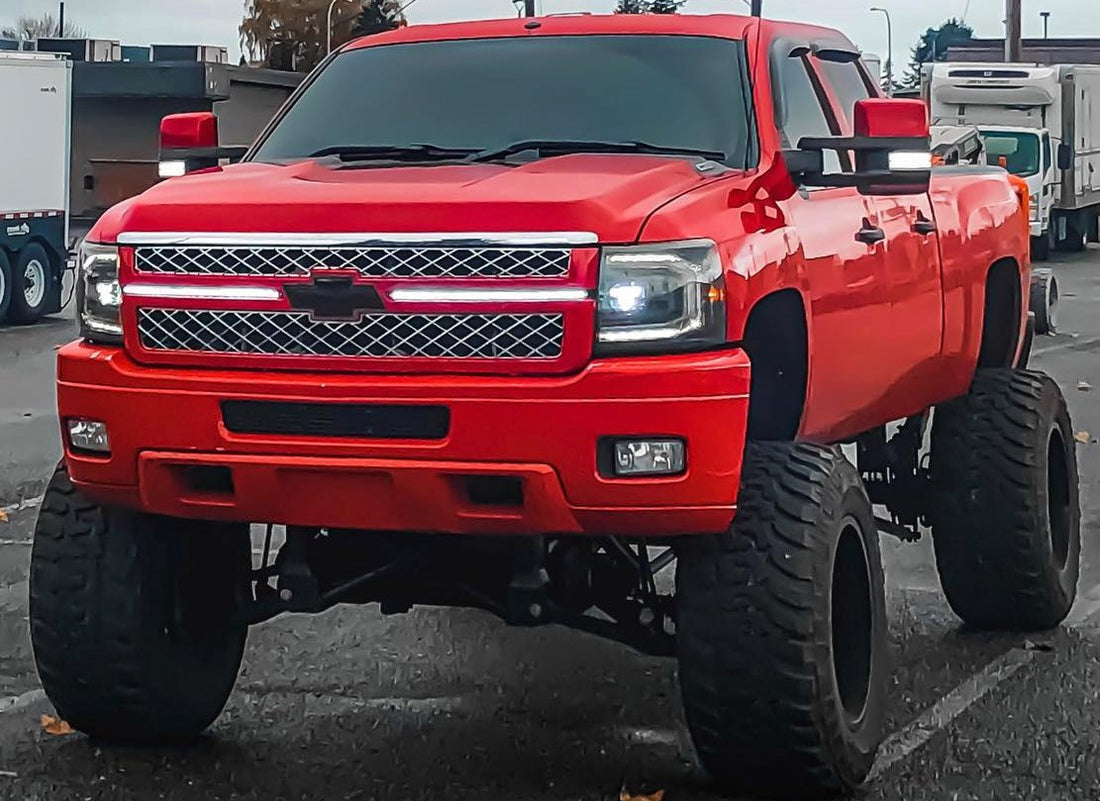

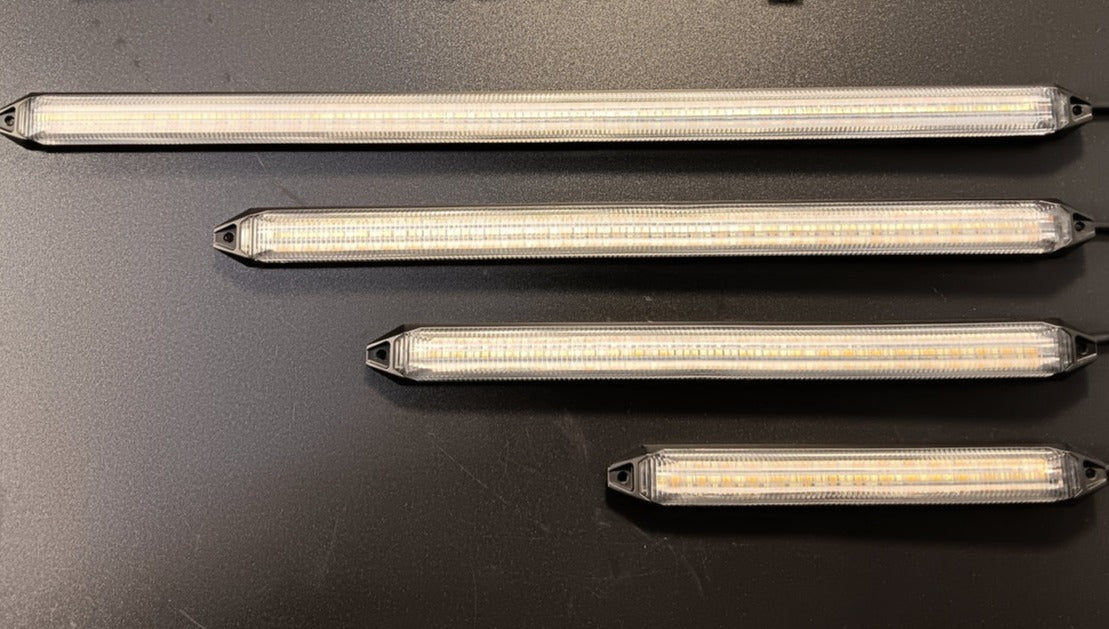

AutoLEDTech's universal ANIMATED SCANNING SEQUENTIAL SWITCHBACK LED DRL grill accent light bar strips are available in 6", 9", 11", 14", and 22" lengths with either clear or smoked lenses. These universal grill accent light bars will work for a wide variety of applications and vehicles (Ford, Ram, Dodge, Chevrolet, GMC, Toyota, plus more!), just be sure to measure so you select the correct length! The LED light bars feature an animated, scanning, moving startup sequence for the white DRL LEDs and also feature a sequential, moving switchback turn signal (white DRL switches to moving sequential amber/orange turn signal, then switches back to solid white). We include all the parts you will need to ensure this is a quick, easy to install, and durable upgrade for your car or truck that is sure to set it apart from other vehicle on the road. Our strips are available in 2 finishes, clear or smoked. The smoked lenses do effect the brightness and give off a slight blue-ish hue when compared to the clear, so keep that in mind! See the videos in photos section to compare the differences. The grill strips also have a 1 YEAR WARRANTY! Get these powerful accent-running LED grill lights for your truck to immediately stand out from the crowd. Give your vehicle an instant upgrade while also improving your visibility on the road. These grill lights are the perfect choice if you want to add glow to your truck while keeping your OEM grill and enhancing the appearance. When the lights are turned off, you'll hardly notice them!
>>CLICK HERE TO SEE A DEMO VIDEO<<
The kit comes with universal mounting brackets/hardware, extra color-coded wiring, heat-shrink waterproof connectors, plus a fuse tap to make install simple. Just cut the wiring to length, use the included connectors to join the wiring to the strip wires, connect wires to preferred 12v+ source, ground (can use frame) and turn signal +, mount your strips with the included hardware and brackets, then hit the streets!
The 100% waterproof design of the LEDs allows for driving in any weather condition. With an IP67 rating, we guarantee full protection from moisture, dust, and airborne particles. The grill lights also come with a 1 YEAR warranty coverage so you can focus on the road and leave the rest to us.
These lights are ready to install right out of the box with the installation kit included, just use the included wiring and connectors.

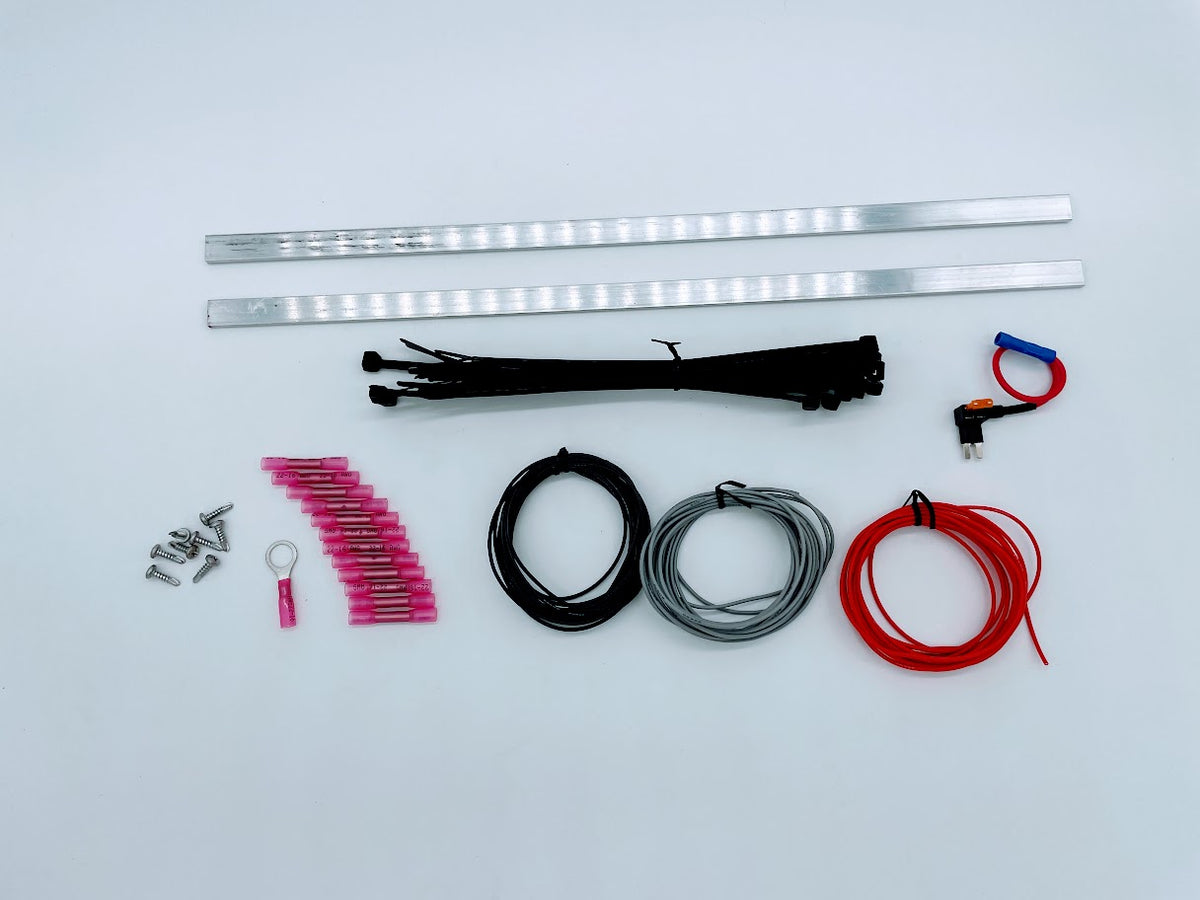

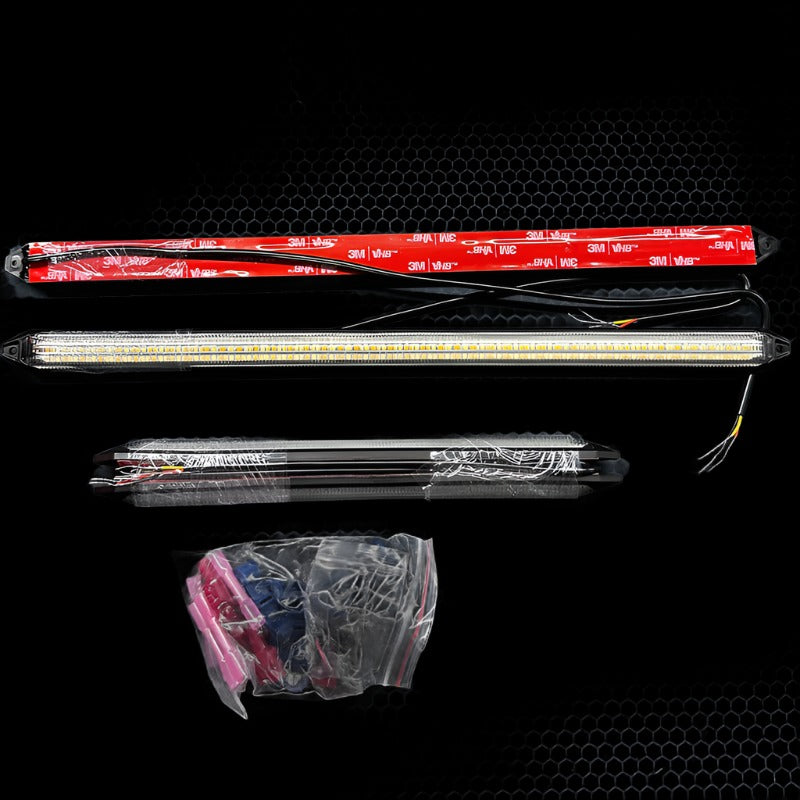

What’s in the Package:
- STRIPS: 2 Animated switchback white/amber LED Center Grill Light bars
- WIRE: 10 feet each of red, black, and grey 22 gauge hookup wire
- FUSE TAP: 1x fuse tap (Micro2)
- CONNECTORS: Assortment of weatherproof butt connectors and ring terminal for ground (apply heat to activate the adhesive lining)
- HARDWARE: Sheet metal screws, Self drilling, Phillips pan head, Stainless steel 410
- MOUNTS: 2x 16" long flat aluminum bar stock for easy mounting
- TAPE: Cloth tape roll to clean up wiring (Optional)
- ZIPTIES: Used to clean up wiring or secure strip to mounting bracket
Vehicle compatibility:
- Universal fitment - fits nearly any car or truck as long as you select the proper length! (Ford, Ram, Dodge, Chevrolet, GMC, Toyota, etc)
TECH SPECS:
PRIMARY FUNCTION: White with animated, scanning startup sequence
SECONDARY: Amber/Orange sequential switchback turn signal
LIGHT SOURCE: Proprietary 2835 SMD LED
LUMEN RATING: 2400 Lumens per strip (14", changes for difference lengths)
POWER: 10W per strip (14")
EXPECTED LIFESPAN: 50,000 hours
PCB WIDTH: 17mm
PCB THICKNESS: 16mm
DRIVER HOUSING: Cast Silicone & ABS
DRIVER PROTECTION: Full internal Potting
COLOR WHEN OFF: Neutral White

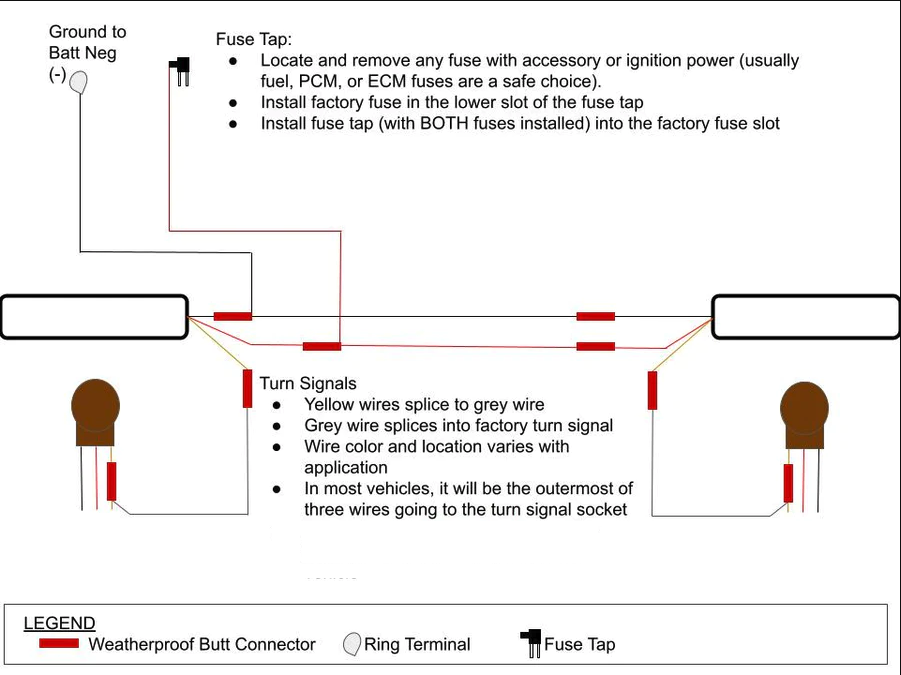

WIRING:
WIRING: RESEARCH YOUR VEHICLE TO FIGURE OUT WERE YOUR TURN SIGNAL WIRES ARE LOCATED.
1) Black wires = Ground/-
2) Red wires = Positive +, can connect to the fuse tap which gets power from a switched 12V fuse under the hood (typically an ECM, PCM, or fuel pump fuse).
3) Yellow wires = Turn Signals, T-Tap or splice to your left and right turn signal + wires
The ground wires can be grounded to any bare metal frame bolt or ground location. This could be the hood latch bolt, one of the frame grounds, any bolt that is on bare metal (sand paint away), or directly to the negative terminal of the battery)
The positive wires can be connected to one of the up-fitter switches (google your year and model to see how to do this), tapped into a fuse of your choice utilizing the fuse tap (preferably a fuse/power source that is powered when the truck turns on), tapped into the headlight DRL wire to turn on/off with the DRLs, connected to a switch or relay, etc.
Turn signal wires for animated grill light bars should be connected to the factory left and right turn signal + wires. If you have 4 bars, connect the left side bars turn signal wires together then add a 3-6 foot wire lead so you can t-tap or splice the left side turn signal wires from the LED bars to the left headlight or side marker turn signal + wire. Repeat for the right side bars on the right headlight.
