Universal Surface Mount 4Banger LED Light Pods
Description
Description
AutoLEDTech.com's universal Morimoto 4Banger LED light pods can be used for a wide variety of off-road applications as well as fog lights and are designed for easy bolt-on, plug & play installation on your vehicle. The ultra bright and rugged Morimoto 4Banger pods have a variety of beam patterns (Spot, Wide, Combo), colors (White, Yellow), and intensities (NCS, HXB) to choose from. The brackets are designed to be a simple, easy bolt on installation for surface areas and locations on front or rear bumpers, roof racks, hoods, A-pillars, sides, fog lights, and other surfaces. We are so confident in this system, that it is backed by a limited lifetime warranty!

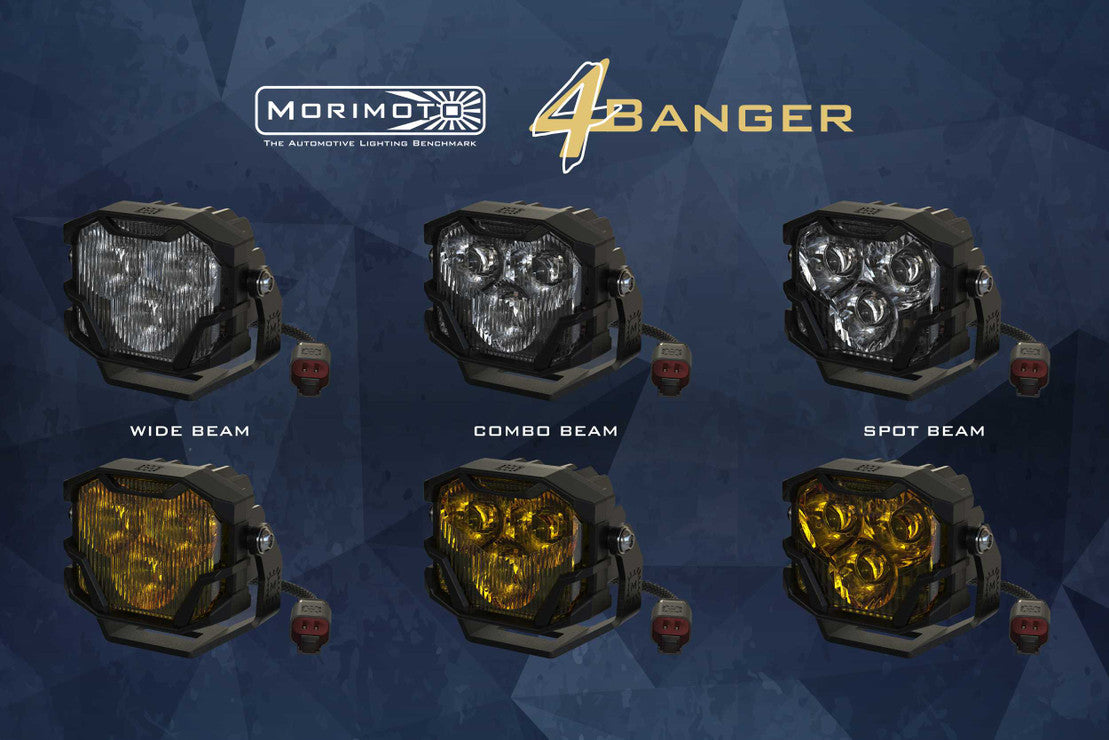

Spot Beam: Maximum distance
Wide Beam: Maximum width
Combo Beam: Maximum distance & width
See video or photos for info on beam patterns
Click here for the Universal mount 4banger LED pods installation guide
Vehicle Compatibility:
- Universal - fits any vehicle with a location to mount
Morimoto 4Banger LED Light Pods Demo Video:
The brand new, patent-pending line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.
Kit Includes:
-

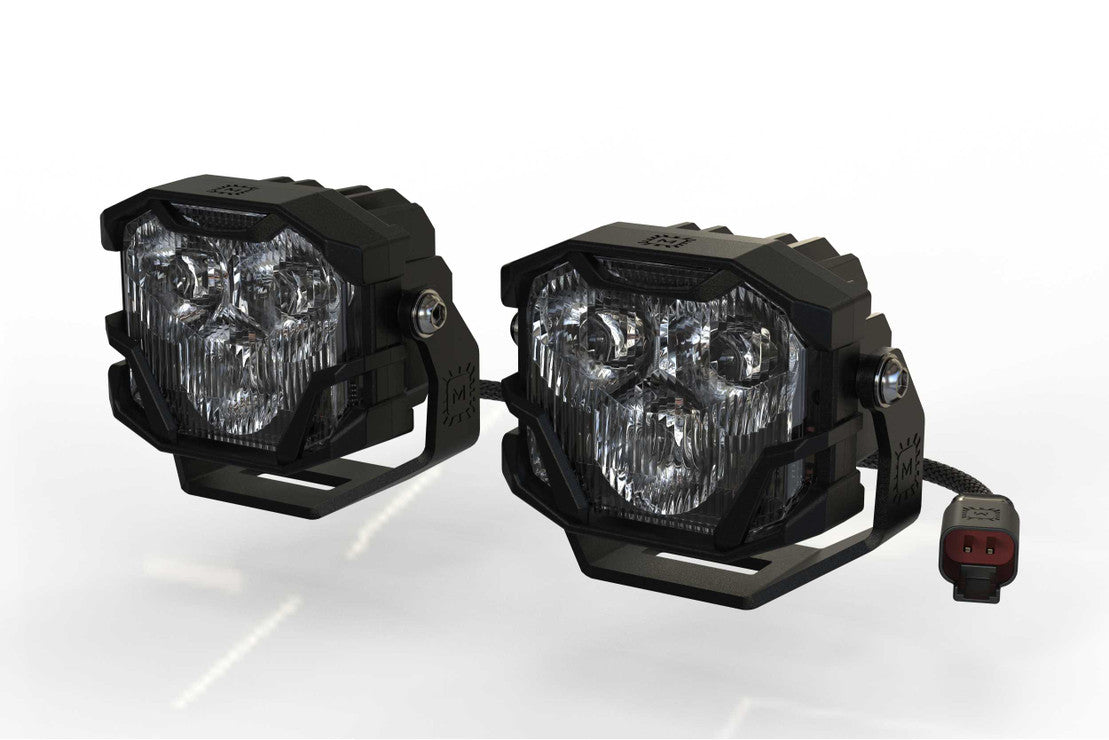

LED PODS: 2x (One Pair) Morimoto 4Banger
-
FLUSH MOUNT HARDWARE: 2x (One Pair) w/ Template
-
HARDWARE: Complete pack (stainless steel)
-

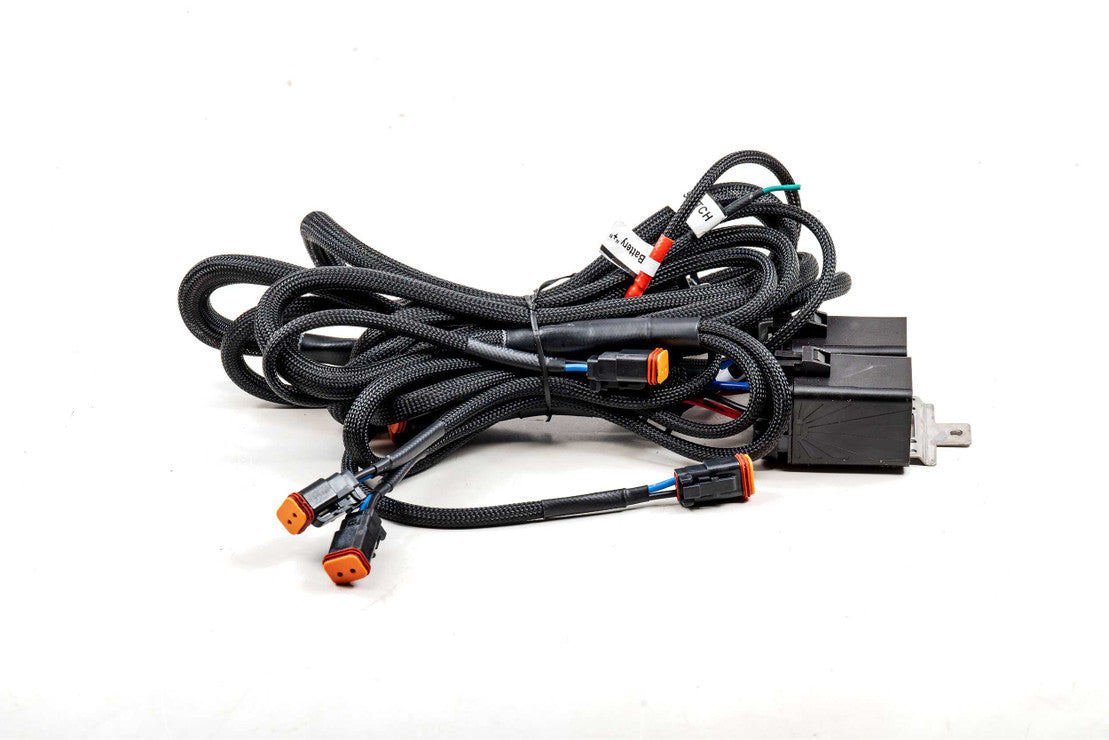

OPTIONAL WIRING: 2-Pod Light Harness or DT Connectors
- WARRANTY: Lifetime warranty

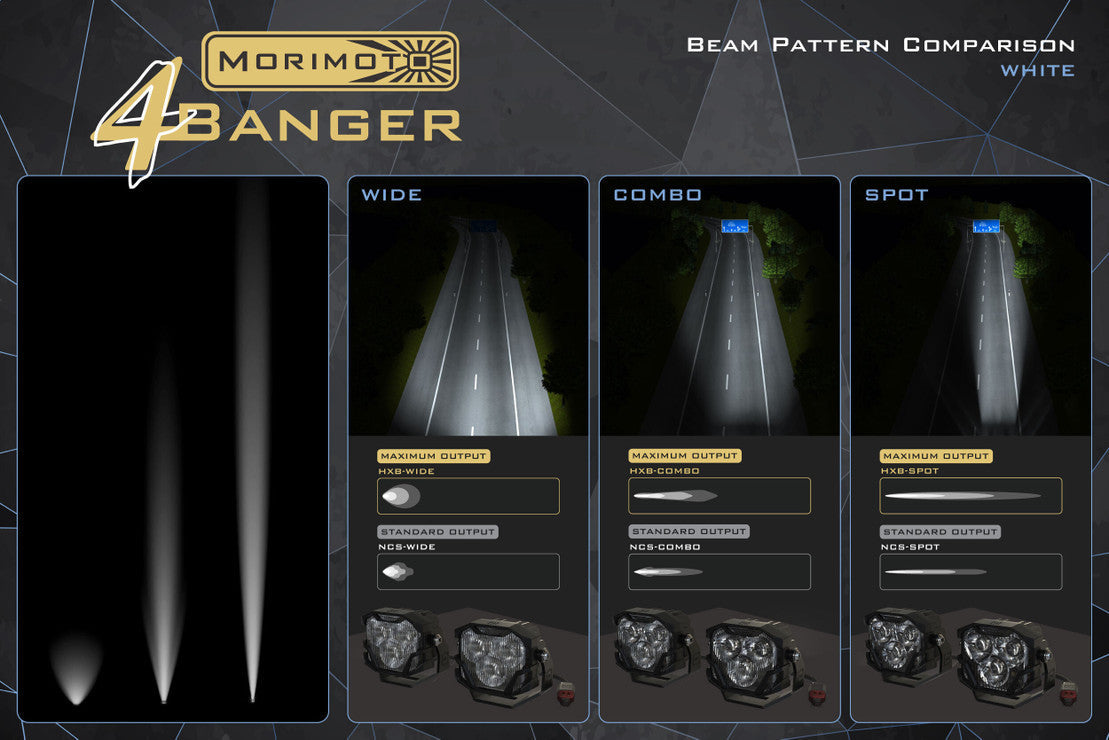

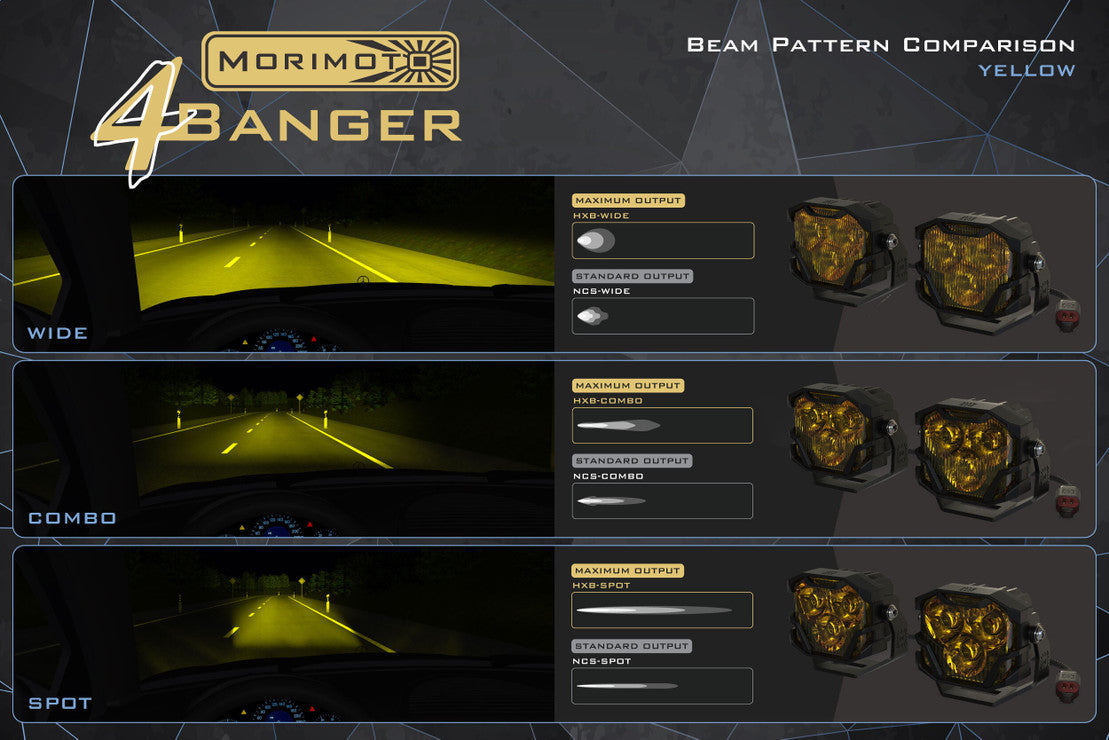

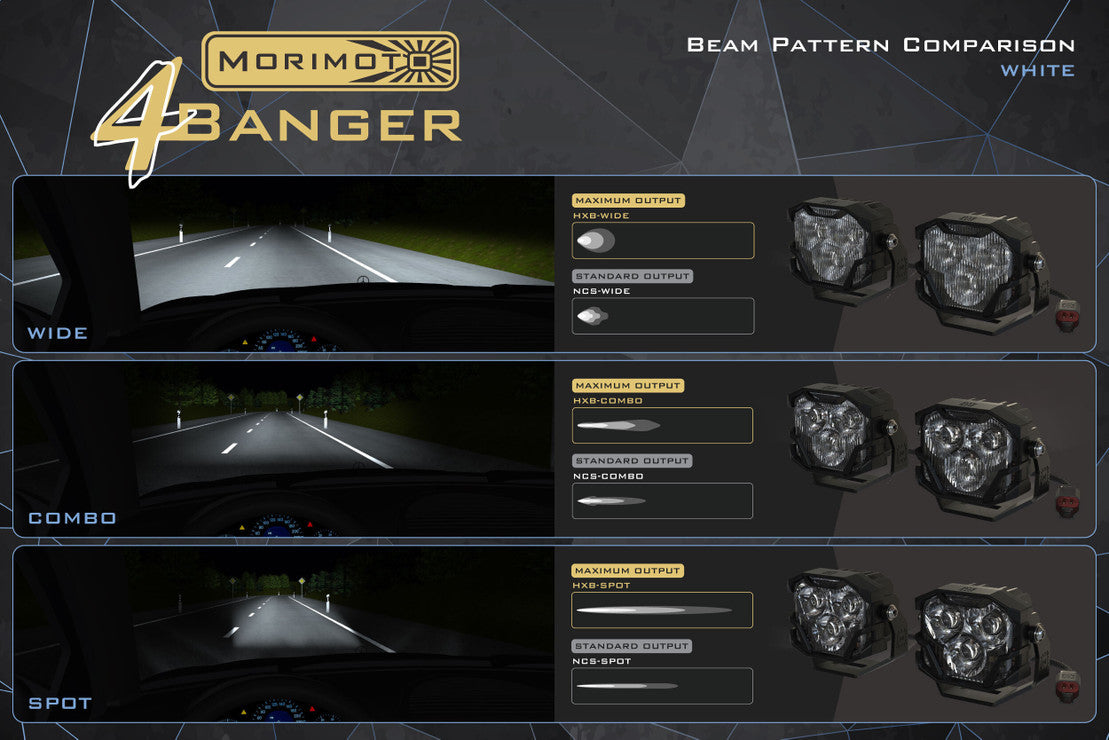

Beam Information:
HXB COMBO BEAM: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger HXB Combo is an excellent aid to any set of high-performance headlights. HXB COMBO YELLOW: 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)HXB COMBO WHITE: 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB SPOT BEAM: Illuminates far into the distance unlike anything else on the market. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with the HXB LED optics produces a beam pattern capable of penetrating up to 800 meters into your future. No matter the speed, you'll never outrun your ability to see with the 4Banger HXB Spots. HXB SPOT YELLOW: 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m) HXB SPOT WHITE: 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
HXB WIDE BEAM: Illuminates the ground directly in front of the vehicle. The HXB Optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient and powerful Osram HX Boost LEDs make these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control -- making it the most effective on and off-road LED fog light in the world. HXB WIDE YELLOW: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m) HXB WIDE WHITE: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
NCS COMBO BEAM: Illuminates a clear path with medium range. The NCS Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger NCS Combo is an excellent aid to any set of high-performance headlights. NCS COMBO YELLOW: 38,850 Cd (Post Warm-Up) (384lux @ 10m)
NCS COMBO WHITE: 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS SPOT BEAM: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance. NCS SPOT YELLOW: 73,500 Cd (Post Warm-Up) (735lux @ 10m) NCS SPOT WHITE: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
NCS WIDE BEAM: Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W) and has also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light. NCS WIDE YELLOW: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m) NCS WIDE WHITE: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
Tech Specs:
- INPUT VOLTAGE: 9-18V DC
- POWER: 20w (NCS) 42w (HXB)
- CURRENT: 1.5A (NCS) or 3.2A (HXB)
- DIMENSIONS: 82mm W, 67mm H, 60mm D
- LIGHT SOURCE: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
- INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
- MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
- IP RATING: IP68K (Dust / High Pressure Water Resistant)
More Information:
FORM MEETS FUNCTION: The overall footprint of the 4Banger is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper.

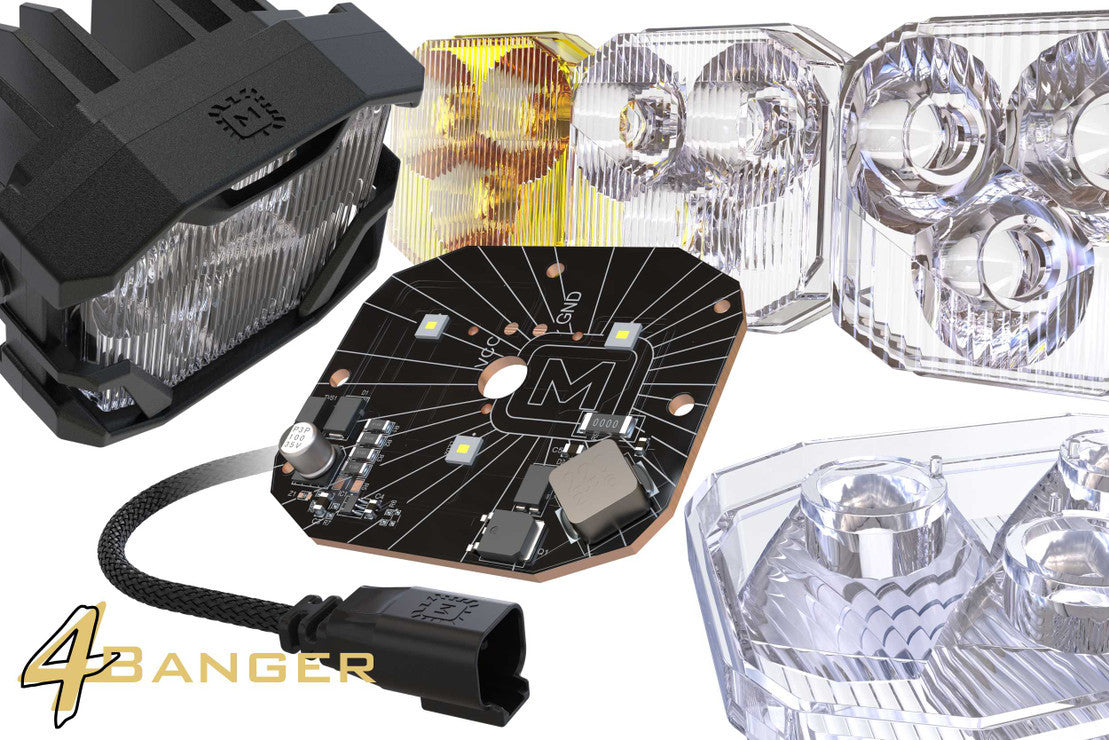

PERFORMANCE: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design.
ALL WEATHER: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

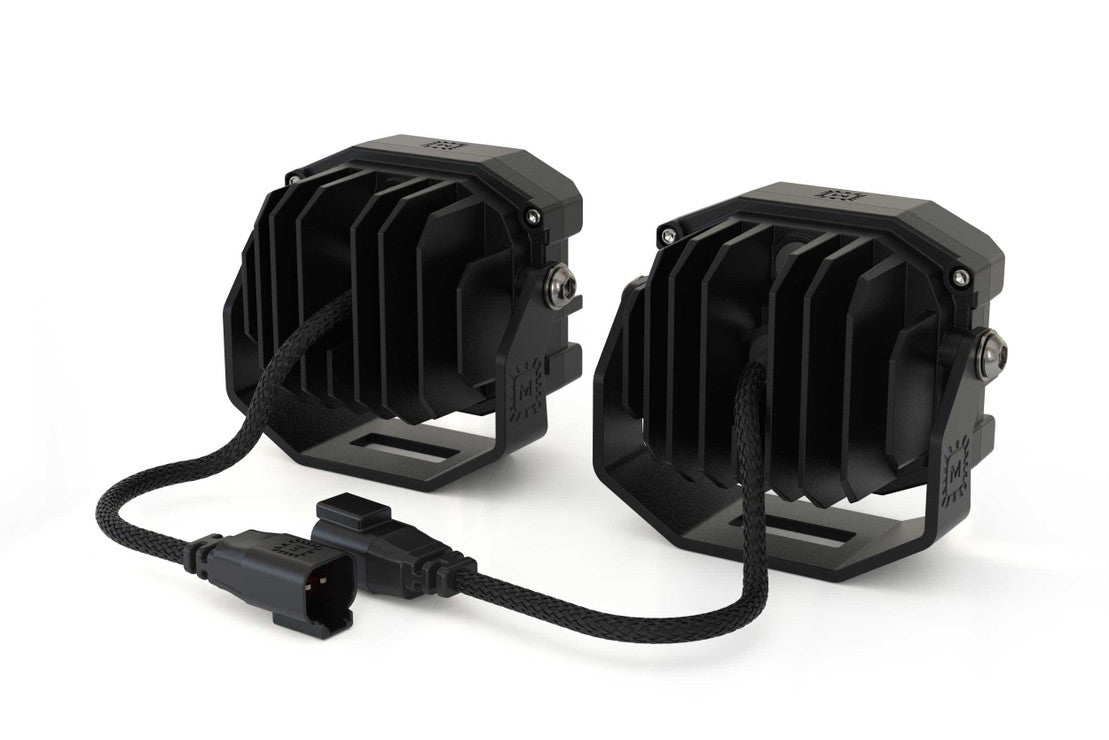

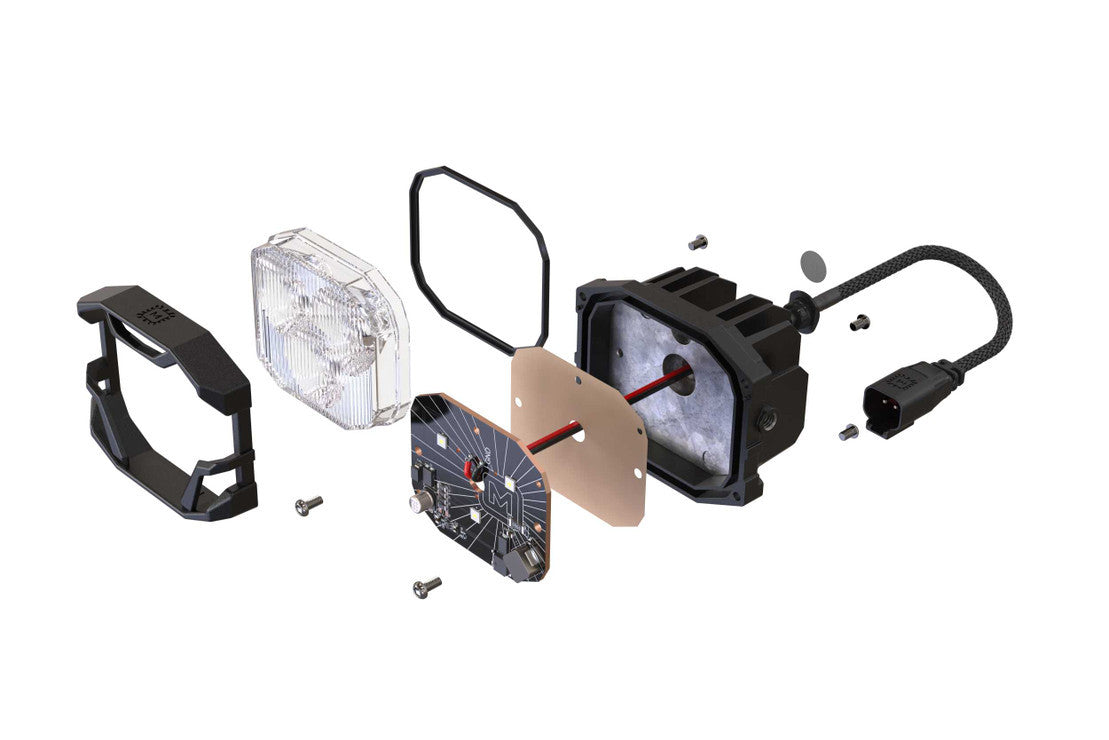

RELIABILITY: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.
STREET LEGALITY: With a standard -4 degree aimthe beam pattern produced by both the NCS and HXB Wide Beam models has been verified compliant with the latest SAE F regulation for use as a street-legal fog light. You can see the test data in the "Compatibility" section below.

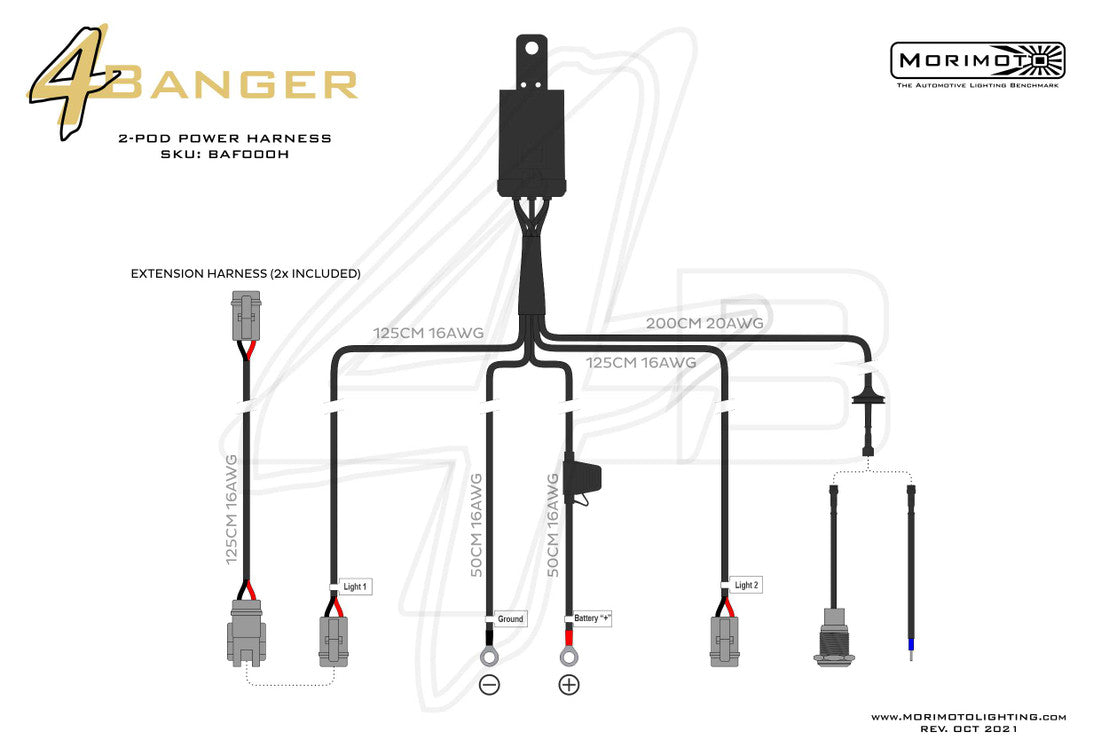

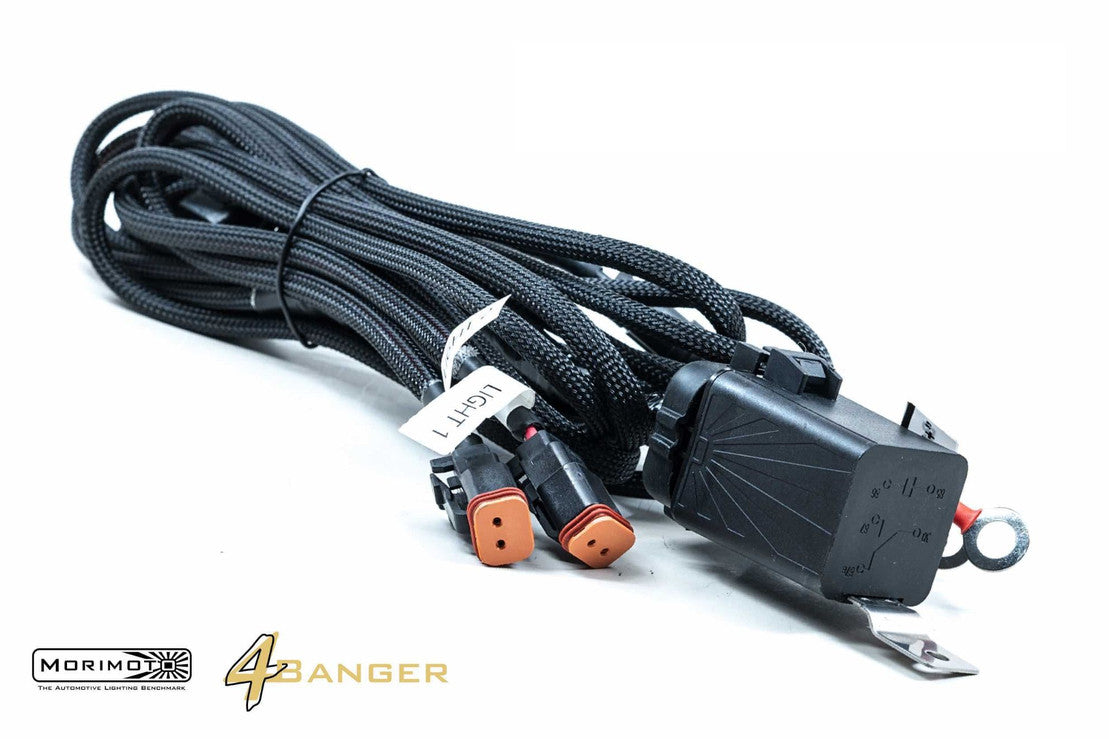

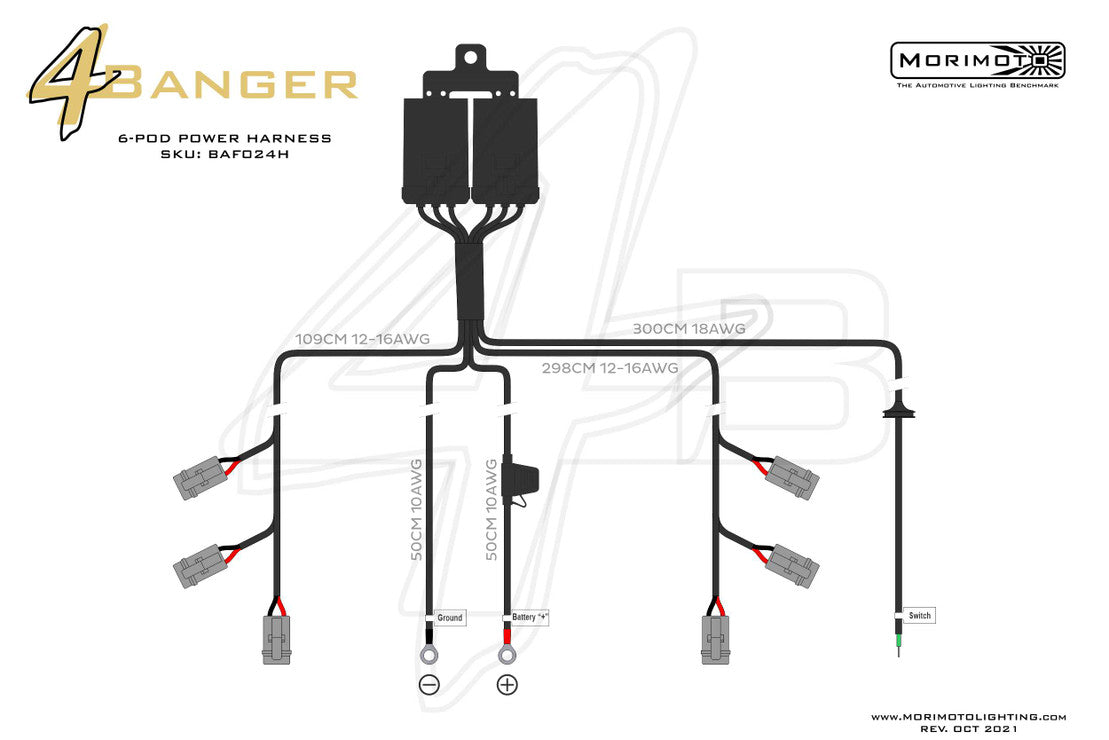

POWER UP: The Morimoto 4Banger LED Pod system for the Raptor was developed from the ground up to set a new standard in their segment, and the same goes for the wiring. Not one component on the harness in this kit was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relays with hanger. Proprietary over-molded inline fuse holder with 40A ATO fuse. Six DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Beefy 10 AWG Wiring. If you want the best, Bingo.
Vehicle Compatibility:
UNIVERSAL: With Included U Brackets
FORD BRONCO: 21+ with BAF070
FORD F150: 21+ with BAF067
FORD F150: 15-20 with BAF013 and BAF038
FORD F150: 07-14 with BAF020 and BAF037
FORD RAPTOR: 16-21 with BAF024 and BAF038
FORD SUPER DUTY: 17-21 with BAF013 and BAF039
FORD SUPER DUTY: 99-16 with BAF021 and BAF040
LEXUS GX470: 03-09 with BAF042
4RUNNER: 2010+ With BAF014 and BAF027
TACOMA: 05-13 with BAF019 and BAF029
TACOMA: 14-21 with BAF014 and BAF028
TUNDRA: 07-13 with BAF019 and BAF030
TUNDRA: 14-21 with BAF014 and BAF026
SILVERADO/SIERRA: 14-19 with BAF015 and BAF031
SILVERADO/SIERRA: 07-13 with BAF032
COLORADO/CANYON: 15-21 with BAF015
RAM 1500: 2019+ with BAF016
RAM 1500: 09-18 with BAF018 and BAF033
RAM HD: 09-18 with BAF017
RAM HD: 2019+ with BAF034
NISSAN TRUCKS: 05-20 with BAF016
SUBARUS (MOST): 10-18 with BAF016
WRANGLER JK: 07-17 with BAF023 and BAF035
WRANGLER JL: 18-21 with BAF036
CHEROKEE: 11-17 with BAF023
