AutoLEDTech.com's universal Morimoto 2Banger LED light pods can be used for a wide variety of off-road applications as well as fog lights and are designed for easy bolt-on, plug & play installation on your vehicle. The ultra bright and rugged Morimoto 2Banger pods have a variety of beam patterns (Spot, Flood, Combo), colors (White, Yellow), and intensities (NCS, HXB) to choose from. The brackets are designed to be a simple, easy bolt-on installation for surface areas and locations on front or rear bumpers, roof racks, hoods, A-pillars, sides, fog lights, and other surfaces. We are so confident in this system, that it is backed by a limited lifetime warranty!

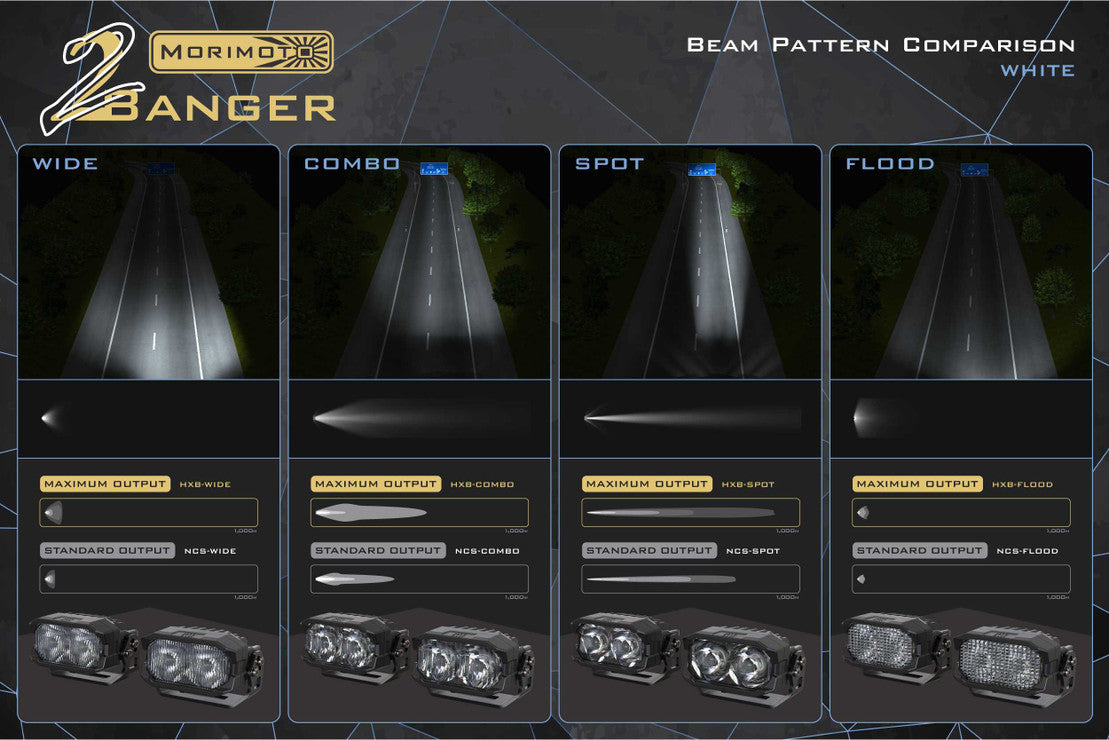

Spot Beam: Maximum distance
Flood Beam: Maximum coverage, DOT compliant for the road
Combo Beam: Maximum distance & width
Wide Beam: Maximum width

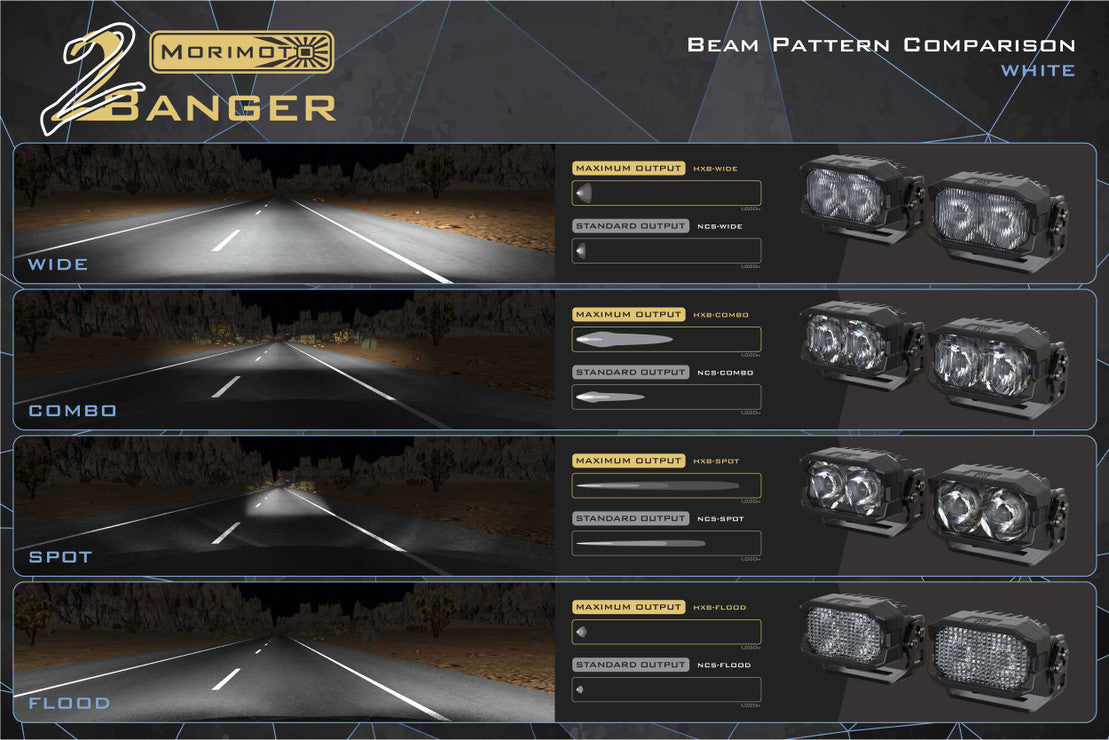

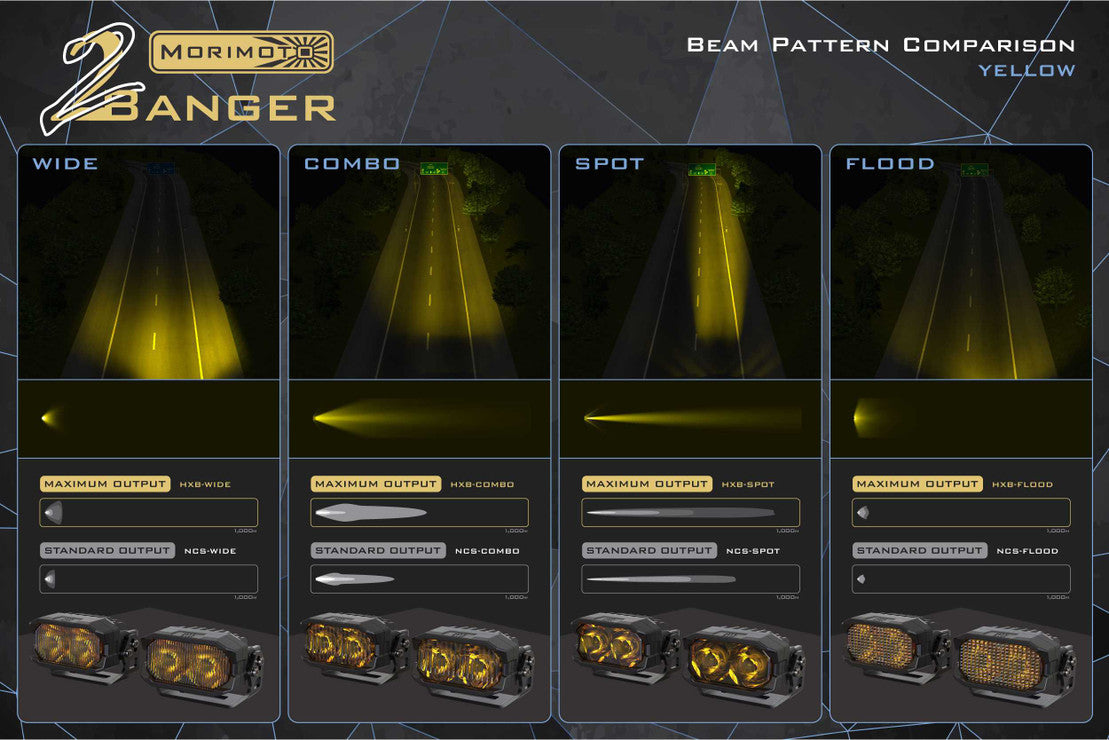

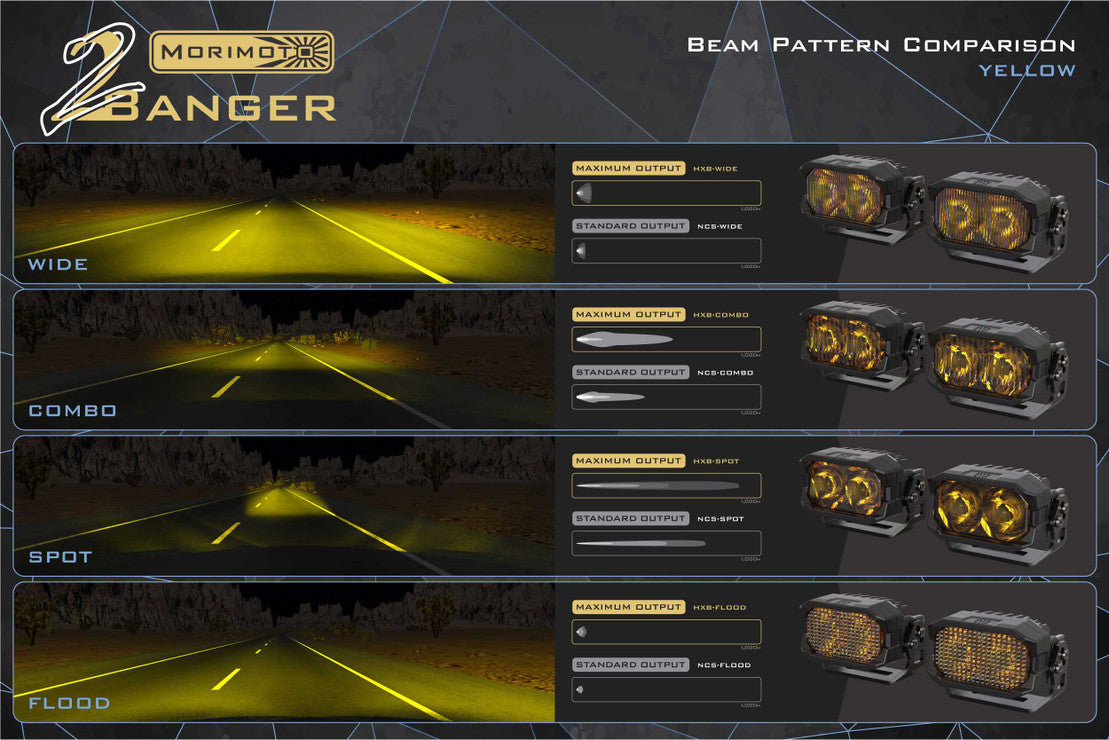

See video or photos for info on beam patterns
Click here for the 2banger LED pods installation guide
- Universal - fits any vehicle with a location to mount
Morimoto 2Banger LED Light Pods Demo Video:
The brand new, patent-pending line of 2Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

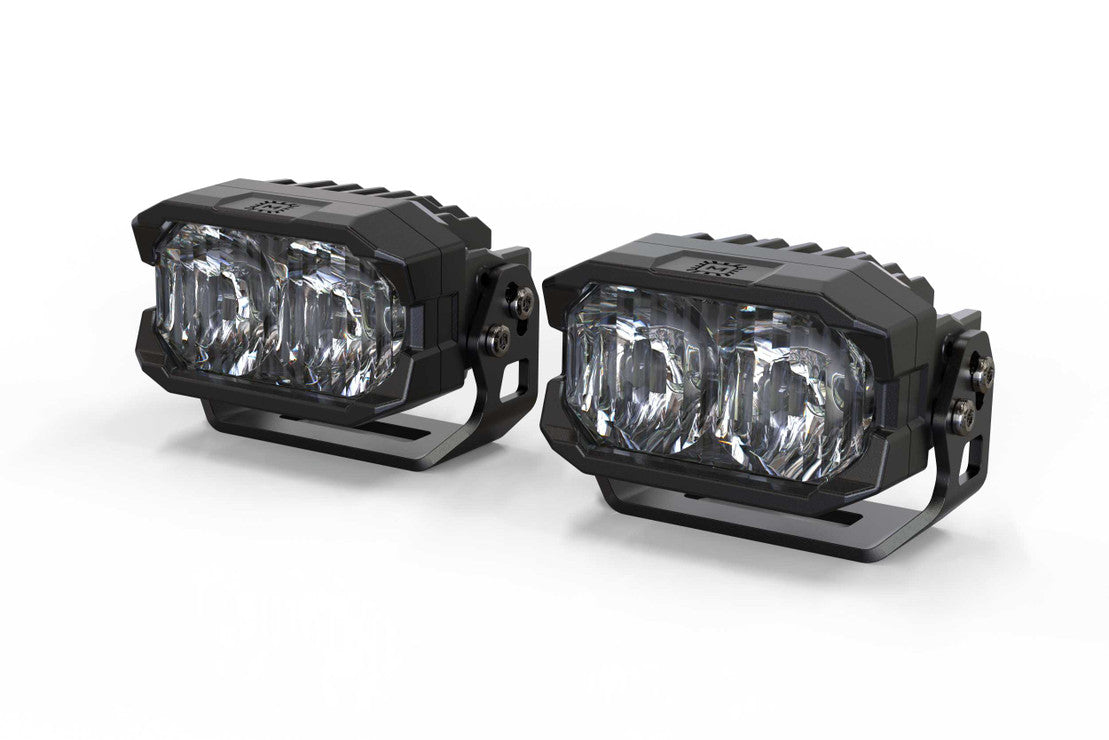

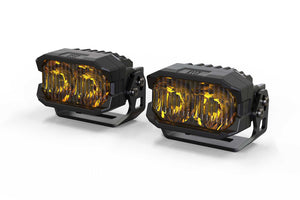

LED PODS: 2x (One Pair) Morimoto 2Banger
MOUNT HARDWARE: 2x (One Pair) Universal U-Shaped Mounts
HARDWARE: Complete pack (stainless steel)
OPTIONAL WIRING: 2-Pod Light Harness or DT Connectors
HXB COMBO BEAM: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The hot spot and spread has been perfectly tuned to produce an ideal combo beam. The 2Banger HXB Combo is an excellent aid to any set of high-performance headlights. INTENSITY (WHITE): 65,000 Cd (650 lux @ 10m) INTENSITY (YELLOW): 42,500 Cd (425 lux @ 10m) PEAK LUMENOSITY (LM)(RAW): 2,000 lm
HXB FLOOD BEAM: Provides plenty of ambient light with coverage in every direction, making them the perfect solution for low-speed driving, rock crawling, back-up lights, or even illuminating your campgrounds. Flood optics do not project far into the distance, but are the undoubtedly the weapon of choice for comfortably illuminating everything in your local space. INTENSITY (WHITE): 900 Cd (9 lux @ 10m) INTENSITY (YELLOW): 625 Cd (6.25 lux @ 10m) PEAK LUMENOSITY (LM)(RAW): 2,000 lm
HXB SPOT BEAM: Illuminates far into the distance unlike anything else in their class. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with their advanced optics produces a beam pattern capable of penetrating up to 700 meters into your future. You will have a hard time out-running your ability to see with the 2Banger HXB Spots. INTENSITY (WHITE): 147,500 Cd (1,475 lux @ 10m) INTENSITY (YELLOW): 104,200 Cd (1,042 lux @ 10m) PEAK LUMENOSITY (LM)(RAW): 2,000 lm
HXB WIDE BEAM: Illuminates the ground directly in front of the vehicle. The 2Banger Wide beam optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper cutoff line and vertical gradient easily passes the latest SAE F regulation for safe and legal use as a fog light on public roads. The 2Banger HXB Wide beam delivers best-in-class combination of width, intensity, making it the most effective off-road capable, on-road compliant Dual-LED pod light in the world. I NTENSITY (WHITE): 12,700 Cd (127 lux @ 10m) INTENSITY (YELLOW): 8,400 Cd (84 lux @ 10m) PEAK LUMENOSITY (LM)(RAW): 2,000 lm
NCS COMBO BEAM: Illuminates a clear path with medium range. The NCS Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The oval hot spot and spread at beam center has been perfectly tuned to produce an ideal flood beam. The 2Banger NCS Combo is an excellent aid to any set of high-performance headlights. INTENSITY (WHITE): 42,000 Cd (420 lux @ 10m) INTENSITY (YELLOW): 21,000 Cd (210 lux @ 10m) PEAK LUMENOSITY (LM)(RAW): 900 lm
NCS SPOT BEAM: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance. INTENSITY (WHITE): 97,500 Cd (975 lux @ 10m) INTENSITY (YELLOW): 55,000 Cd (550 lux @ 10m) PEAK LUMENOSITY (LM)(RAW): 900 lm
NCS FLOOD BEAM: Provides plenty of ambient light with coverage in every direction, making them the perfect solution for low-speed driving, rock crawling, back-up lights, or even illuminating your campgrounds. Flood optics do not project far into the distance, but are the undoubtedly the weapon of choice for comfortably illuminating everything in your local space. INTENSITY (WHITE): 475 Cd (4.75 lux @ 10m) INTENSITY (YELLOW): 230 Cd (2.3 lux @ 10m) PEAK LUMENOSITY (LM)(RAW): 900 lm
- INTENSITY (WHITE): See above specs for beam/intensity
- INTENSITY (YELLOW): See above specs for beam/intensity
- PEAK LUMENOSITY (LM)(RAW): See above specs for beam/intensity
- POWER (STABILIZED): 13.5W or 24.0W
- CURRENT: 1.0A @ 13.5V DC or 1.78A
- DIMENSIONS: 81.0mm W, 49.8mm H (63.5mm w/ Bracket), 59.2mm D
- LIGHT SOURCE: 2x Nichia NCSY131F or Nichia NCSW131F (NCS) or 2x Osram HX Boost (HXB)
- INPUT: Integrated Deutsch DT 2-Pin w/ Pigtail
- MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
- IP RATING: IP69K (Dust / High Pressure Water Resistant)
OFF-ROAD REINVENTED: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The 2Banger continues that tradition. In fact, the introduction of our entire offroad lineup has been a real wake-up-call for the old players in the category to get back on their game. The brand new, patent-pending line of 2Banger Off-Road LED Pods were completely designed, engineered, and torture tested in the USA, and everything about them is truly next level.

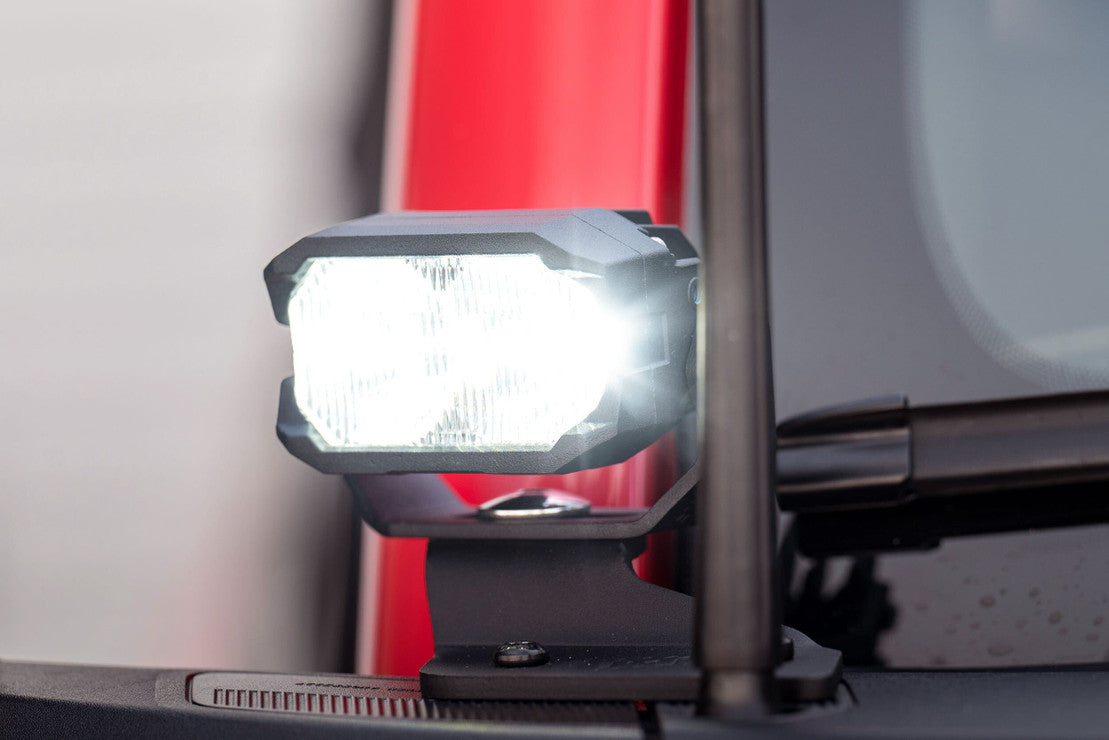

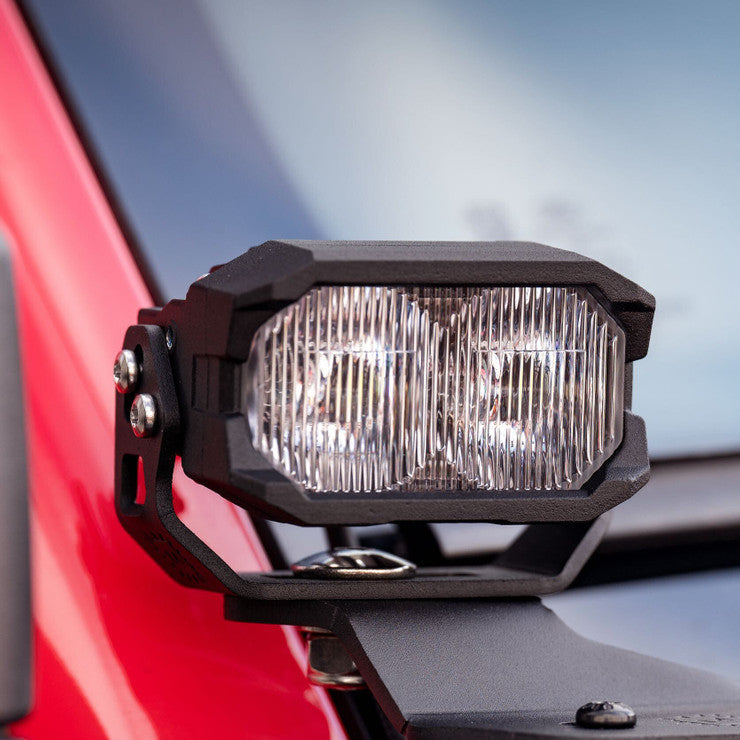

FORM MEETS FUNCTION: The overall footprint of the 2Banger is extremely compact, making them the perfect solution for adding extra light where full-size pods wont work. Each set of Morimoto 2Banger LED pods include a set of adjustable pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for Racks and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.

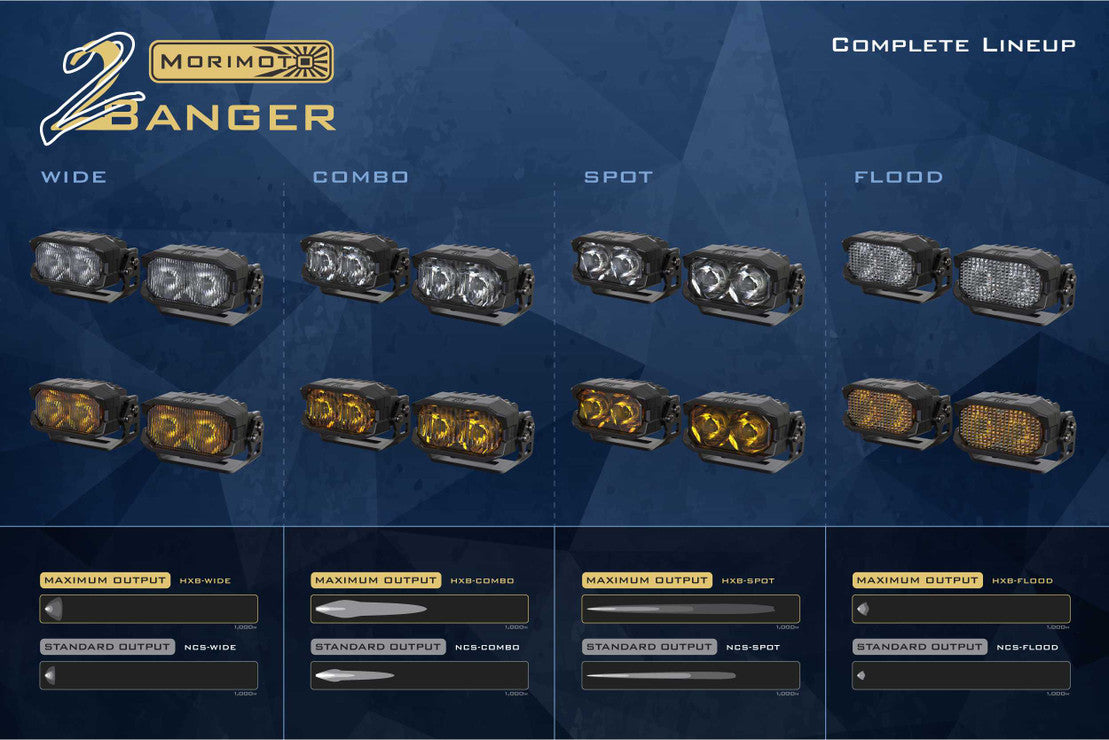

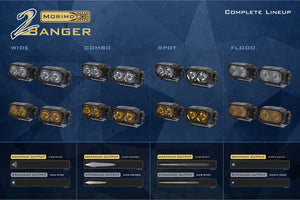

PERFORMANCE: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 2Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers, white or yellow output, and four distinct beam patterns (Wide/Fog, Spot, Combo, and Flood)--there is a 2Banger to suit every performance need and driving style.
VERSATILITY: The 2Banger can be mounted alone, or linked together into a serious light bar. Each set of pods includes universal pedestal mounts for an easy install on any flat surface, like your steel bumper or the the wide-variety of application-specific A-Pillar brackets we offer. The BangerBar links offer a turn-key way to bolt your Bangers together into a bespoke light bar, where you spec the color of the light. You spec the beam optics. You set the radius. And then you destroy the darkness. For more details, look for product listings dedicated to the BangerBars.

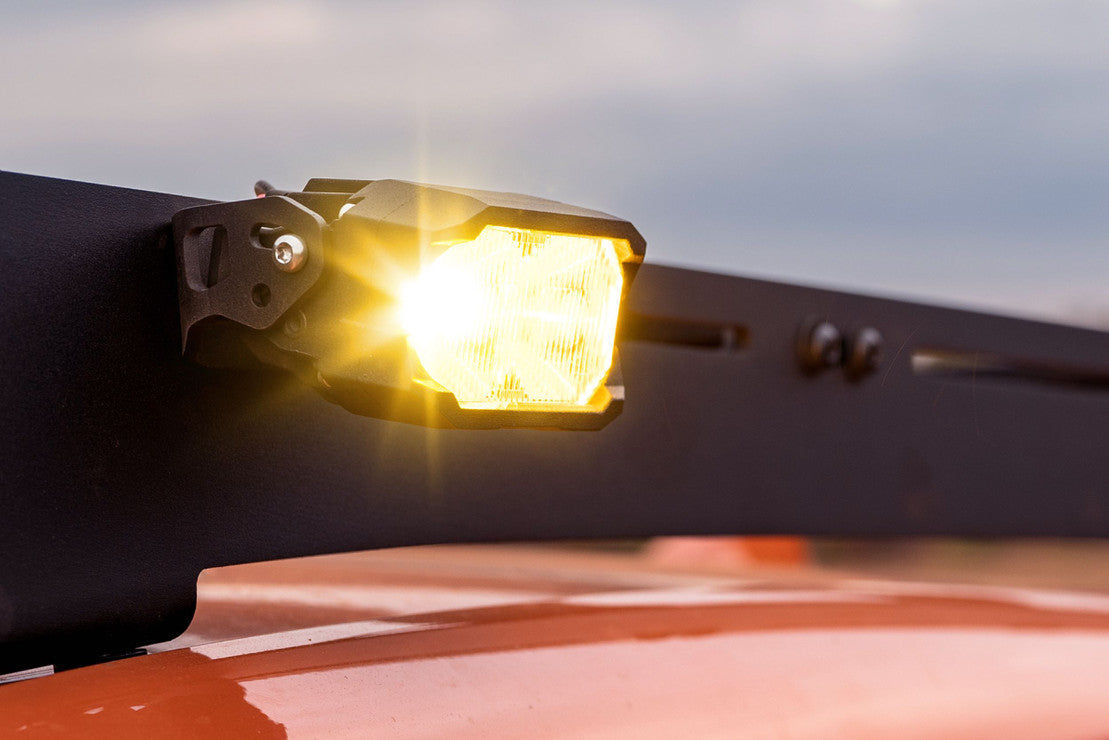

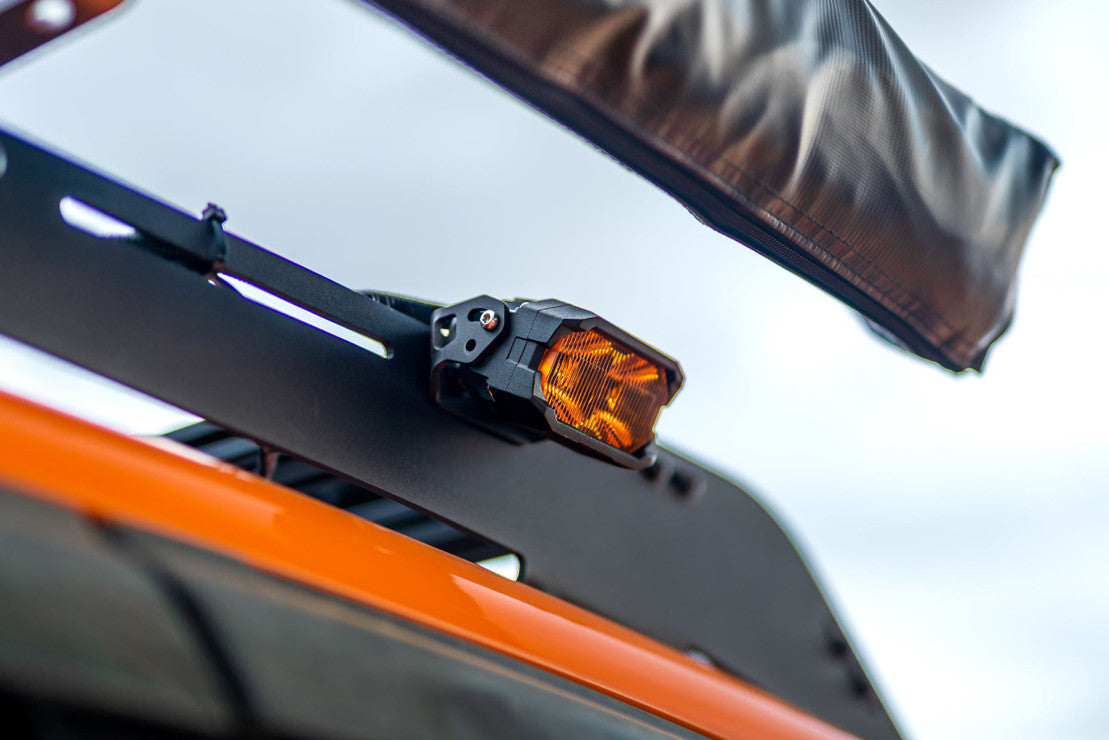

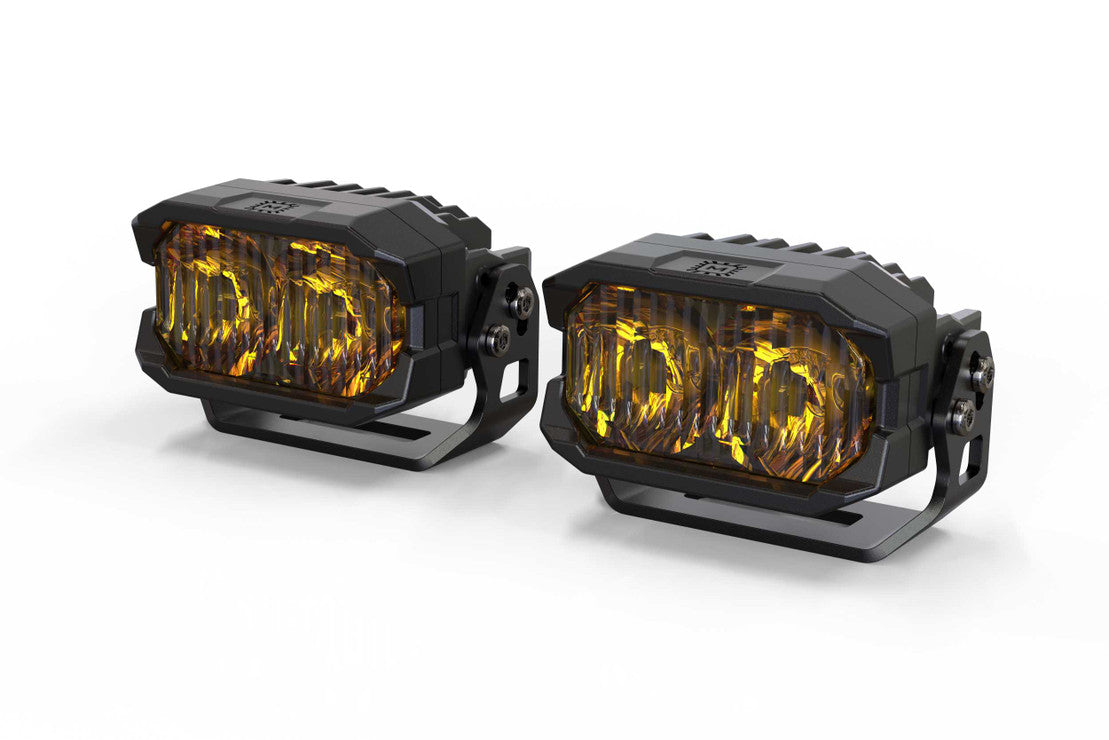

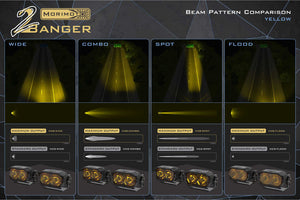

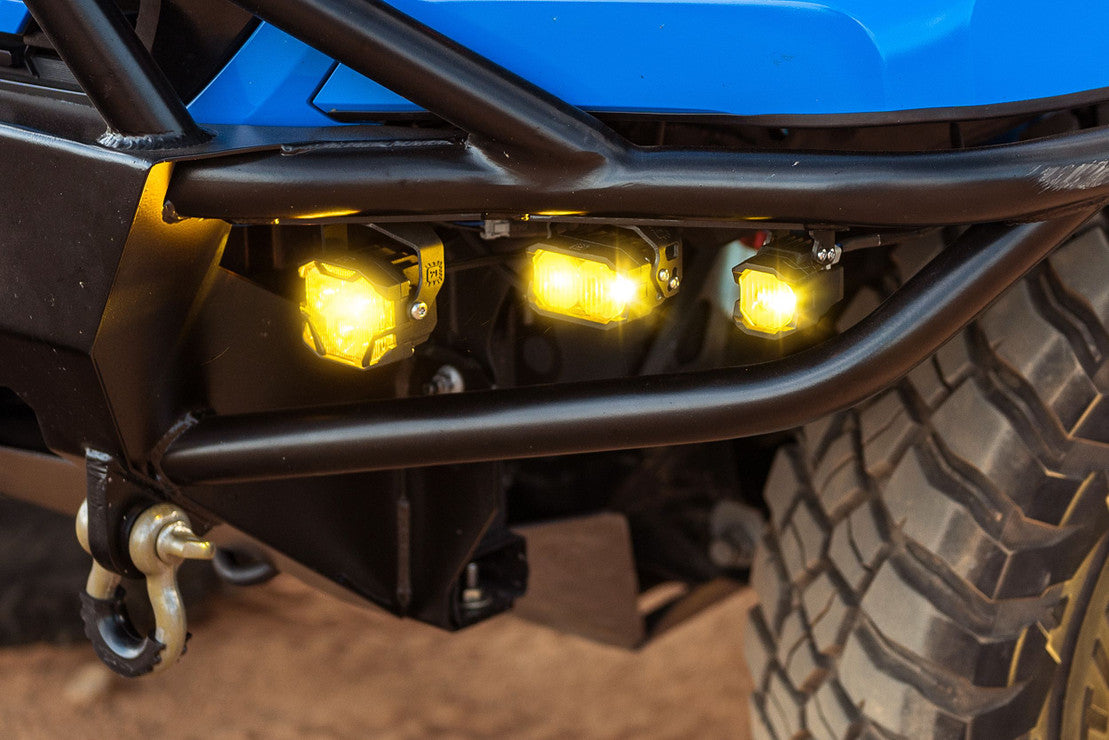

ALL WEATHER: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather)

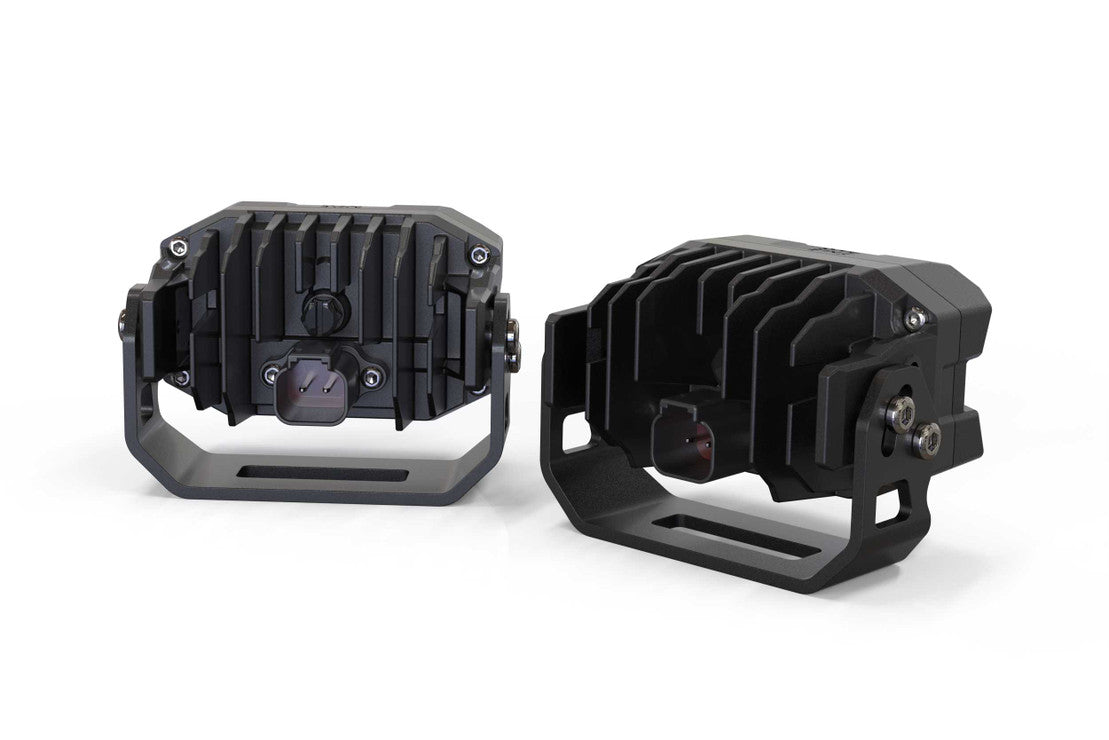

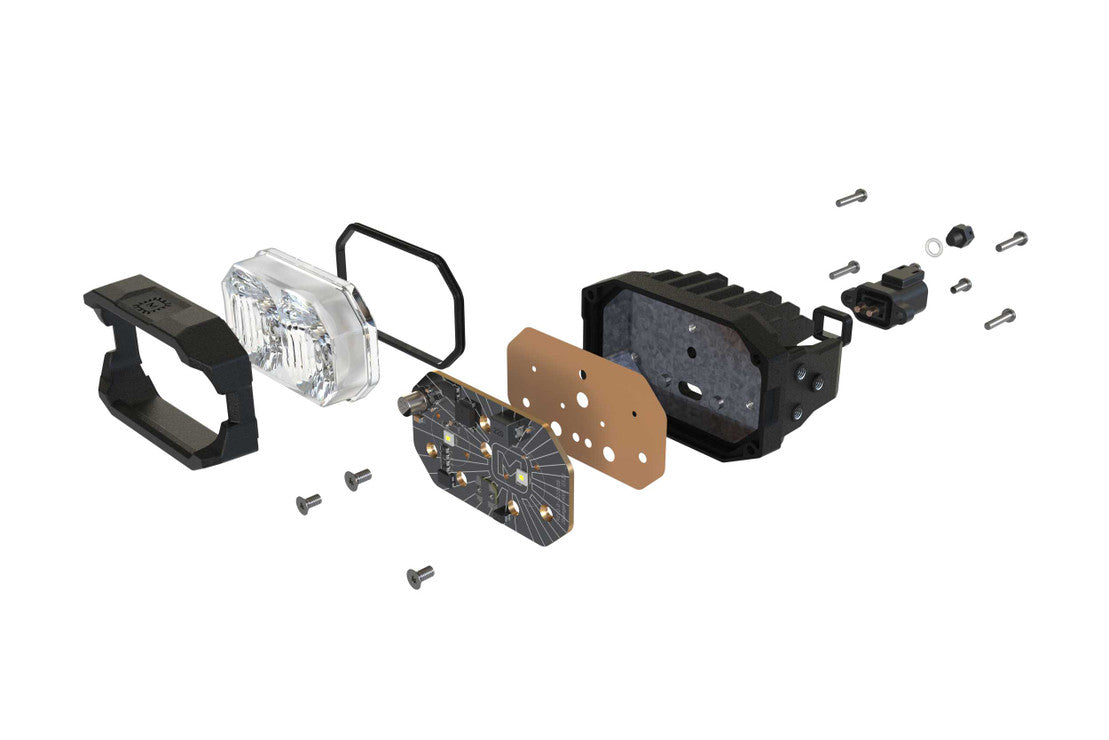

RELIABILITY: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 2Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance.
STREET LEGALITY: When aimed properly, the Spot and Combo beam patterns will comply with SAE J581 standards for an auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, the 2Banger wide beam model has been verified compliant with the latest SAE-F regulation for on road use by Calcoast Labs in California.

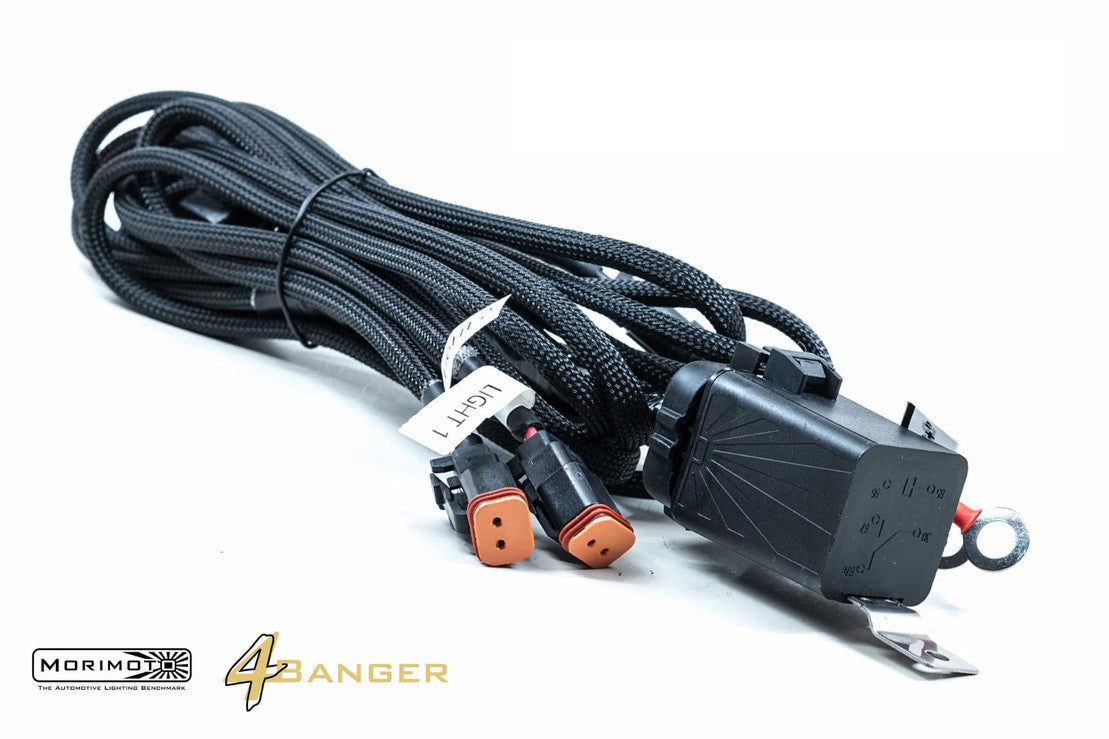

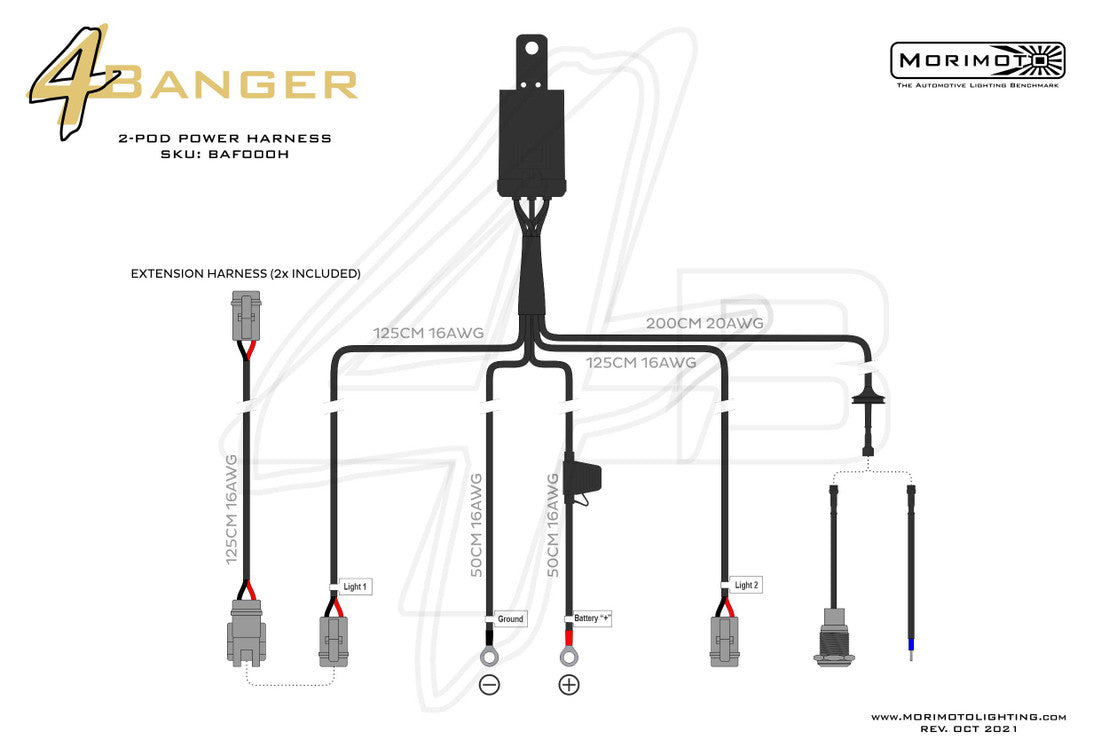

POWER UP: The Morimoto 2Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
UNIVERSAL: With Included U Brackets
FORD F150: 15-20 with BAF013 and BAF038
FORD F150: 07-14 with BAF020 and BAF037
FORD RAPTOR: 17-20 with BAF024 and BAF038
FORD SUPER DUTY: 17-21 with BAF013 and BAF039
FORD SUPER DUTY: 99-16 with BAF021 and BAF040
4RUNNER: 2010+ With BAF014 and BAF027
TACOMA: 05-13 with BAF019 and BAF029
TACOMA: 14-21 with BAF014 and BAF028
TUNDRA: 07-13 with BAF019 and BAF030
TUNDRA: 14-21 with BAF014 and BAF026
SILVERADO/SIERRA: 14-19 with BAF015 and BAF031
SILVERADO/SIERRA: 07-13 with BAF032
COLORADO/CANYON: 15-21 with BAF015
RAM (ALL): 06-08 with BAF045
RAM 1500: 2019+ with BAF016
RAM 1500: 09-18 with BAF018 and BAF033
RAM HD: 09-18:::with BAF017
RAM HD: 2019+ with BAF034
NISSAN TRUCKS: 05-20 with BAF016
SUBARUS (MOST): 10-18 with BAF016
WRANGLER JK: 07-17 with BAF023 and BAF035
WRANGLER JL: 18-21 with BAF036
CHEROKEE: 11-17 with BAF023
COMPLIANCE: Flood beam photometrics are SAE F 20 compliant (NCS Report)
