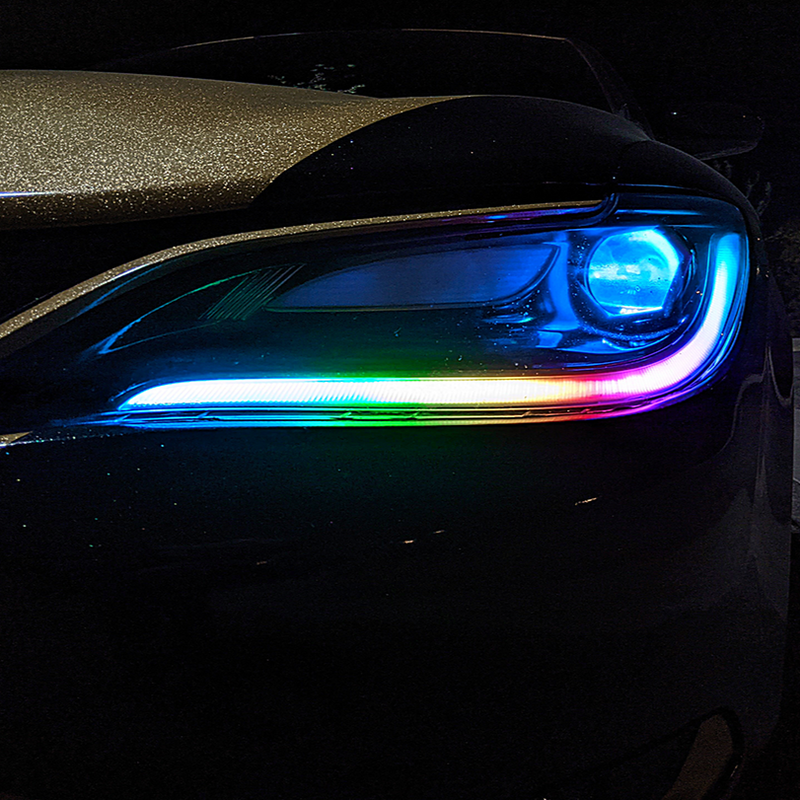

2011-2018 Chrysler 200 Flow Series RGBW LED DRL Tubes

What is a halo or DRL board?

A halo is a circular or ring-shaped LED light, typically used for DRLs or as an accent light. Halos can also be made in other shapes to fit a specific headlight designs. DRL boards are LED circuit boards designed in the same shape as the headlights factory DRL board, but with our color-changing LEDs. this design reduces the modification required when installing color-changing LEDs.

Is this a complete headlight assembly?

No, this is ONLY the halo and/or DRL boards kit that you will install inside of your existing headlights by opening them up and modifying them. If the title and description says halo or DRL kit, it is not a complete headlight assembly. If the title and description says prebuilt headlights or headlight assemblies, then it is the entire light.

What is the difference between Flow Series and RGBW?

Flow Series RGBW LEDs can change to any solid color, pure white, plus hundreds of moving, multicolor, flowing patterns. Sequential turn signal/DRL startup functions are available with most of the bluetooth controller options.

RGBW LEDs can change to any solid color, pure white, plus several flashing/fading patterns. Flashing turn signals come standard with most RGBW products & controllers.

How do I install my halo or DRL kit?

Here is a general installation guide for halos & DRL board kits. For installation guides & videos for your specific vehicle, you can typically find many videos or forum posts for your model by typing "How to install led halo (or) DRL boards for *vehicle year range*make*model*"

How do I wire my halo or DRL kit?

Check out the "Guides" tab on our website for wiring diagrams and instructions. An instruction pamphlet will be included with most orders. Click here for Flow Series wiring. Click here for RGBW wiring. Click here for Blueghozt wiring.

What are halo diffusers?

Halo diffusers are a semi-transparent cover that goes over the halos so you do not see the individual LED dots. They create a smooth, uniform light output for your halos. these are available in select sizes in either a frosted white finish or smoked finish.

What are demon eyes?

Demon eyes are a small LED light that give the headlight projector lens (where the headlight bulb typically shines out) a glowing effect that can change to any solid color. These are typically controlled separately from your halos/DRLs and DO NOT replace your actual headlight bulbs!

What are projector halos?

Projector halos are LED halo rings (typically circular) that go around the projector in your headlights. The projector is the area/piece where your headlight bulb shines out of.

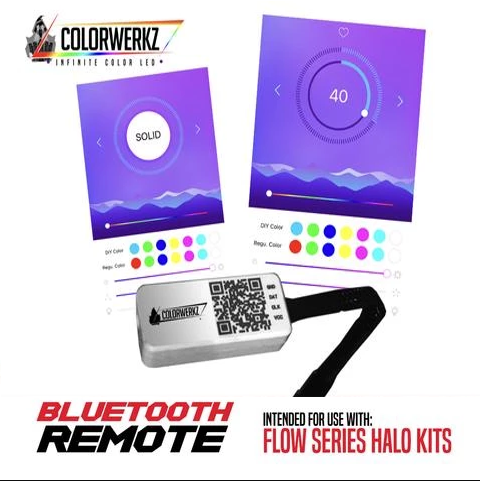

Flow Series & RGBW Bluetooth 2.0 (PRO) Controller

New and improved Flow Series PRO 5V Bluetooth App + OPTIONAL Handheld remote features a redesigned app with brand new features including controller grouping, renaming, favorites, selective connectivity (no unrelated bluetooth devices show up), and a handheld remote so you can quickly control the lights without opening the app! It also has input wires for turn signals, DRL, and brake so your halos/DRLs can mirror those functions. This controller is compatible with all 5V flow series halos, DRLs, and strips that have 3-pin JST connectors.

• Grouping Function: Seamlessly pair multiple controllers together to create distinct lighting zones, ensuring synchronized performance across all connected lights.
• Personalization: Easily save your favorite colors and patterns, tailoring your vehicle's aesthetics to suit your mood or occasion.
• OEM+ Function: Turn signal, DRL, and brake inputs so your halos can mirror OEM functions.
• Renaming Capability: Customize the name of each controller for simple identification, enhancing ease of use within the app.
• Selective Connectivity: The dedicated app is designed to connect exclusively with PRO controllers, avoiding clutter by not displaying other Bluetooth devices in the vicinity.
• Extended Features: Explore a variety of additional functions designed to maximize the utility and enjoyment of your automotive lighting setup.

Compatible with all 5V Flow Series halos, DRLs, and strips with 3-pin JST connectors. The controller has (4) 3-pin barrel connectors, inline fuse, and hooped power + ground connectors. It also has turn signal, DRL, and brake input wires.

Flow Series BlueGhozt Advanced Controller

The BlueGhozt Lite 2.0 bluetooth addressable Flow Series LED controller allows you to create your own customizable addressable LED patterns and show modes, custom start-up/shutdown animations, custom turn signal patterns, NEW reverse light input trigger (create your own pattern/mode when you go into reverse), LED diagnostic, and board layouts. The controller has inputs/triggers for your vehicles startup/shutdown, turn signals, brake lights, and reverse lights. You can also sync multiple BlueGhozt controllers together in the app to control everything together at the same time. The controller uses uses the Blueghozt app on your iOS and Android device and is compatible with ws2811, ws2812b, SK6812, and similar Flow Series RGB/RGBW addressable LEDs (Neopixel/Neoprism). The Blueghozt controller supports both RGB Flow Series and RGBW Flow Series LED types and is compatible with both 5V or 12V versions of addressable LEDs. It provides similar animation capabilities as the original Ghozt module.

In order to signal the lights to perform the startup/shutdown/turn signal features, you will need to find the vehicles DRL and turn signal wires and tap/splice into them.  ETC.

Features:

• Four 12V inputs, for left turn, right turn, park, and brake
•  Controls two chains of addressable LEDs up to 350 each! (260 for RGBW Flow)
•  Fully configurable through Bluetooth with our iOS/Android app!
•  New features delivered over the air through our app updates!
•  Sequential turn signals
•  F1-style braking
•  Parking/running lights
• Reverse lights
•  Show modes triggered via Bluetooth
•  One module controls two turn signals
•  Unlimited fully customize-able show modes can be saved with the app
•  Adjustable turn signal timing to car’s flasher unit
•  Very low power drain while in operation, sleep mode when idle
•  Small form factor
•  Includes a protective plastic housing

Why choose AutoLEDTech?

AutoLEDTech was one of the first companies in the US to offer Flow Series LEDs in 2016. Over the years, we have added more than 600 products to our lineup from only the highest quality manufacturers, with over 12,000 customers served and counting!

Do your products have a warranty?

All of our products include an industry standard 1 year warranty, though some products from manufacturers like Diode Dynamics and Morimoto include a 5-8 year warranty.

What is the difference between Flow Series and RGBW?

Flow Series LEDs can change to any solid color, pure white, plus hundreds of moving, multicolor, flowing patterns. Sequential turn signal/DRL startup functions are available with most of the bluetooth controller options.

RGBW LEDs can change to any solid color, pure white, plus several flashing/fading patterns. Flashing turn signals come standard with most RGBW products & controllers.

How can I contact you with questions about products or my order?

The quickest way to get in touch with us is to use the "Expert Help" tab where we will reply within 24 hours about product questions, order inquiries, warranty requests, or anything else!

Where do your products ship from?

All of our products ship from the USA. Most products ship from our warehouse in Panama City Beach, FL though some select products ship directly from manufacturers or warehouses in Georgia, New Jersey, or Arizona in order to keep your shipping costs and delivery times LOW!

How long does shipping take?

Most in stock items ship within 1-2 business days. Transit times tend to be an average of 3-5 days.

Lead times for custom items, such as headlights, steering wheels, etc are as follows:

Grill Light Bars: 3-5 business days

Custom Steering Wheels: 5-8 weeks

Custom Headlights: 8-10 weeks (Can be longer or shorter depending on model)

How do I track my order?

 As soon as your order ships, you will receive an email with the related tracking number and link. You can also login to your customer account or SHOP app account to check order status (Confirmed, Shipped, In Transit, Delivered).

What is your return/cancellation policy?

We accept returns on most products within 30 days. See our detailed return/cancelation policy on our FAQ page.

How long will my steering wheel take to build?

The typical lead/build time for our custom steering wheels is around 6 weeks. However, steering wheels with rather simple options and selections can be completed in as little as 4 weeks. More intricate builds with specialized forged carbon, custom logos & designs, heat, carbon paddles, etc can take up to 10 weeks due to the complicated nature of the specific project and our current workload. (4-10 Week ETA)

Will you contact me to confirm my build details?

Once we receive your order, one of our steering wheel experts will look over the provided selections, identify any questions or clarifications for your build, then email you with the full details listed out with any questions we may have. Once you are satisfied with the build sheet, we will confirm your steering wheel selections and add it to our build schedule.

Will I receive updates during the build process?

Typically we do not provide periodic updates until your wheel is nearing completion, around weeks 5-6. Once it is completed, we will be sure to send you photos to ensure the wheel is up to your specifications. From that point, it is typically one more week until the wheel has completely cured and is ready to ship out to you.

Can I makes changes to my steering wheel after I have confirmed it?

If it is within 1-2 week of confirming your selections, we MAY be able to make minor changes if needed. From that point, the wheel is likely in production and making changes may require additional costs to redo certain selections and will delay the final delivery date of your wheel. We ask that you try your best to be certain of your selections!
