6 Output Power Harness For 4Banger LED Pods and Fog Light Kits
Couldn't load pickup availability
Product Description

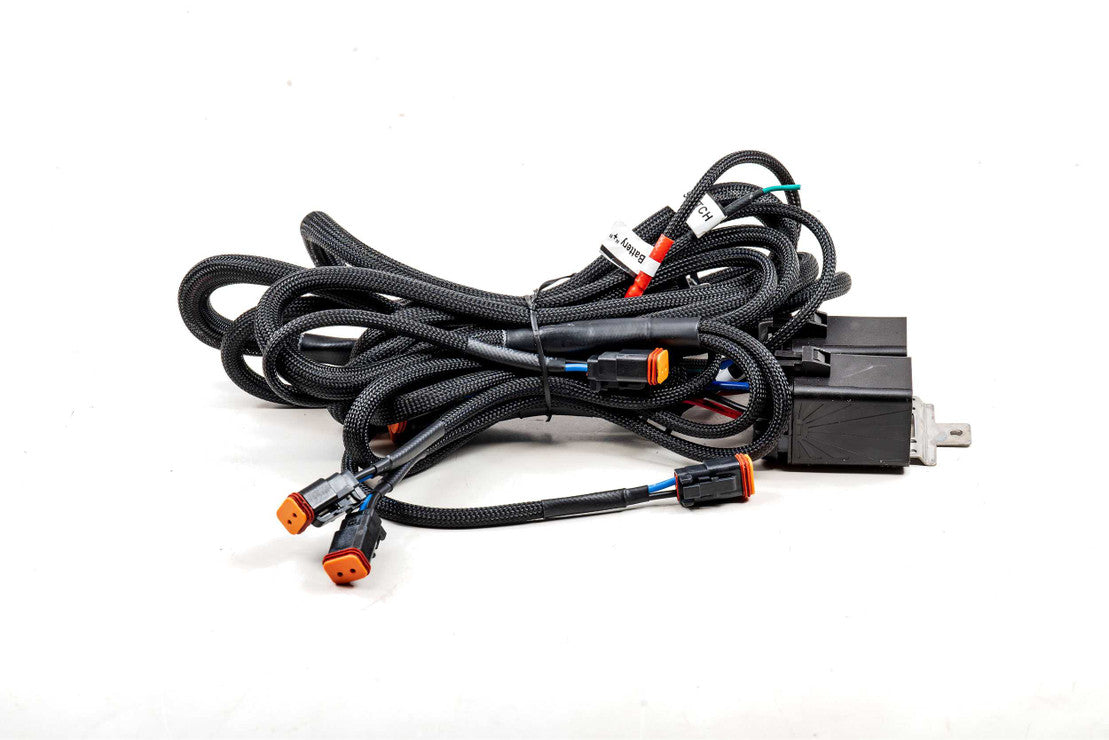

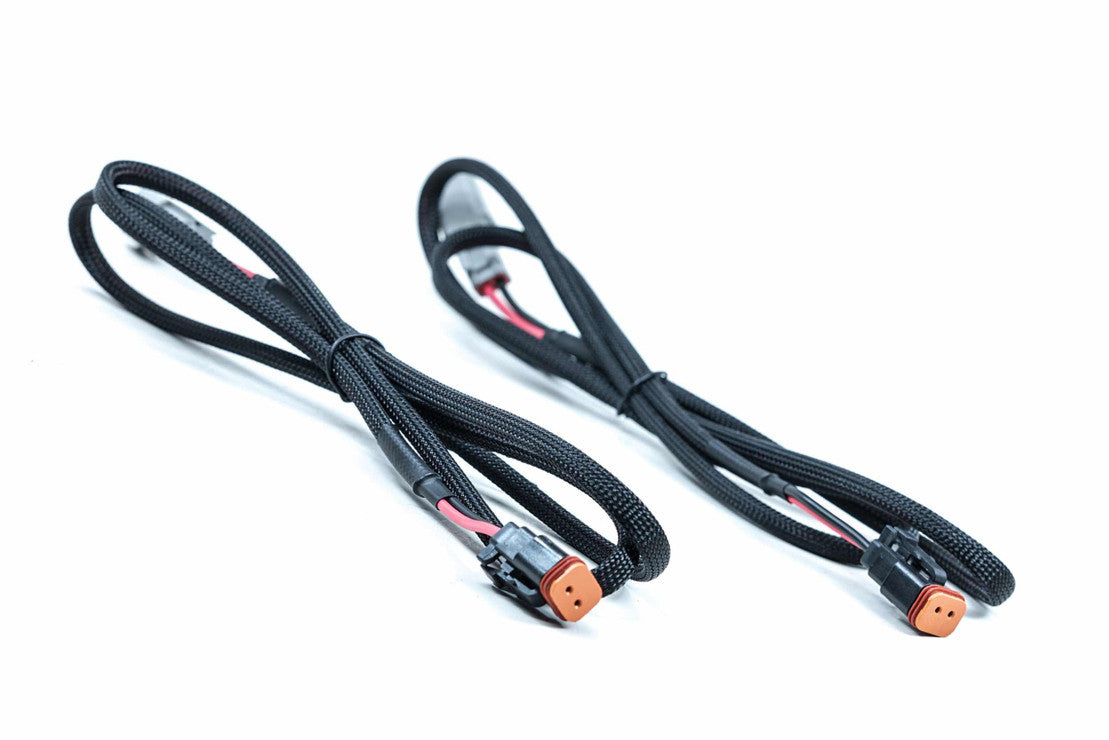

AutoLEDTech.com's triple pair output (6 LED pods total) power relay wiring harness designed to be used with our 4Banger Fog Light kits, 4Banger LED Pod kits, and any other LED pods or light bar with Deutsch power connectors. This LED pod wiring harness is extremely well designed and includes everything you would ever need! Featuring dual relays to ensure all 6 LED pods are properly powered, (6) plug & play Deutsch connections, hooped 12v+ and ground power connectors, inline fuse, detachable power switch with indicator light that can be removed to swap with a single trigger wire for use with rocker/upfitter switches or any other switch signal, plus plug & play extensions, all wrapped in durable wiring sleeves. Morimoto truly thought of everything when designing these wiring harnesses.
Order Includes:
- HARNESS: 1x Morimoto OffRoad 6-Pod Power Harness
- SWITCH (NONE): Controlled by Vehicle Auxiliary Switch
Compatible With:
- LED PODS: All with DT 2-Pin Input
- POD QUANTITY: Six
- A-PILLAR SETUPS: Yes
- UNIVERSAL MOUNT SETUPS: Yes
- FOG LIGHT SETUPS: Yes
Tech Specs:

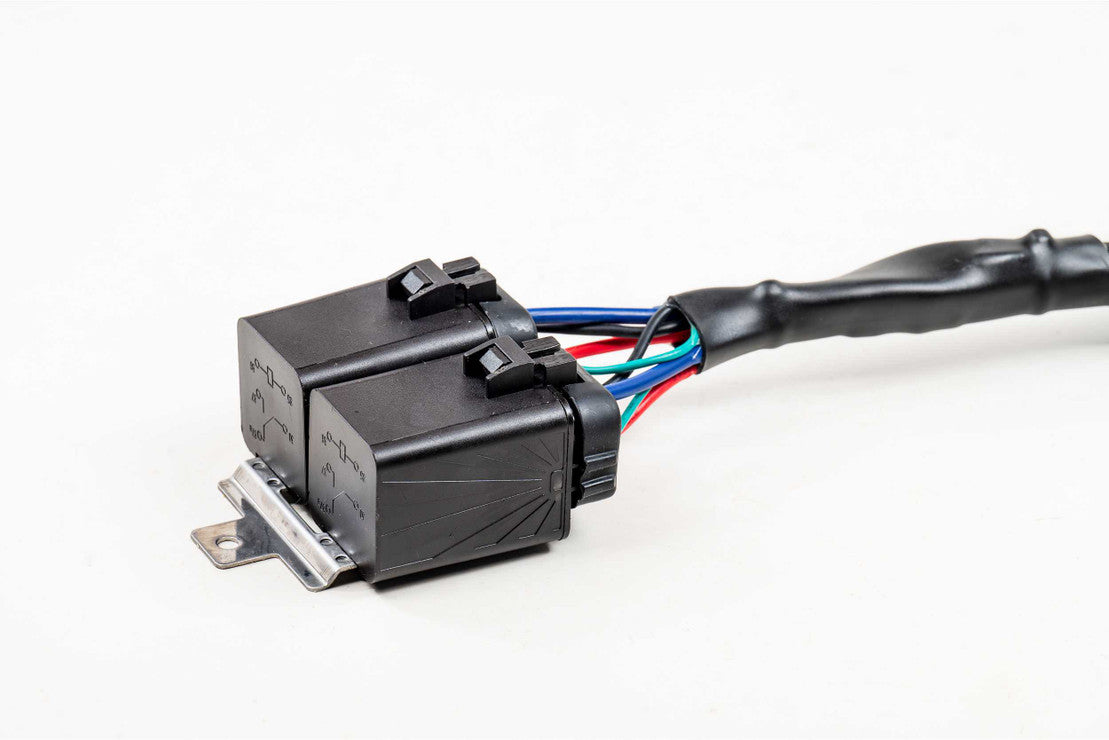

- RELAY: 2x Triple Sealed 40A M-Spec (2x)

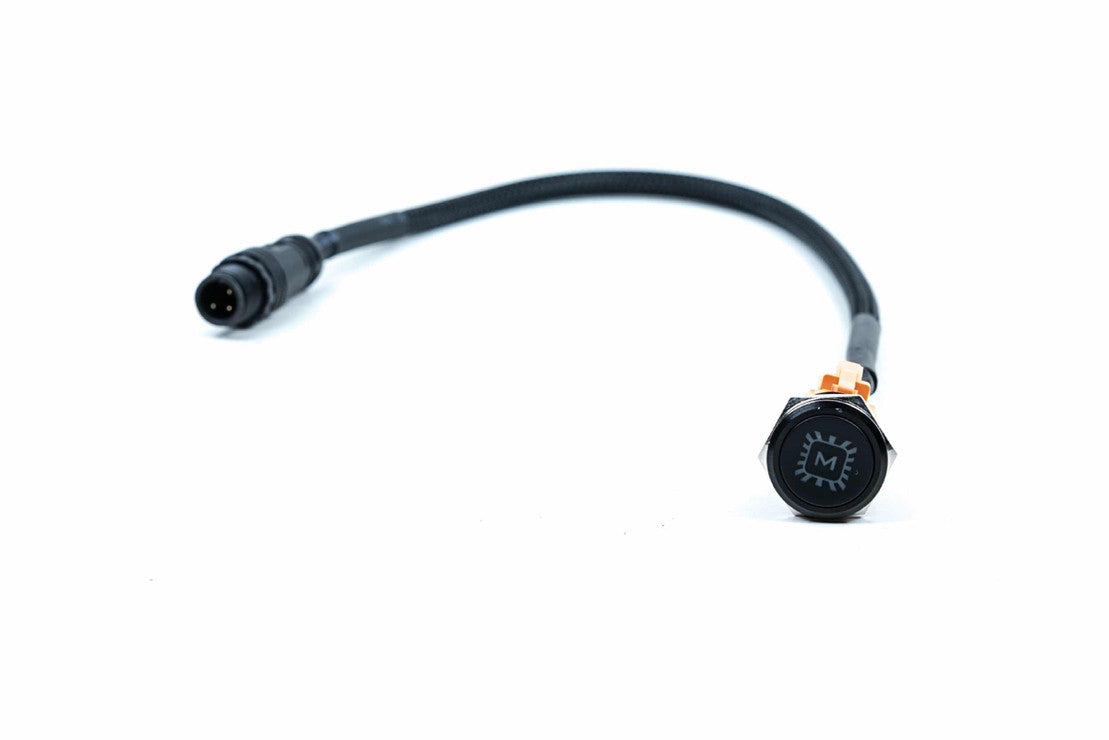

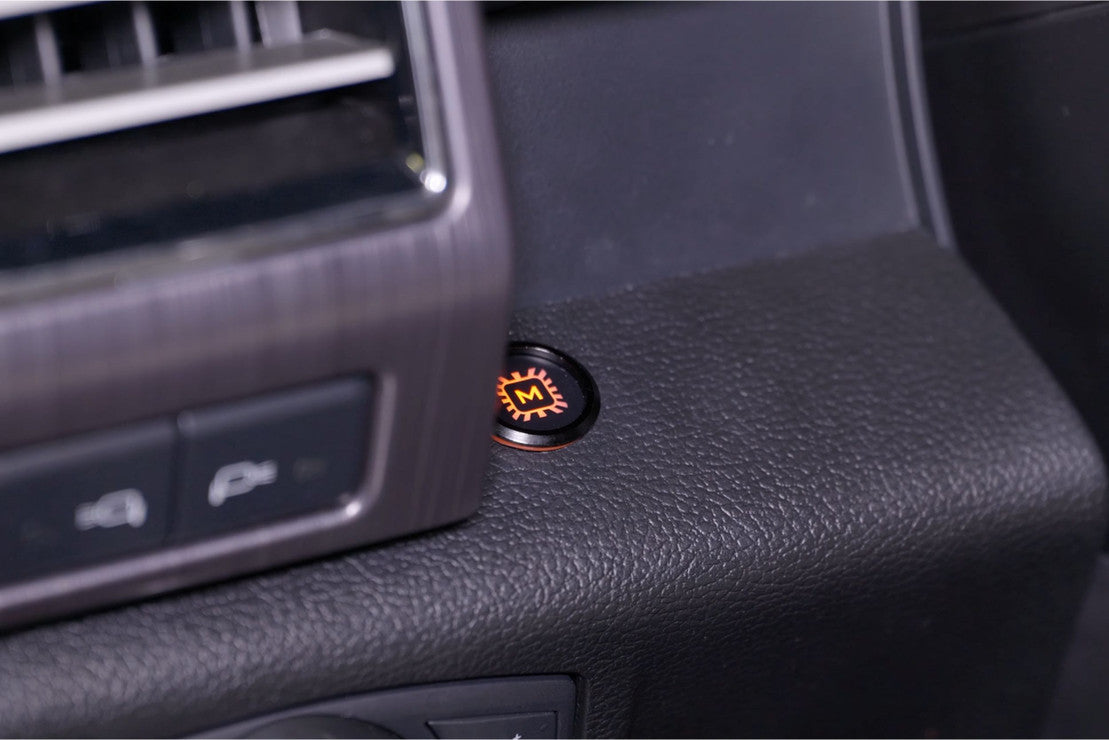

- SWITCH: Normally off M-Spec w/ Yellow backlight

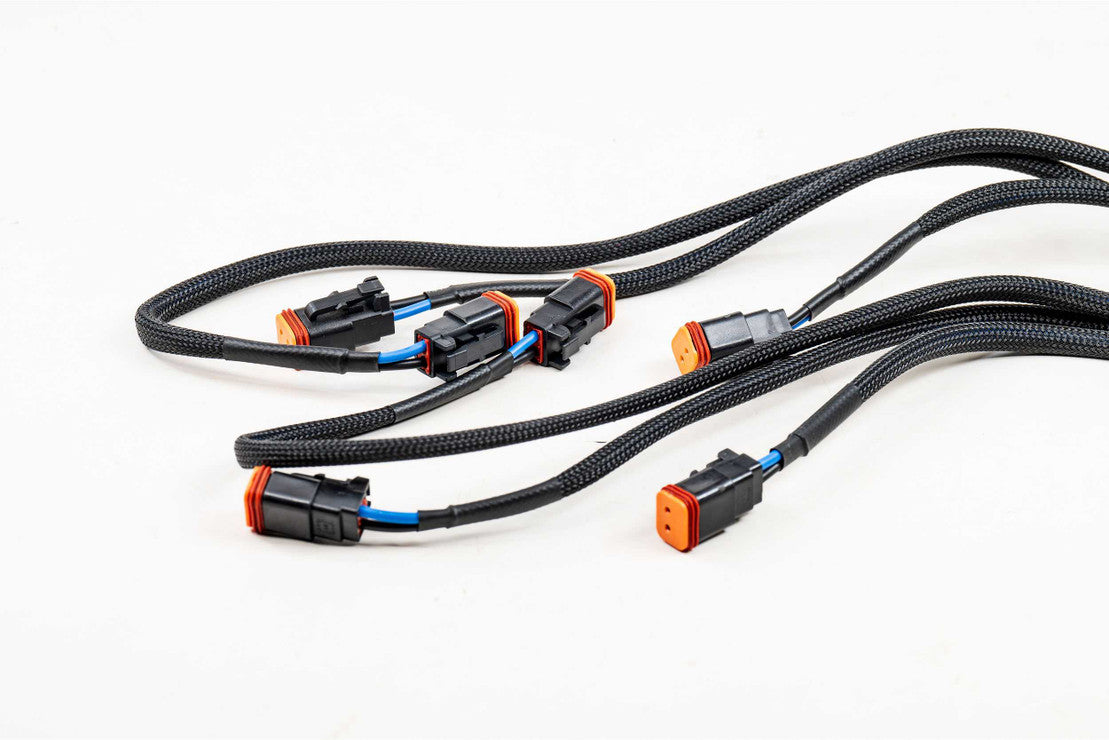

- OUTPUTS: 6x DT06-2 Pin
- OUTPUT WIRING: Insulated 12 AWG Copper

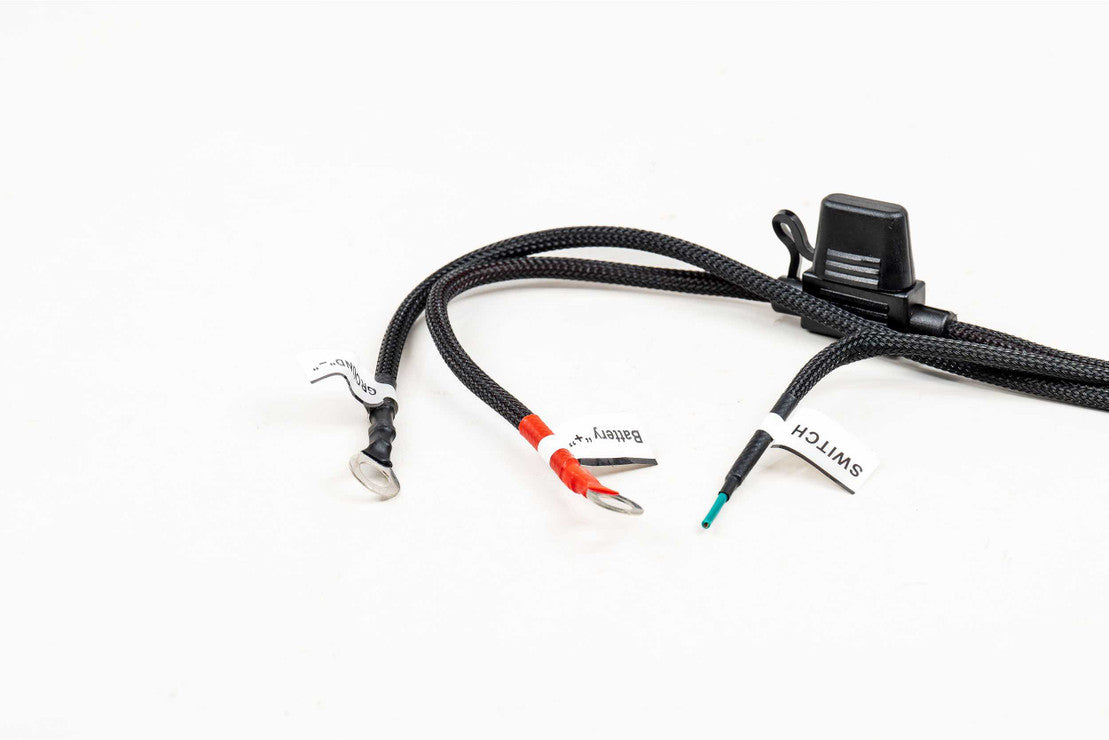

- INPUTS: 12V+/- Ring Terminals
- INPUT WIRING: Insulated 10 AWG Copper
- POWER: Up to 5A Per Output
Triple Output Power Harness For 4Banger LED Pods and Fog Light Kits Video Demonstration:
Video Demo (Starts at 1:22):
Product Information:
POWER UP: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the wiring. If you want the best, bingo. If you want cheap, you'll want to look for an alternative (and sadly, that wont be hard to find -- because until now, everybody has overlooked the importance of quality cables).

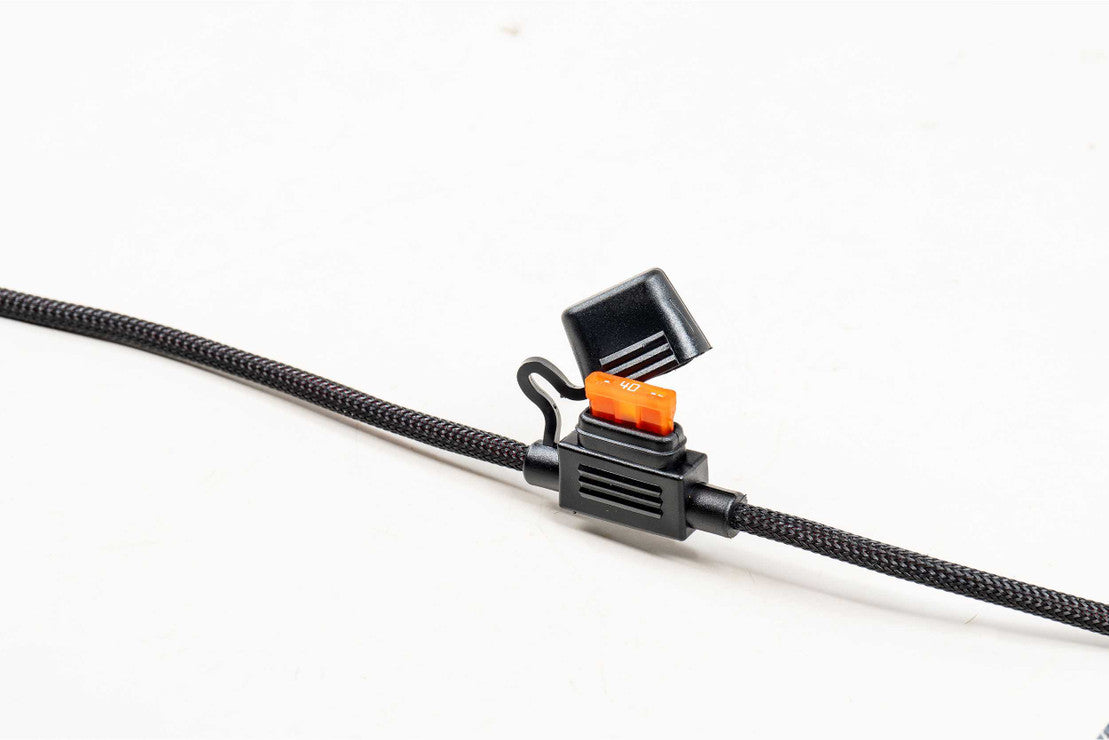

OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relays with dual-hanger. Proprietary over-molded inline fuse holder with 40A ATO fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
PROPER: All wiring is properly sized and relays rated for flicker-free, reliable power delivery for up to six off road lights. Every line of the beefy 10 AWG copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness will fall apart before this thing.

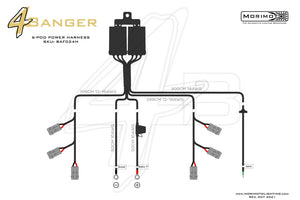

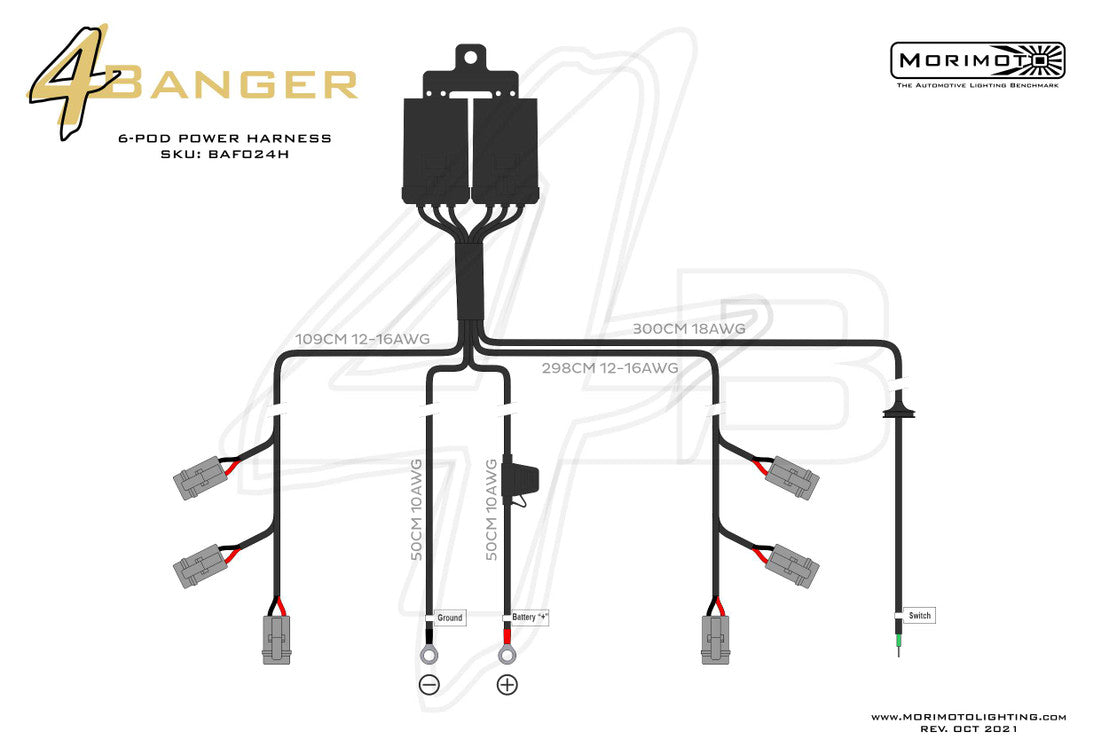

PLUG N PLAY: The connections on the harness have been laid out in a logical way to power up to three LED pods on each side of your vehicle. There are six total Deutsch outputs. A positive battery terminal, and ground terminal, and a switch. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall.
COMPATIBLE: While this harness is a perfect match for the Morimoto 4Banger LED pods on the 16-21 Ford Raptor, you can make good use of it with any other off-road lighting setup that takes a DT-style two-pin input (which is basically the industry standard).
